How TFT LCD Technology Works: Inside The Thin Film Transistor Display

Introduction: The Engine Behind Modern Displays

From smartphones and tablets to car dashboards and industrial monitors, TFT LCD displays are everywhere. They have become the standard in display technology thanks to their reliability, performance, and cost-effectiveness.

But what exactly makes a TFT LCD work? Understanding its inner mechanism helps buyers and engineers make smarter decisions when selecting a display module for their product.

The Structure of a TFT LCD Display

A TFT LCD is a multi-layered optical and electronic system, combining liquid crystals, transistors, and backlighting to produce images.

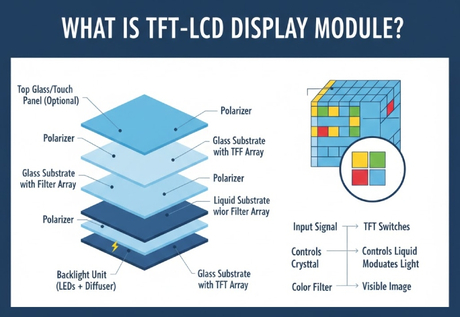

It typically consists of the following layers (from bottom to top):

1. Backlight Unit (BLU) – Provides white light behind the panel.

2. Polarizers – Ensure that light passes through in a specific orientation.

3. TFT Glass Substrate – Contains millions of transistors controlling each pixel.

4. Liquid Crystal Layer – Modulates light based on electrical signals.

5. Color Filter – Divides each pixel into red, green, and blue sub-pixels.

6. Top Polarizer & Protective Layer – Finalizes the light direction and protects the surface.

Together, these layers create the colorful and vivid images we see on every TFT LCD screen.

How the TFT LCD Works Step by Step

1. Backlight Generation
   Every TFT LCD needs a light source. The backlight (usually white LEDs) produces uniform light across the screen.

2. Light Polarization
   The first polarizer filters the light so it oscillates in a single direction — an essential step for liquid crystal modulation.

3. Pixel Activation
   Each pixel on the screen has its own thin-film transistor (TFT). When voltage is applied, the transistor controls the orientation of the liquid crystal molecules in that specific pixel.

4. Light Modulation by Liquid Crystals
   The twisted liquid crystals either block or allow light to pass through, depending on the voltage level.

5. Color Formation
   Light passes through red, green, and blue sub-pixels (controlled by three transistors) to form full-color images. Adjusting the voltage for each sub-pixel changes the intensity of its color.

6. Final Output
   The top polarizer ensures that only correctly aligned light escapes — forming the visible image you see on the display.

Why Use Thin Film Transistors?

The TFT layer is what gives TFT LCDs their name — and their key advantage.

• Each pixel is actively controlled by its own transistor.

• This means faster response time, less image ghosting, and sharper visuals.

• Compared to older passive matrix LCDs, TFT technology allows higher resolutions and smoother refresh rates.

In short, TFT = Active Control = Better Performance.

TFT LCD Driving Methods

Different interface types determine how signals are delivered to the display:

• RGB Interface – Direct parallel data transmission; used in small- to medium-sized displays.

• LVDS (Low-Voltage Differential Signaling) – Common in laptops and automotive displays; allows high-speed, noise-resistant transmission.

• MIPI DSI (Mobile Industry Processor Interface) – Compact, efficient interface widely used in smartphones and tablets.

Choosing the right interface ensures compatibility between the display module and the main board (MCU/MPU).

Advantages of TFT LCD Technology

✅ High Image Quality – Excellent color accuracy and brightness.
✅ Fast Response Time – Ideal for motion graphics and video playback.
✅ Compact and Lightweight – Thin structure suitable for portable devices.
✅ Stable and Reliable – Works consistently across wide temperature ranges.
✅ Cost-Effective – Mature manufacturing and supply chain make TFT LCDs affordable for most industries.

Limitations to Consider

While TFT LCDs are highly reliable, they do have some limitations:

• Limited Viewing Angle (unless using IPS or VA technology).

• Requires Backlight Power, consuming more energy than OLED.

• Contrast Ratio is lower compared to self-emissive displays.

Many of these issues are addressed in IPS TFT and High-Brightness TFT technologies.

Applications Across Industries

Future Developments in TFT Displays

TFT technology continues to evolve with:

• Advanced Backlighting (Mini-LED, local dimming)

• Flexible TFT substrates for curved or foldable designs

• Improved color filters and polarizers for better outdoor visibility

• Low-power TFTs optimized for IoT and wearable devices

The ongoing innovation keeps TFT displays relevant even as new display types emerge.

Conclusion

The TFT LCD is the perfect balance of performance, reliability, and cost.
By understanding how it works — from transistor control to color formation — buyers and engineers can make better choices for their products.

Whether you need displays for industrial, automotive, or medical applications, TFT LCD technology remains a proven and versatile option.
