When selecting a display for industrial equipment, two common options are IPS TFT LCD and TN TFT LCD.
Both technologies are based on thin-film transistor (TFT) LCD structures, but they differ significantly in viewing angle, color stability, cost, and application suitability.
For most modern industrial devices, IPS displays are often preferred, but TN panels still have advantages in specific scenarios.
Understanding the differences helps OEMs choose the right technology for their products.

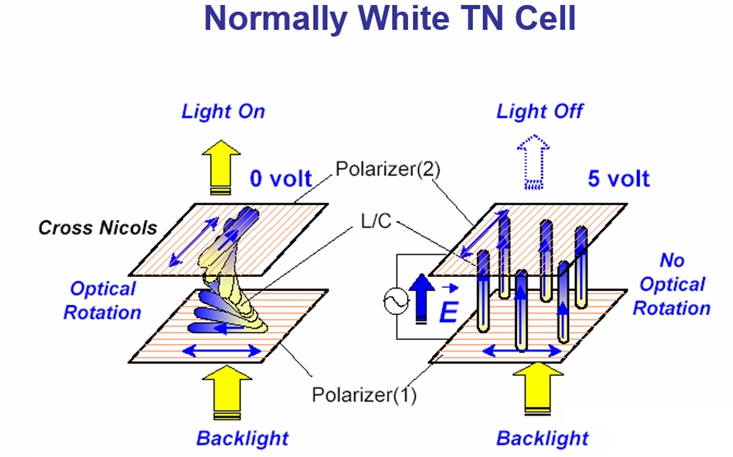

A TN (Twisted Nematic) TFT LCD is one of the earliest and most widely used LCD technologies.
Fast response time
Lower manufacturing cost
Simple panel structure
Limited viewing angles
Because of their lower cost and mature production, TN panels remain common in entry-level industrial devices.
An IPS (In-Plane Switching) TFT LCD improves the traditional LCD structure by rotating liquid crystals horizontally rather than vertically.
Wide viewing angles
Better color consistency
Reduced color shift
Improved visual stability
These features make IPS panels increasingly popular in modern industrial equipment.
Feature | TN TFT LCD | IPS TFT LCD |
|---|---|---|
Viewing Angle | Narrow (45°–70°) | Wide (160°–178°) |
Color Accuracy | Moderate | High |
Color Shift | Noticeable | Minimal |
Response Time | Very fast | Fast |
Cost | Lower | Slightly higher |
Power Consumption | Slightly lower | Moderate |
While TN displays remain cost-effective, IPS panels deliver a significantly better viewing experience.
Viewing angle is often a critical factor in industrial environments.
TN displays may suffer from:
Color inversion
Darkening when viewed from above
Washed-out colors from the side
This can be problematic when equipment is viewed from different positions.
IPS displays maintain image clarity from multiple angles, which is important for:
Industrial control panels
Factory monitoring systems
Medical equipment
POS terminals
Operators can view the screen clearly without standing directly in front of it.
Industrial interfaces increasingly rely on graphical UI elements.
Examples include:
Charts and data visualization
Color-coded warnings
Status indicators
IPS panels maintain more consistent colors across the screen, ensuring better readability.
Both IPS and TN TFT LCD displays can be designed for industrial reliability.
Typical industrial features include:
Extended operating temperature
Anti-glare surface treatment
High-brightness backlight
Long backlight lifespan
From a durability standpoint, the difference between IPS and TN is generally minimal.
TN panels usually cost less than IPS panels.
However, the cost gap has decreased significantly in recent years.
For many OEM projects, the price difference may be small compared with benefits like:
Improved usability
Better product appearance
Reduced operator errors
For this reason, many new industrial devices now adopt IPS displays.
TN displays may still be suitable when:
✔ The display is viewed from a fixed angle
✔ Cost is extremely sensitive
✔ The interface uses simple graphics
✔ Response time is critical
Typical examples include:
Small embedded control panels
Basic instrumentation
Simple monitoring devices
IPS displays are often preferred when:
✔ Multiple users view the screen
✔ Wide viewing angles are required
✔ The interface uses complex graphics
✔ The product targets a premium market
Common applications include:
Industrial automation systems
Medical devices
Smart control panels
Retail and POS equipment
Over the past decade, IPS technology has become more accessible and cost-effective.
As a result, many industrial equipment manufacturers are shifting from TN to IPS displays to improve user experience and product competitiveness.
Both IPS TFT LCD and TN TFT LCD displays have their place in industrial applications.
TN displays remain a practical choice for cost-sensitive or fixed-angle systems.
IPS displays provide better viewing angles, color consistency, and overall visual quality.
For most modern industrial devices, IPS panels are becoming the preferred option due to their improved usability and increasingly competitive pricing.
