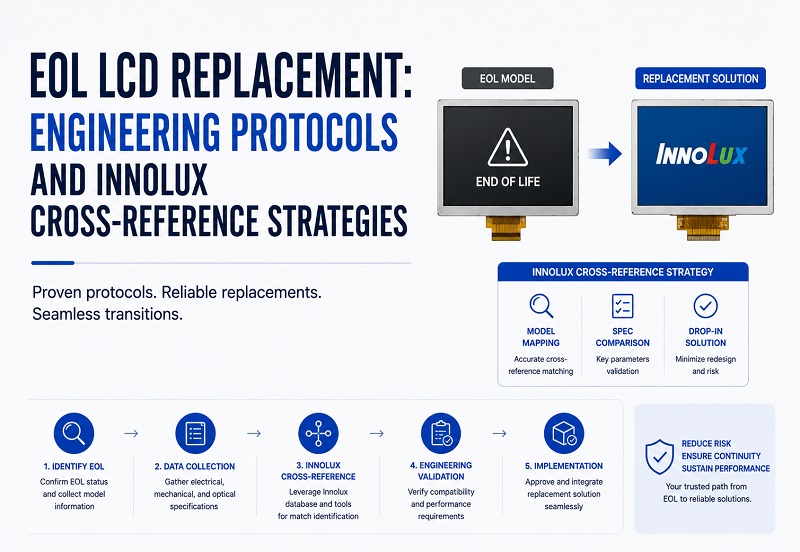

EOL LCD Replacement: Engineering Protocols and Innolux Cross-Reference Strategies

When an industrial or medical display module reaches End-of-Life (EOL), system integrators must secure a drop-in replacement or a hardware-compatible alternative to prevent production line stoppages. Sourcing an authorized a-Si TFT-LCD module with matched physical, electrical, and optical tolerances ensures continuous device availability without requiring full enclosure re-engineering. This guide establishes the specific technical baselines for executing an Innolux cross reference migration when legacy models face component obsolescence.

1. Dimensional and Electrical Parameter Alignment

Swapping an obsolete panel requires checking more than just the diagonal screen size. R&D engineers must verify three primary integration vectors to prevent mechanical conflict or logic board damage.

• Mechanical Outline Tolerances: The outer dimensions (Width × Height × Depth) must match within ±0.2mm to fit existing front bezels. More importantly, the Active Area dimensions and screw-hole positions must align perfectly to prevent chassis modification.

• Pin-out and Logic Level Concordance: Legacy panels utilizing 20-pin or 30-pin configurations must match the power rails (Vdd or Vcc) of the host board. Voltage mismatches (e.g., applying 5.0V to a 3.3V logic circuit) will cause driver IC burnout.

• Backlight Driver Metrics: Check the forward voltage VF and constant current requirements IF of the LED backlight string. If the replacement module requires a higher driving current, the integrated inverter on the mainboard will overheat, reducing Backlight life below its rated 30,000-hour or 50,000-hour threshold.

2. Innolux Cross-Reference and Replacement Matrices

When popular legacy modules go out of production, newer revisions or close-matching industrial modules serve as direct substitutes. Below is an engineering comparison matrix for typical industrial form factors.

Industrial EOL Cross-Reference Specifications

3. Signal Interface Conversion Protocols for Legacy Hosts

If an exact EOL LCD replacement is unavailable with the native interface protocol, hardware developers must implement a signal conversion adapter layer.

• TTL to LVDS Conversion: Older 8-bit or 6-bit parallel TTL interfaces are frequently replaced by more modern LVDS interface systems. This transition requires an onboard serializer IC (such as the THine or TI SN75LVDS83A) to compress parallel lines down to low-voltage differential pairs, mitigating Electromagnetic Interference (EMI) across extended ribbon cables.

• LVDS to MIPI DSI Bridging: For modern upgrades where the replacement panel accepts only MIPI signaling, a hardware bridge chip (e.g., Toshiba TC358778) must be integrated into the drive kit assembly.

• Timing Controller (TCON) Alignment: Ensure that the pixel clock frequency CLK, horizontal synchronous signal (Hsync), and vertical synchronous signal (Vsync) generated by the legacy controller fall within the operating window of the new panel's firmware.

Semantic FAQ

Q1: How can I guarantee long-term component availability for a new replacement panel?

When choosing a replacement model, select panels from the industrial line rather than consumer lines. Industrial components include a manufacturer guarantee of 5 to 7 years of stable production, preventing another EOL cycle within the product lifespan.

Q2: Will a replacement panel with higher brightness (nits) affect my existing system power supply?

Yes. Increasing brightness from 300 nits to 1,000 nits for outdoor readability increases the LED backlight current draw. Check that your power rail can handle the extra wattage without dropping voltage to the main logic board.

Q3: What documentation is required to initiate an Innolux cross-reference lookup?

Provide the complete manufacturer part number of the obsolete display, along with its specific hardware revision suffix. If available, sharing the original PDF pinout datasheet speeds up the matching process for mechanical footprints and electrical timings.
