ZJ035BF-01C
Innolux

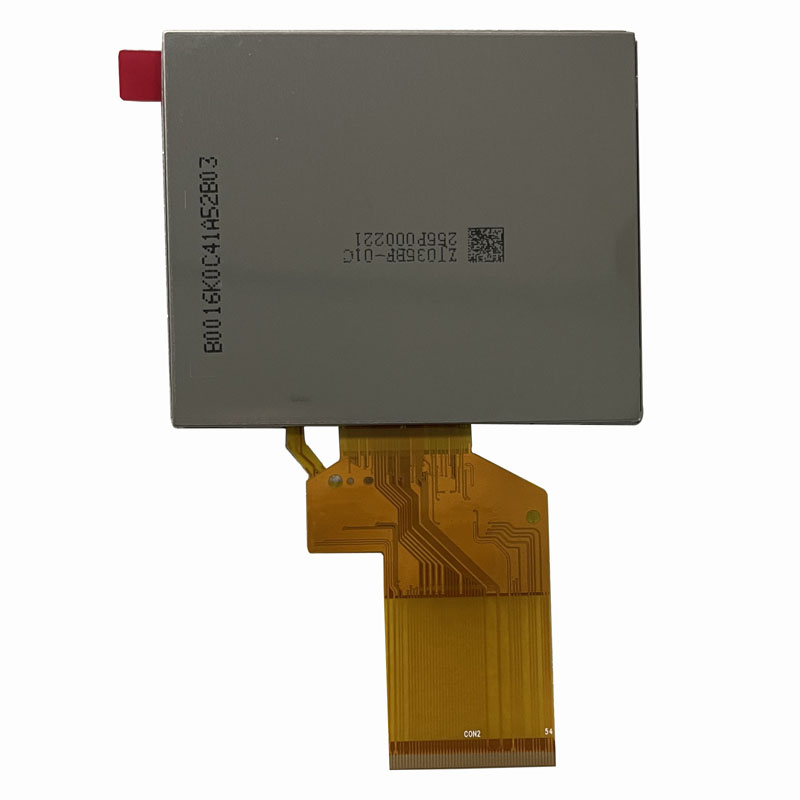

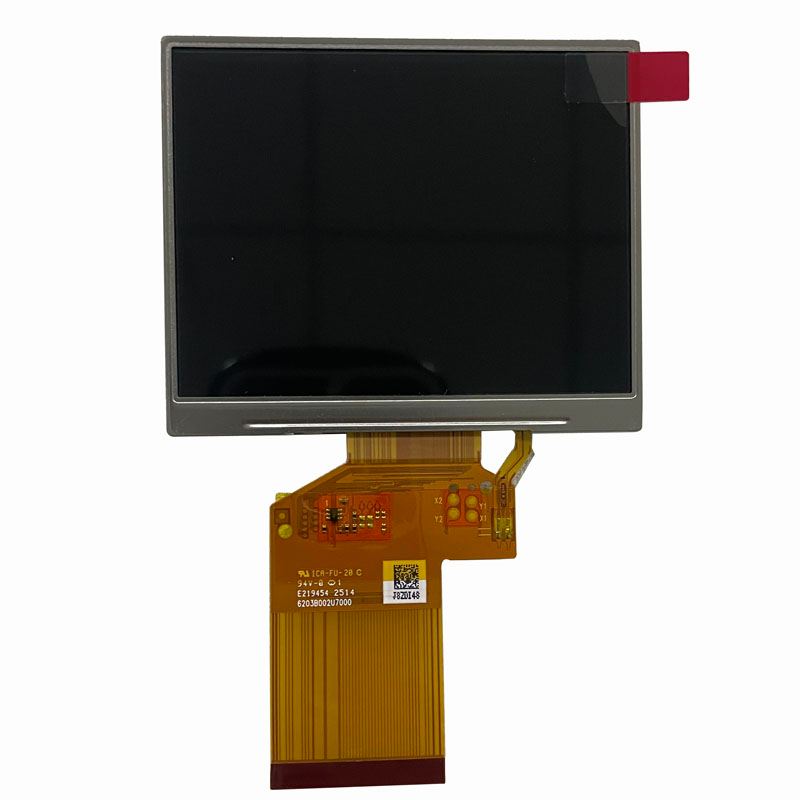

The Innolux ZJ035BF-01C is a 3.5-inch IPS type TFT LCD module designed for industrial, embedded and commercial applications. With a resolution of 320×240 (RGB) and typical brightness around 450 cd/m², this module provides reliable display performance for devices requiring compact size and solid visual clarity.
As a trusted industrial display module supplier, we support B2B procurement of bulk quantities, sample orders and customization services.
Compact 3.5-inch size, ideal for handheld devices, embedded interfaces and instrumentation.
QVGA resolution (320×240) ensures efficient pixel use and simplified driver integration.
IPS or wide-angle TFT panel technology delivers better viewing angles and color stability, helping reduce visual distortion in varied mounting positions.
Balanced brightness (~ 450 cd/m²) suitable for moderate ambient light environments in industrial and commercial settings.
Strong contrast ratio (~ 800:1) enhances readability of text and graphics in UI applications.
Designed for B2B procurement: supports larger order quantities, long-term production planning and customization (e.g., interface, backlight, mechanical mounting).
No. | Item | Specification | Remark |
1 | Screen Size | 3.45(Diagonal) | Inch |
2 | Display Mode | 320 RGB x 240 | Dot |
3 | Active area | 70.08(H) x 52.56(V) | mm |
4 | Dot size | 73x 219 | um |
5 | Pixel Configuration | RGB-Stripe | |
6 | Outline dimension | 76.9(W) x 63.9(H) x 3.26(D) | mm |
7 | Display Mode | Normally Black | |
8 | Surface treatment | Anti-Glare | |
9 | Display Garmut | NTSC 57% | |
10 | Input Interface | Digital Parallel 24-bit RGB/SERIAL 8-bit RGB | |
11 | Weight | 30 | g |
12 | View Angle direction | 6 o’clock | |
13 | Operation Temperature | -30~80 | ℃ |
14 | Storage Temperature | -30~85 | ℃ |
This 3.5-inch QVGA IPS TFT LCD module suits a wide range of B2B applications such as:
Handheld instrumentation and control panels
Embedded devices and industrial monitoring displays
Medical equipment user interfaces
Retail kiosks and POS terminals with compact screens
OEM/ODM projects requiring reliable small-size display modules
We provide sourcing support for procurement professionals: from sample evaluation, to volume supply, to customization and long-term contract manufacturing.
| Item | Details |
|---|---|
| Minimum Order | We support sample orders and scalable bulk procurement |
| Customization | Modify interface, backlight brightness, mounting design |
| Sample Support | Evaluate module performance pre-production |
| Quality Assurance | Each module tested; full documentation provided |
| Technical Support | Engineering help for driver integration & interface |
| Supply Stability | Long-term manufacturing capability for B2B clients |
We aim to be your trusted industrial LCD module supplier, enabling cost-effective, high reliability display solutions for your products.
Looking for a dependable 3.5-inch IPS display module for your project?
✅ Request a sample – Evaluate the ZJ035BF-01C in your application
✅ Get a custom solution – Specify your interface, brightness or mounting needs
✅ Request bulk quotation – Share your desired order quantity and target price
[Download the full datasheet] |
ZJ035BF-01C_Preliminary Product Spec V0.1_20250528.pdf
