EE101IA-01D
Innolux

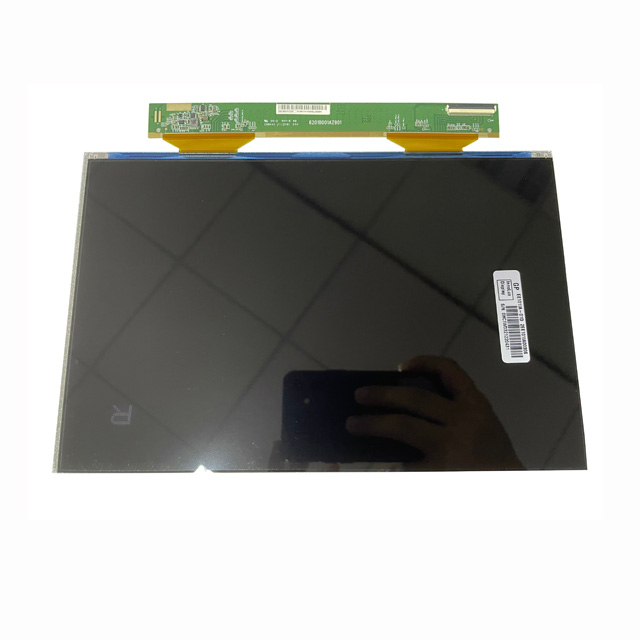

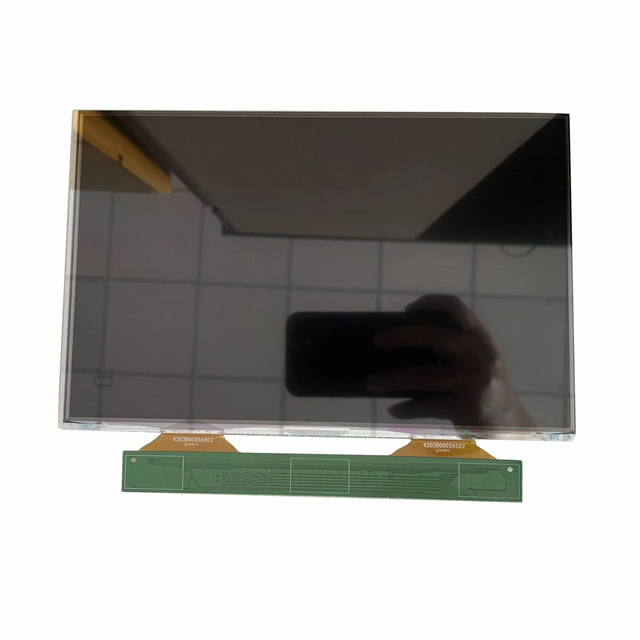

The Innolux EE101IA-01D 10.1-inch TFT LCD cell is a high-quality a-Si IPS LCD panel without backlight, designed for OEM manufacturers and system integrators requiring flexible display integration.
With a 1280 × 800 (WXGA) resolution, 40-pin LVDS interface, and IPS wide viewing angle, this panel delivers excellent image consistency and color stability for embedded applications. Unlike standard display modules, this product is a bare LCD cell (no backlight, no driver board), making it ideal for projects requiring custom backlight systems or ultra-thin display structures.
This panel is widely used in tablet devices, industrial embedded systems, medical displays, and OEM electronic products where customized display integration is required.
WXGA 1280×800 Resolution
The panel delivers high-definition 1280 × 800 resolution, suitable for detailed UI rendering and embedded graphical applications.
IPS Wide Viewing Angle
With 85° viewing angles in all directions, the display ensures consistent color and image quality from multiple viewing positions.
LCD Cell (No Backlight) Design
No LED backlight included
No backlight driver
Ideal for custom backlight integration or ultra-thin designs
40-Pin LVDS Interface
The 1-channel 8-bit LVDS interface ensures stable signal transmission and compatibility with embedded display controllers.
Ultra-Thin & Lightweight Structure
Thickness: approx. 1.07 mm
Weight: approx. 80g
Suitable for compact embedded systems and portable devices.
Industrial Temperature Support
Designed for demanding environments with wide temperature tolerance.
No. | Item | Specification | Remark |
1 | LCD size | 10.1 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 1280 × 3(RGB) × 800 | |
4 | Display mode | Normally black, Trans-missive | |
5 | Dot pitch | 0.0565(W) × 0.1695(H) mm | |
6 | Active area | 216.96(W) × 135.60(H) mm | |
7 | Module size | 223.95(W) ×144.24(H) ×1.07(D) mm | Note 1 |
8 | Surface treatment | HC | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | free | |
11 | Interface | LVDS | |
13 | Panel power consumption | 0.307W(typ) | |
14 | Weight | 80g(Typ.) | |
15 | version | column | |
16 | IC | EK79202 | |
Note 1:Refer to Mechanical Drawing | |||
This 10.1 inch IPS TFT LCD cell is ideal for OEM and industrial integration scenarios:
Tablet display development
Industrial embedded systems
Medical display equipment
Smart control panels
Custom display solutions
Portable electronic devices
Automotive or handheld systems
Because it is a bare LCD cell, it is especially suitable for projects requiring custom backlight design or ultra-thin display modules.
| Feature | Benefit |
|---|---|
| Original Innolux Panel | Stable quality and reliable sourcing |
| LCD Cell Supply | Flexible integration for OEM projects |
| Bulk Order Support | Competitive pricing for volume procurement |
| Custom Solutions | Backlight, touch panel, controller board support |
| Engineering Support | Datasheets and integration guidance |
| Long-Term Availability | Suitable for industrial lifecycle products |
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
EE101IA-01D Final Specification (V15) -20220419.pdf
