AT070TN92
Innolux

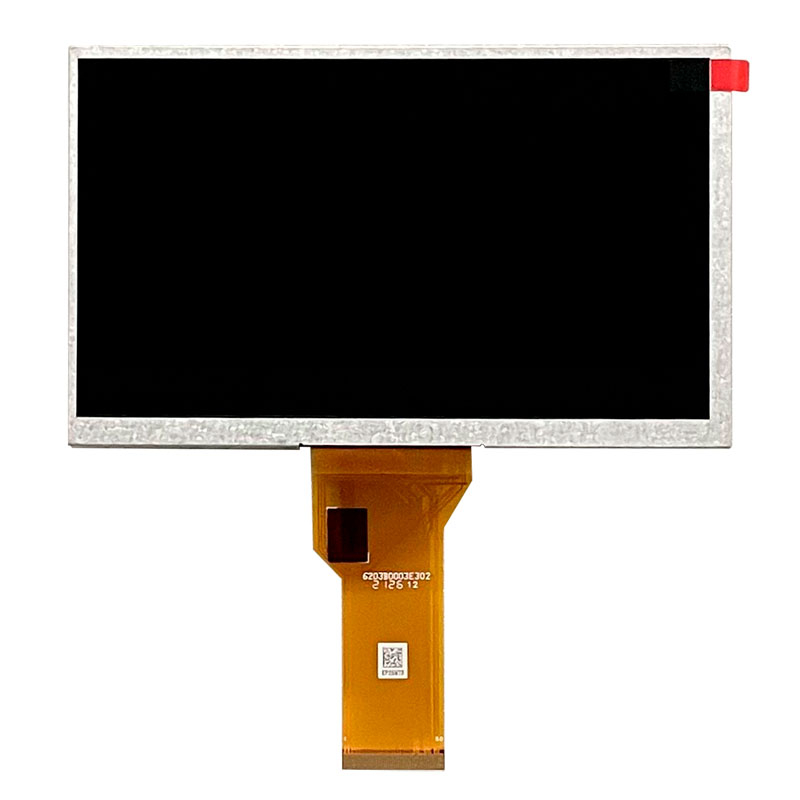

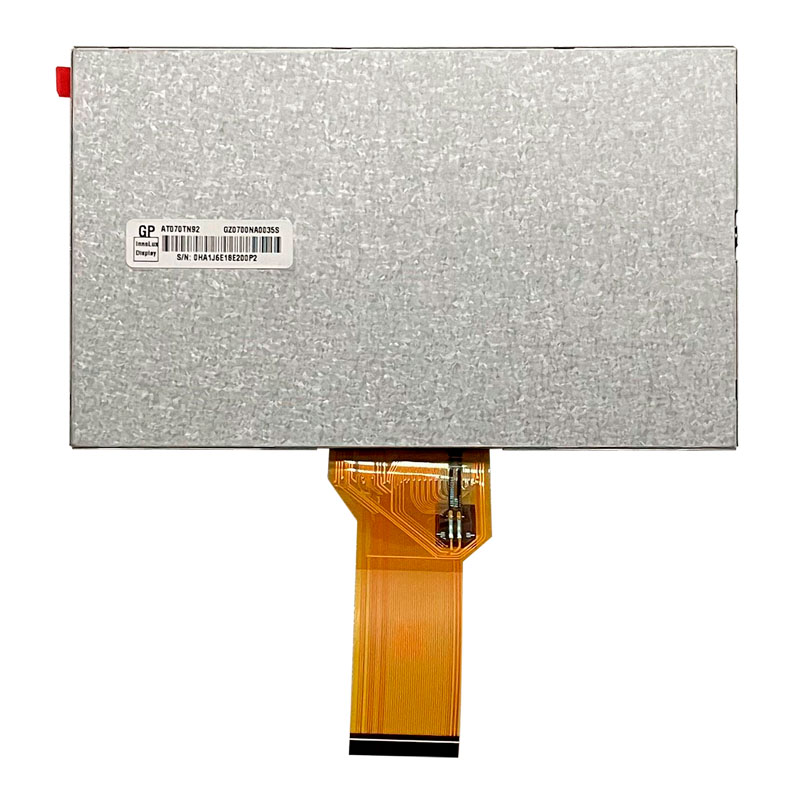

The Innolux AT070TN92 7-inch TFT LCD display module is a widely adopted industrial display solution designed for embedded systems, automation equipment, and OEM applications. Featuring 800 × 480 (WVGA) resolution, 250 cd/m² brightness, and a 50-pin parallel RGB interface, this panel offers stable performance and cost-effective integration for industrial-grade products.
Built with a-Si TFT-LCD technology and a WLED backlight system, the module ensures consistent display performance and long operational life. Its standard RGB interface architecture makes it highly compatible with MCU, FPGA, and embedded controllers, enabling efficient system integration for engineering teams.
This panel is commonly selected by manufacturers seeking a reliable 7-inch LCD supplier for long-term OEM production and bulk procurement.
Standard 7″ WVGA Resolution
The 800×480 resolution provides clear and stable image output, suitable for industrial interfaces, control panels, and embedded GUIs.
250 cd/m² Industrial Brightness
Balanced brightness ensures good readability in indoor environments and equipment displays, while maintaining low power consumption.
50-Pin Parallel RGB Interface
The 1-channel 6/8-bit RGB interface offers simple integration with a wide range of embedded processors and display controllers.
TN Panel with Fast Response
The TN display mode provides efficient response times and cost-effective performance for industrial applications.
Industrial Temperature Support
Operating temperature range typically supports −20°C to 70°C, suitable for industrial environments and embedded equipment.
No. | Item | Specification | Remark |
1 | LCD size | 7.0 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 800X3(RGB)X480 | |
4 | Display mode | Normally white, Trans-missive | |
5 | Dot pitch | 0.0642(W)X0.1790(H)mm | |
6 | Active area | 154.08（W)X85.92(H)mm | |
7 | Module size | 164.9(W)X100.0(H)X5.7(D)mm | Note 1 |
8 | Surface treatment | Anti-Glare | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | 50/70/70/70 | |
11 | Interface | Digital | |
12 | Backlight power consumption | 1.674W(Typ.) | |
13 | Panel power consumption | 0.226W(Typ.) | |
14 | Weight | 150g(Typ.) | |
15 | Source-IC Gate-IC | EK79713BCGB EK73202ACGB | |
16 | Inversion | 1+2dot | |
Note 1:Refer to Mechanical Drawing | |||
This 7-inch TFT LCD display module is widely utilized in a diverse range of B2B devices:
Industrial control systems (HMI panels)
Embedded devices & controllers
Medical equipment displays
POS systems & kiosks
Smart home control panels
Automotive display systems
Portable electronics & handheld terminals
Its standard resolution and RGB interface make it a versatile model, ideal for use as a replacement screen for industrial equipment as well as for OEM development projects.
| Feature | Benefit |
|---|---|
| Original Innolux Panel | Stable quality & consistent batches |
| Bulk Order Support | Competitive pricing for large volume |
| OEM Customization | Touch panel / cable / brightness options |
| Engineering Support | Datasheet & integration guidance |
| Long-Term Supply | Suitable for industrial lifecycle projects |
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
AT070TN92 F(V08)_20231114 update NGB.pdf
Yes, it supports industrial temperature range and stable RGB interface, widely used in automation systems.
It uses a 50-pin parallel RGB interface, compatible with MCU and embedded boards.
Yes, optional resistive or capacitive touch panels can be added for OEM projects.
Yes, AT070TN92 is a very common industrial replacement LCD model.
Yes, we provide samples, small batch, and large-scale procurement support.
