AT102TN03 v.8
Innolux

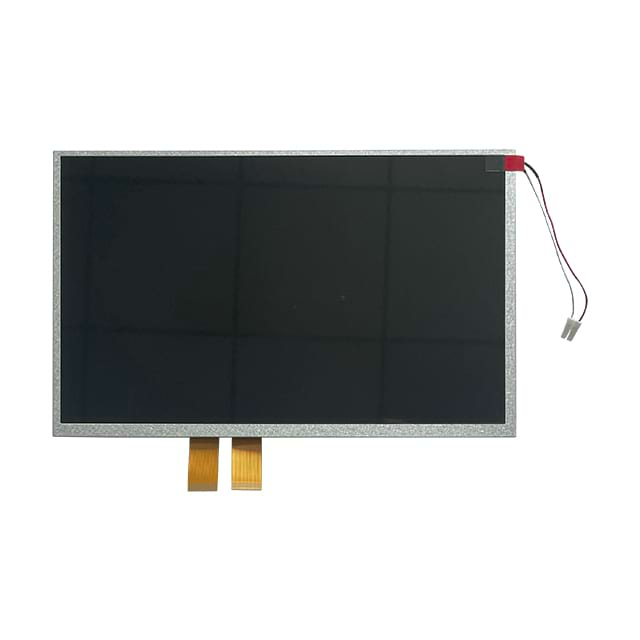

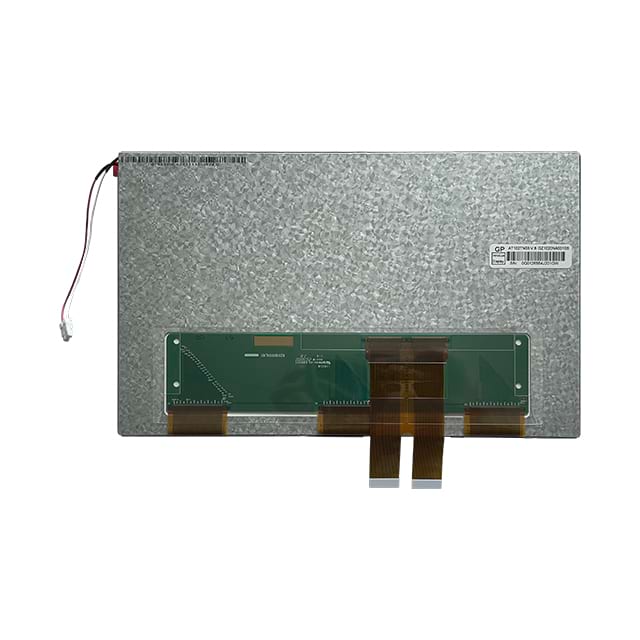

The Innolux AT102TN03-V 10.2-inch TFT LCD display module provides a reliable, cost-effective solution for industrial, embedded, and OEM display projects. Featuring a 800×480 (WVGA) resolution, 60-pin TTL RGB parallel interface, and sturdy a-Si TFT panel technology, this module delivers clear visual performance and integration flexibility for a wide range of applications.
As a trusted industrial LCD display supplier, we support bulk orders, sample evaluation, OEM/ODM customization services, and technical integration guidance to help procurement teams and engineering departments meet their project specifications and production timelines.
10.2-Inch WVGA Display – Ideal size and resolution for embedded dashboards, HMIs, control panels, and automation screens.
800×480 Resolution – Delivers readable text and graphics with balanced pixel density and clarity.
60-Pin TTL RGB Interface – Standard parallel digital interface for easy system integration with controllers and driver boards.
Original Innolux Quality – Guaranteed panel authenticity and consistency across production batches.
Industrial-Grade Performance – Designed for long-term reliability in industrial and embedded deployments.
B2B Procurement Focus – Supports sample orders, volume pricing, customization, and long-term supply planning.
No. | Item | Specification | Remark |
1 | LCD size | 10.2 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 800X3(RGB)X480 | |
4 | Display mode | Normally white, Trans-missive | |
5 | Dot pitch | 0.0925(W) × 0.276(H) mm | |
6 | Active area | 222.0(W) × 132.48(H) mm | |
7 | Module size | 235.0(W) × 145.8(H) ×6.1(D) mm | Note 1 |
8 | Surface treatment | Anti-Glare | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | 45/65/65/65 | |
11 | Interface | Digital (TTL) | |
12 | Backlight power consumption | 1.86W(Typ.) | |
13 | Panel power consumption | 0.25W(Typ.) | |
14 | Weight | 309g (Typ.) | |
Note 1:Refer to Mechanical Drawing | |||
This 10.2″ 800×480 TTL LCD panel is suitable for a variety of B2B applications:
Industrial Human-Machine Interfaces (HMIs)
Embedded control systems and dashboards
Automation equipment displays
Medical and diagnostic instrument screens
Point-of-sale (POS) terminals and kiosks
OEM products requiring reliable visual modules
With its compact form factor, standard interface, and industrial reliability, the AT102TN03-V module enables engineering teams to streamline system design and production.
| Procurement Feature | Benefit |
|---|---|
| MOQ Flexibility | Supports sample evaluation orders to large volume procurement |
| Bulk Pricing | Competitive pricing for mid- to large-scale orders |
| Customization Services | Mechanical, interface, brightness, mounting options available |
| Technical Documentation | Datasheet, pin-out, timing and integration references provided |
| Quality Verification | Pre-shipment testing and performance documentation |
| Long-Term Supply | Stable production capacity and planned stock for OEM/industrial projects |
We focus on supporting procurement and engineering teams throughout the product lifecycle, ensuring consistency, availability, and documentation.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
AT102TN03 V_8 Final-Spec V09 NGB FAB Trasfer GZ1020NA0025S 20240205 (1).pdf
