VI104V602
Toroson

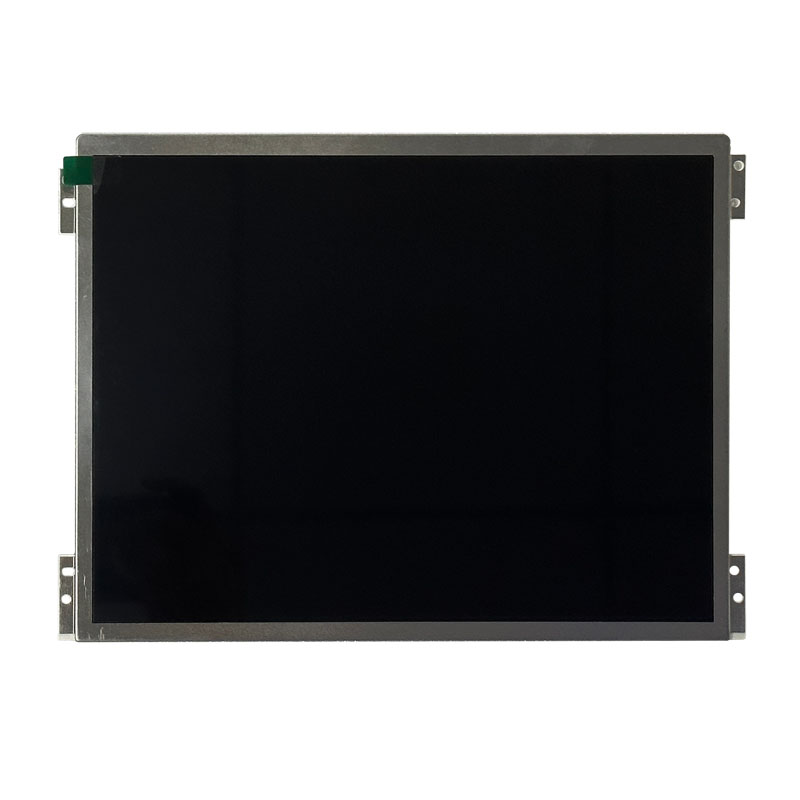

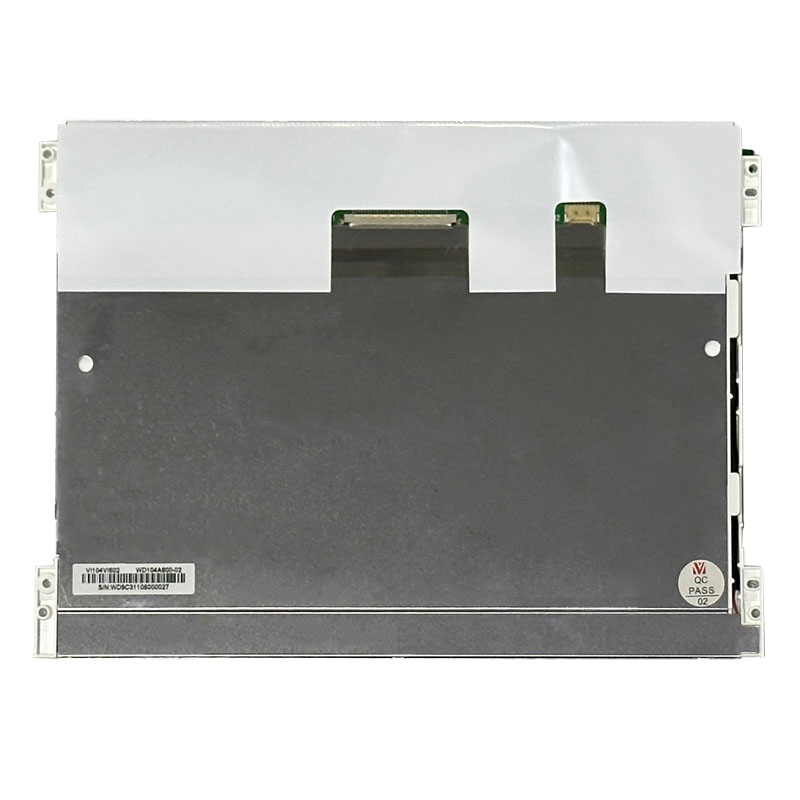

The 10.4-inch 1024×768 IPS LVDS TFT LCD display module delivers crisp XGA (1024×768) resolution with wide viewing angles, stable LVDS signal transmission, and robust performance for industrial, embedded and OEM display systems. Utilizing IPS panel technology, this display ensures consistent color and clarity across broad viewing directions — a key requirement for shared and mission-critical interfaces.
The panel uses a 30-pin LVDS interface, providing reliable digital connectivity with mainstream controller boards and embedded graphics platforms ideal for displays in control centers, medical devices, kiosks, industrial consoles and automotive dashboards.
Sharp XGA Resolution: 1024×768 provides a balanced combination of clarity and pixel density for detailed graphics and UI elements.
Wide IPS Viewing Angles: IPS panel technology ensures consistent image quality across nearly all angles, ideal for display panels that may be viewed from multiple positions.
30-Pin LVDS Interface: LVDS (Low Voltage Differential Signaling) enables stable, low-noise data transmission between controller and display across industrial wiring distances.
Industrial Reliability: Typical performance in broad operating conditions (module variants support wide temperature ranges), making it suitable for 24/7 industrial, embedded, and commercial systems.
Robust Visual Performance: High contrast ratios and IPS color accuracy deliver vibrant visuals for HMIs, dashboards, and user displays.
B2B Procurement Ready: Supports bulk orders, sample evaluation, OEM customization, and integration support for engineering and procurement teams.
No. | Item | Specification | Remark |
1 | LCD size | 10.4 inch(Diagonal) | |
2 | Display Type | Transmissive, a-Si | |
3 | Resolution | 1024X3(RGB)X768 | |
4 | Color arrangement | RGB-stripe | |
5 | Dot pitch | 0.2055(W) × 0.2055(H) mm | |
6 | Active area | 210.432 (W) × 157.824(H) mm | |
7 | Module size | 238.6(W) × 175.8(H) × 6.5(D) mm | |
8 | Surface treatment | HC | |
9 | Contrast Ratio(light on) | 1000:1(Type) | |
10 | View direction(Gray Inversion) | 80/80/80/80 | |
11 | Interface | LVDS | |
12 | Backlight power consumption | 1.4W(Max.) | |
13 | Panel power consumption | 0.66W(Typ.) | |
14 | Weight | 400g |
This 10.4″ IPS LVDS TFT LCD display module is widely applicable across industrial and commercial sectors:
Industrial Human-Machine Interfaces (HMIs) – crisp, reliable visualization for control panels.
Embedded Control Systems & Dashboards – engineering consoles requiring stable displays.
Medical Devices & Health Systems – high clarity and wide viewing angles for shared screens.
Commercial Kiosks & Digital Signage – robust visibility in public environments.
OEM Electronics & Transportation Displays – versatile base panel for custom product designs.
Its combination of XGA resolution, IPS wide viewing, and LVDS interface makes it a preferred choice for engineering teams and procurement professionals looking to balance performance with reliability in mission-critical displays.
| Procurement Feature | Benefit |
|---|---|
| MOQ Flexibility | Supports sample orders up to large volume contracts |
| Bulk Pricing Options | Cost-competitive pricing for enterprise procurement |
| Customization Services | Mechanical, backlight, brightness, or touch options available |
| Pre-Shipment QA | Functional test reports and quality documentation |
| Engineering Support | Interface, driver and integration guidance |
| Long-Term Supply | Stable production aligned with long product lifecycles |
We assist sourcing, engineering and procurement teams with documentation, sample support, and supply continuity planning for enterprise projects.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
Toroson 10.4 Inches VI104VI602 Spec. 20190924.pdf
