AT043TN24 V.7
Innolux

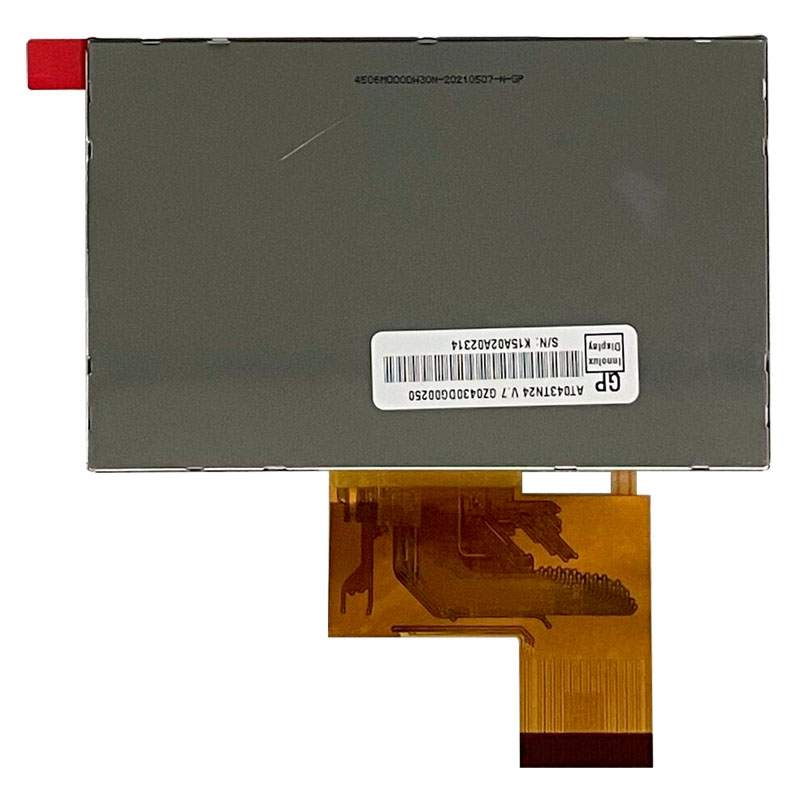

The Innolux AT043TN24 V.7 4.3-inch TFT LCD panel is a compact industrial display module designed for embedded systems and industrial equipment. It features 480 × 272 WQVGA resolution, white LED backlight, and a parallel RGB interface, delivering clear image quality and reliable performance for embedded applications.
This module integrates a 4-wire resistive touch screen, enabling precise touch input for human-machine interface (HMI) systems. With stable performance and industrial-grade operating temperature support, the display is widely used in navigation systems, handheld terminals, medical devices, and industrial control equipment.
The compact 4.3-inch format and standard interface make it easy to integrate with MCU, FPGA, and embedded processor platforms.

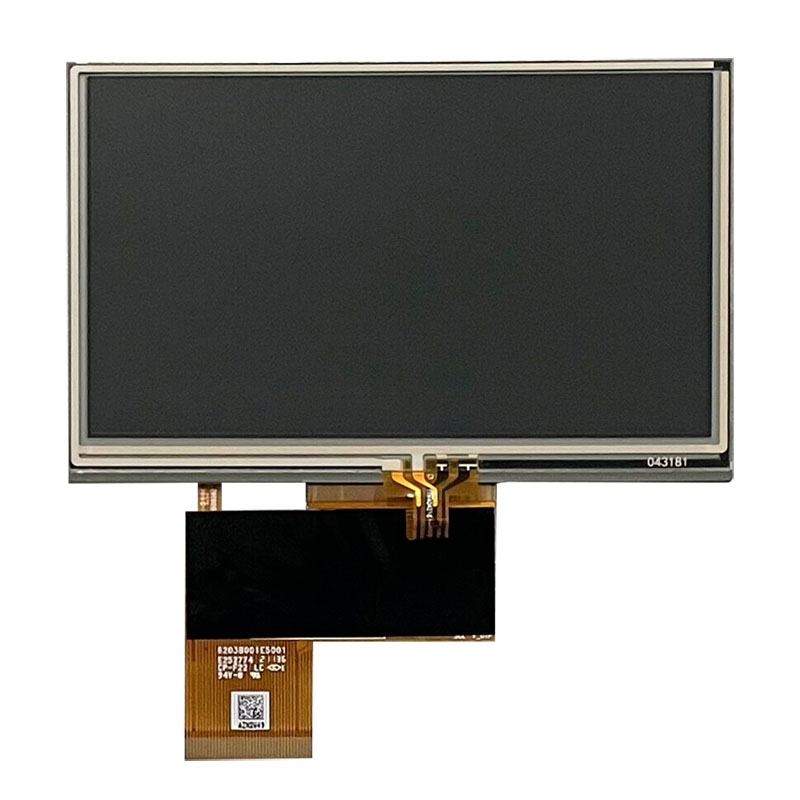

Integrated Resistive Touch Panel
The module includes a 4-wire resistive touch screen, providing accurate touch control for industrial user interfaces and embedded control systems.
Clear WQVGA Resolution
With 480 × 272 resolution, the display provides clear graphics and readable text for equipment interfaces and dashboards.
Reliable WLED Backlight
The LED backlight system offers long service life and stable brightness for continuous operation in industrial devices.
Parallel RGB Interface
The panel uses a Parallel RGB (1-channel, 8-bit) interface, ensuring compatibility with many embedded processors and development boards.
Industrial Operating Temperature
The display supports −20°C to 70°C operating temperature, making it suitable for industrial equipment and outdoor devices.
No. | Item | Specification | Remark |
1 | LCD size | 4.3 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 480X3(RGB)X272 | |
4 | Display mode | Normally white, Trans-missive | |
5 | Dot pitch | 0.066(W) × 0.198(H) mm | |
6 | Active area | 95.04(W) × 53.856(H) mm | |
7 | Module size | 105.5(W) x67.2(H) x 4.05(D) mm | Note 1 |
8 | Surface treatment | Anti-Glare | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | 50/70/70/70 | |
11 | Interface | Digital | |
12 | Backlight power consumption | 0.513 W(Typ.) | |
13 | Panel power consumption | 0.056 W (Typ.) | |
14 | Weight | 59g(Typ.) | |
Note 1:Refer to Mechanical Drawing | |||
The 4.3-inch Innolux TFT LCD display module is widely used in embedded and industrial equipment, including:
Industrial HMI control panels
GPS navigation systems
Medical monitoring devices
Handheld testing equipment
Smart home control terminals
Industrial automation systems
Portable consumer electronics
| Feature | Benefit |
|---|---|
| Original Innolux Panel | Reliable quality and stable supply |
| Bulk Purchasing Support | Competitive pricing for large orders |
| Touch Integration | Resistive or capacitive touch options |
| OEM Customization | Interface, brightness, cable customization |
| Engineering Support | Datasheet and integration guidance |
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
AT043TN24 V.7_GZ0430DG00250_ _20171109.pdf
