TI035AI310
Toroson

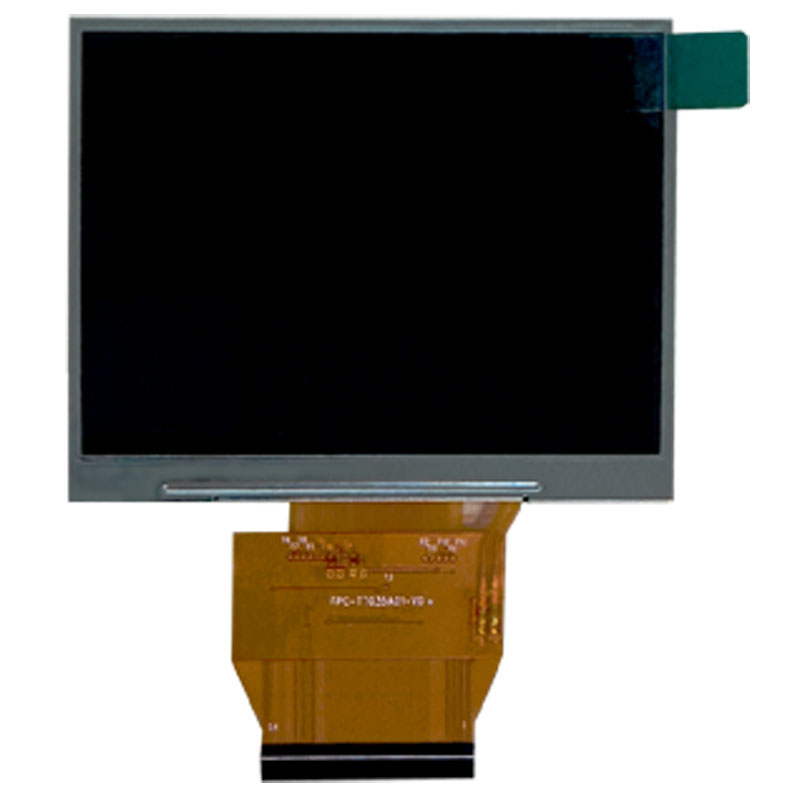

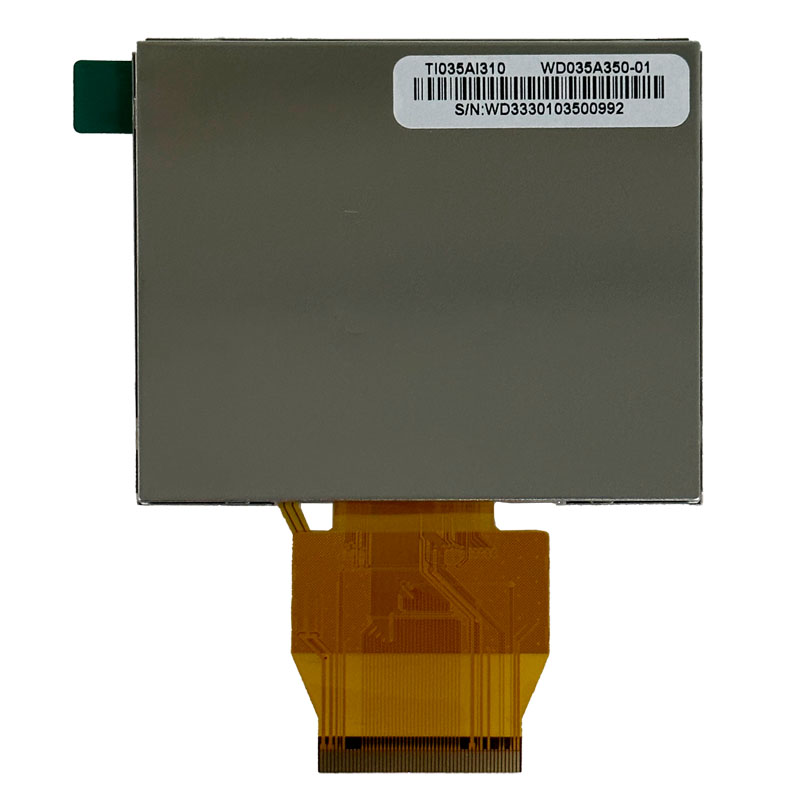

The 3.5-inch TFT LCD panel is a compact and reliable display module designed for industrial embedded systems and portable electronic devices. Featuring 320 × 240 (QVGA) resolution, 350 cd/m² brightness, and a 54-pin TTL RGB interface, this display provides clear image quality and stable signal transmission for industrial applications.
This 3.5 inch TTL TFT LCD display module integrates a TFT LCD panel, driver IC, FPC connector, and LED backlight system. With a compact outline dimension and low power consumption, it is widely used in embedded control systems, handheld devices, medical instruments, and industrial equipment.
The module supports 24-bit RGB TTL interface communication, making it easy to integrate with common MCU, FPGA, and embedded processors used in industrial devices. Many similar industrial displays with these specifications use 350 nits brightness and a 54-pin RGB interface for reliable integration in embedded electronics.
High-Clarity QVGA Resolution
The 320 × 240 resolution (QVGA) provides sharp graphics and clear text rendering, making it suitable for graphical user interfaces and instrument displays.
350 cd/m² Brightness
With 350 cd/m² luminance, the screen ensures good visibility in indoor industrial environments and equipment dashboards.
54-Pin TTL RGB Interface
The display uses a 54-pin TTL RGB interface, enabling fast data transfer and stable signal compatibility with embedded boards and microcontrollers.
Compact 3.5-Inch Design
Its compact form factor allows easy integration into portable or space-limited electronic products.
Industrial Temperature Support
Many 3.5-inch industrial TFT modules support operating temperatures around -20°C to 70°C, making them suitable for industrial equipment environments.
No. | Item | Specification | Remark |
1 | Screen Size | 3.5(Diagonal) | |
2 | Pixel pitch | 0.073(H)X 0.219(V) mm | |
3 | Active area | 70.08(H) x 52.56(V) mm | |
4 | Module Size | 76.9 (H)X 63.9(V)X 3.3(T) mm | |
5 | Resolution | 320 RGB(H)X 240 (V) pixel | |
6 | Outline dimension | 76.9(W) x 63.9(H) x 3.26(D) | |
7 | Color | 16.7M colors | |
8 | Interface | RGB | |
9 | Display Mode | Normally Black | |
10 | Pixel arrangement | RGB Vertical stripe | |
11 | Surface Treatment | Anti-glare | |
12 | NTSC | 60 % | |
13 | Brightness | 350 cd/m2 | |
14 | Backlight power consumption | 375 mW |
This 3.5 inch industrial TFT LCD display module is widely used in OEM equipment and embedded systems, including:
Industrial control panels
Medical devices and diagnostic instruments
Smart home control interfaces
Portable testing equipment
Industrial handheld terminals
Security monitoring devices
POS terminals and kiosks
Its stable performance and compact design make it suitable for manufacturers and system integrators requiring a reliable small TFT LCD panel supplier.
| Advantage | Description |
|---|---|
| Stable Industrial Supply | Long-term production support for OEM projects |
| Bulk Order Support | Competitive pricing for volume procurement |
| Customization Available | Touch panel, controller board, cable options |
| Engineering Support | Integration guidance and datasheets |
| Global Shipping | Fast delivery for international buyers |
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
Toroson 3.5inch TI035AI310 spec.（V01）2022.11.15.pdf
