EJ080NA-05B
Innolux

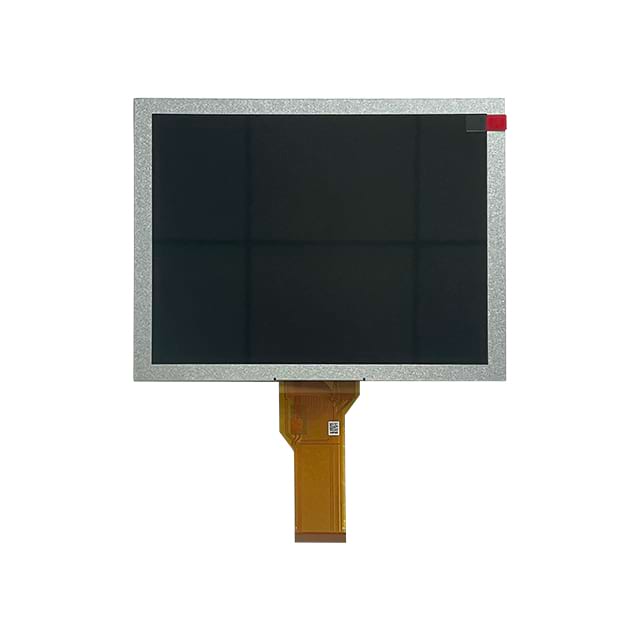

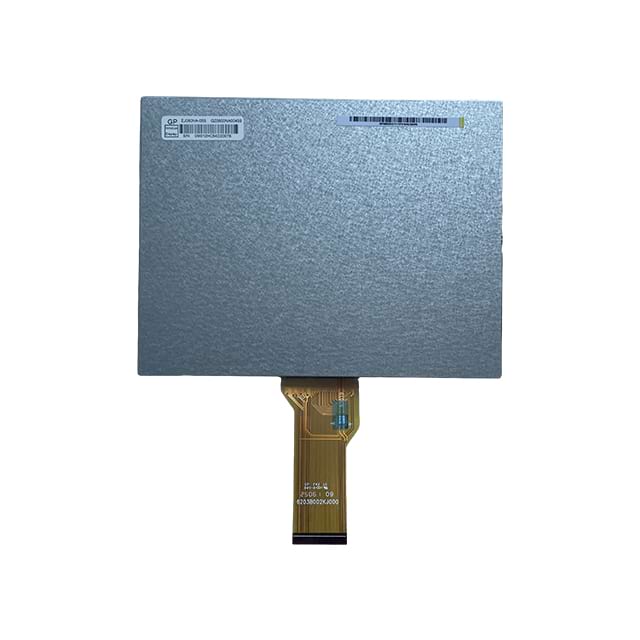

The Innolux EJ080NA-05B 8-inch TFT LCD display module is a reliable display solution engineered for industrial and embedded applications requiring durability, clarity, and interface compatibility. With 800×600 (SVGA) resolution and a 50-pin TTL RGB interface, this module provides stable digital connectivity and excellent visual performance for human-machine interfaces (HMIs), automation systems, embedded controllers, diagnostic equipment, and OEM products.
As an original Innolux industrial LCD panel supplier, we support bulk procurement, sample orders, and OEM/ODM customization services, helping procurement and engineering teams accelerate product development and production.
8-Inch SVGA Display: Classic 800×600 resolution delivers clear text and graphics for system dashboards and user interfaces.
Standard 50-Pin TTL RGB Interface: Parallel digital interface provides simple integration with microcontrollers and embedded systems.
Industrial Display Performance: Designed for reliable, continuous operation in industrial, automation and embedded environments.
Original Innolux Quality: Guaranteed panel authenticity and consistency across production batches.
Balanced Visual Brightness: Suitable for indoor and controlled lighting scenarios in industrial and embedded products.
B2B Procurement Ready: Supports sample evaluation, scalable volume orders, OEM customization, and technical integration support.
No. | Item | Specification | Remark |
1 | LCD size | 8.0 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 800X3(RGB)X600 | |
4 | Display mode | Normally white, Trans-missive | |
5 | Dot pitch | 0.0675(W) × 0.2025(H) mm | |
6 | Active area | 162.0(W) × 121.5(H) mm | |
7 | Module size | 183.0(W) × 141.0(H) × 5.6(D) mm | Note 1 |
8 | Surface treatment | Anti-Glare | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | 50/70/70/70 | |
11 | Interface | Digital (TTL) | |
12 | Backlight power consumption | 1.674W (Typ.) | |
13 | Panel power consumption | 0.356W(Typ.) | |
14 | Weight | 236g (Typ.) | |
15 | IC | EK79713BCGB+EK73215BCGA | |
16 | Inversion | 1+2dot | |
17 | Framerate | 60Hz | |
Note 1:Refer to Mechanical Drawing | |||
This 8″ 800×600 TTL LCD display module integrates seamlessly into a variety of B2B systems where reliable visualization is key:
Industrial Human-Machine Interfaces (HMIs) — operator panels, control systems
Embedded Systems & Process Controllers — compact displays for automation
Medical & Diagnostic Equipment — interface displays for instruments
Kiosks & Point-of-Sale Terminals — indoor self-service screens
OEM Electronic Devices — branded panels for custom hardware
Industrial Automation Dashboards — diagnostic and monitoring displays
The balanced SVGA resolution and TTL interface make this panel ideal for engineering teams requiring stable performance across embedded and industrial platforms.
| Procurement Feature | Benefit |
|---|---|
| MOQ Flexibility | Supports sample to bulk orders |
| Competitive Bulk Pricing | Volume-based pricing for enterprise contracts |
| Customization Options | Interface, mechanical, and backlight tuning |
| Sample Support | Evaluate performance before large orders |
| Technical Integration Help | Assistance with pinout, timing, and controller integration |
| Quality Assurance | Pre-shipment testing and documentation |
| Supply Stability | OEM lines supported with reliable source |
We help engineering and procurement teams select, validate and qualify reliable display components for long-term production lifecycles.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
EJ080NA-05B Final Specification (V07)-20231017.pdf
