LW700AT9309
Innolux

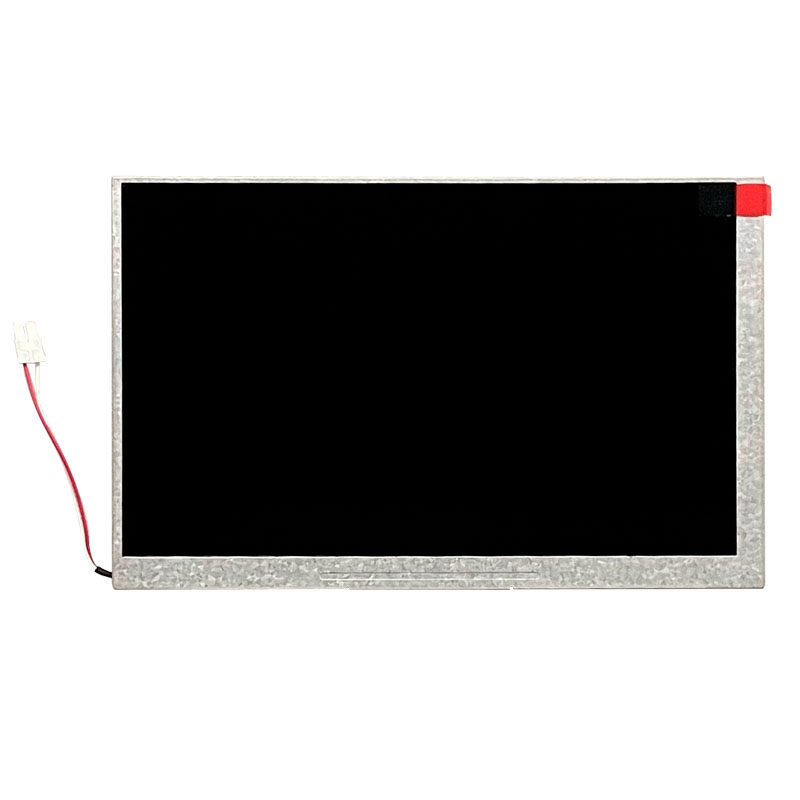

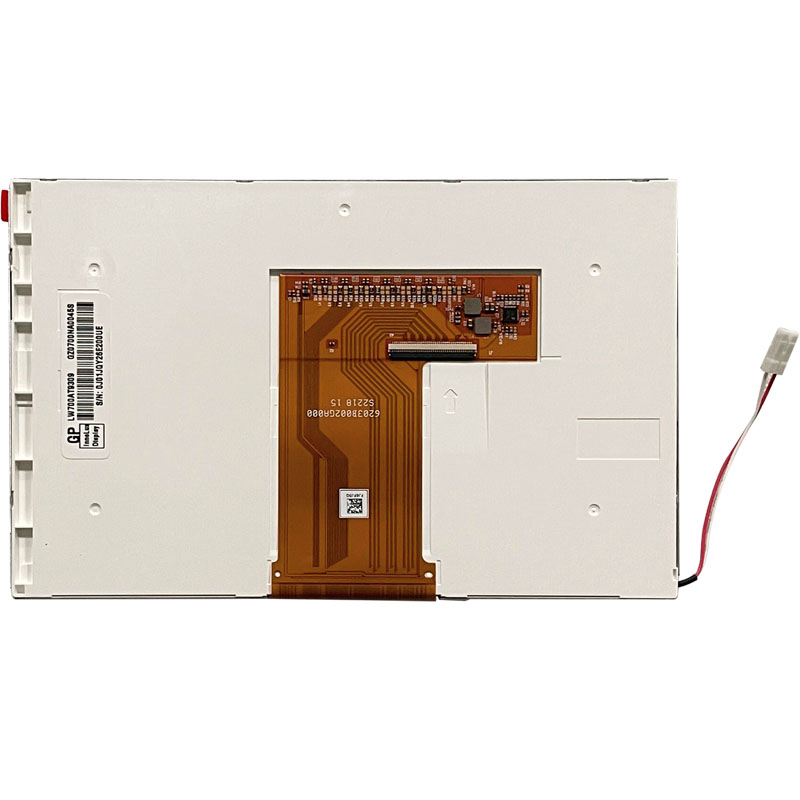

The Innolux LW700AT9309 7-inch TFT LCD display module is a widely used industrial-grade display panel designed for embedded systems and OEM equipment. Featuring 800 × 480 (WVGA) resolution, a 40-pin RGB (TTL) interface, and 350 cd/m² brightness, this module provides stable performance and clear image output for industrial and commercial applications.
Built with TN panel technology and WLED backlight, the display ensures reliable operation, low power consumption, and long service life. Its standard RGB interface enables seamless integration with MCUs, embedded boards, and industrial controllers, making it a preferred solution for engineers and procurement teams.
This model is commonly deployed in industrial control systems, handheld terminals, medical devices, and consumer electronics requiring reliable display performance.
Standard 7″ WVGA Resolution
The 800 × 480 resolution delivers clear and stable image quality for user interfaces, dashboards, and control systems.
40-Pin RGB TTL Interface
Supports parallel RGB (TTL) interface, ensuring compatibility with a wide range of embedded processors and development platforms.
350 cd/m² Brightness
Provides sufficient luminance for indoor industrial environments and equipment displays.
Reliable WLED Backlight
Uses WLED backlight (approx. 20,000 hours lifespan) for long-term stable operation.
Compact Industrial Design
Slim structure with lightweight design allows easy integration into compact embedded systems and devices.
No. | Item | Specification | Remark |
1 | LCD size | 7.0 inch(Diagonal) | |
2 | Display Format | 800X3(RGB)X480 | dot |
3 | Active area | 152.4x91.44 | mm |
4 | Pixel size | 190.5 x 190.5 | um |
5 | Surface treatment | Anti-glare | |
6 | Color Saturation (NTSC) | 50 | % |
7 | Module size | 165(W) x 104.44(H) x 5.2 (D) | mm |
8 | Pixel Configuration | RGB Vertical Stripe | |
9 | Weight | 122.9(TBD) | |
10 | View direction(Gray Inversion) | 6 o’clock | |
11 | Interface | RGB | |
12 | IC | EK79713B+EK73202A | |
13 | Inversion | 1+2dot |
This 7-inch industrial TFT LCD display module is widely used in:
Industrial control systems & HMI panels
Medical equipment interfaces
Handheld terminals & portable devices
Smart home control systems
POS terminals & kiosks
Automotive and transportation displays
Testing instruments & embedded systems
Its stable performance and standard interface make it ideal for OEM manufacturers and system integrators.
| Feature | Benefit |
|---|---|
| Original Innolux Panel | Stable quality and reliable supply chain |
| Flexible MOQ | Supports prototype and mass production |
| Bulk Pricing | Competitive pricing for large-scale procurement |
| Customization | Touch panel, controller board, cables available |
| Engineering Support | Datasheets and integration guidance |
| Long Lifecycle Supply | Suitable for industrial projects |
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
LW700AT9309 GZ0700NA0045S LCM Final Spec_v02_20221028.pdf
