AT070TN83 V.1
Innolux

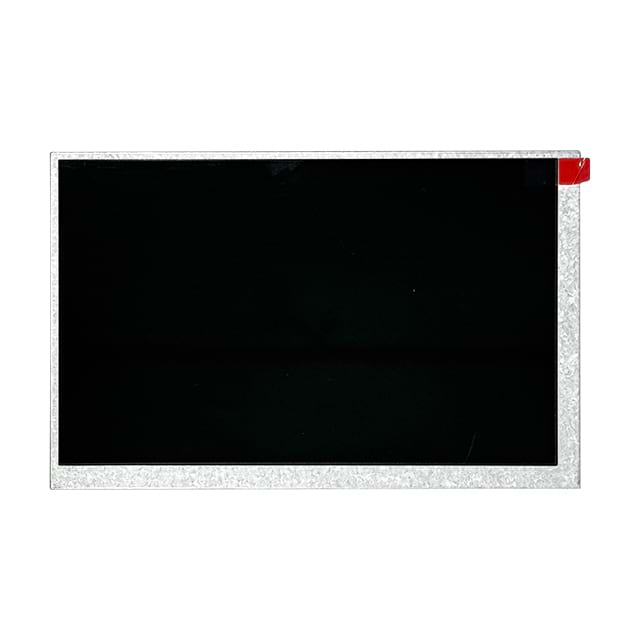

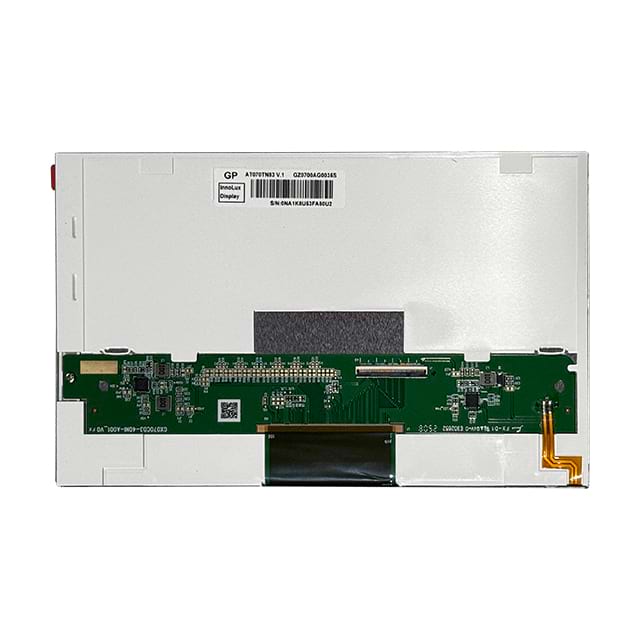

The Innolux AT070TN83 V.1 7-inch TFT LCD display module is a widely used industrial display panel designed for embedded systems, industrial control equipment, and portable electronic devices.
This LCD module features 800 × 480 WVGA resolution, 400 cd/m² brightness, and a 40-pin TTL interface, enabling reliable integration with embedded processors, development boards, and industrial controllers.
The panel adopts a-Si TFT-LCD technology with TN normally-white transmissive mode, delivering clear image quality and stable performance for long-term industrial applications. It integrates WLED backlight technology with a lifespan of approximately 20,000 hours, ensuring durability and consistent brightness during continuous operation.
Due to its compact size and industrial reliability, the AT070TN83 V.1 display module is commonly used in industrial HMI systems, automotive electronics, medical devices, handheld terminals, and embedded control equipment.
7-Inch WVGA Industrial Display
The module offers 800 × 480 resolution with RGB vertical stripe pixel structure, delivering sharp images suitable for industrial graphical interfaces.
High Brightness 400 cd/m²
With 400 cd/m² luminance, the screen remains visible in industrial environments and indoor equipment displays.
Stable 40-Pin TTL Interface
The TTL (1-channel, 6-bit) interface with 40-pin connector ensures stable signal transmission and easy integration with embedded control boards and industrial motherboards.
Long-Life WLED Backlight
The display uses WLED backlight technology with approximately 20,000 hours lifetime, supporting long-term continuous operation in industrial equipment.
Industrial Temperature Range
Designed for demanding environments, the panel supports an operating temperature range of −20°C to 70°C, making it suitable for industrial automation and outdoor equipment.
No. | Item | Specification | Remark |
1 | LCD size | 7.0 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 800X3(RGB)X480 | |
4 | Display mode | Normally white, Trans-missive | |
5 | Dot pitch | 0.0635(W)X0.1905(H) mm | |
6 | Active area | 152.4 (W)X91.44 (H) mm | |
7 | Module size | 165(W)X104(H)X5.5(D) mm | Note 1 |
8 | Surface treatment | Anti-Glare | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | 50/70/70/70 | |
11 | Interface | Digital (TTL) | |
12 | Backlight power consumption | 2.500W (Typ.) | Note 2 |
13 | Panel power consumption | 0.281W (Typ.) | |
14 | Weight | 112.9g (Typ.) | |
Note 1:Refer to Mechanical Drawing | |||
Note 2: Including LED Driver power consumption. | |||
The Innolux AT070TN83 V.1 TFT LCD module is widely used in B2B industrial applications:
Industrial automation equipment
Human-Machine Interface (HMI) panels
Portable industrial instruments
Medical diagnostic devices
Automotive display systems
Digital photo frames and multimedia devices
Embedded system control terminals
Its combination of compact size, stable TTL interface, and industrial operating temperature range makes it a reliable display solution for OEM manufacturers and system integrators.
| Feature | Benefit |
|---|---|
| Original Innolux LCD panel | Guaranteed quality and reliability |
| Stable long-term supply | Suitable for industrial product lifecycle |
| Competitive bulk pricing | Ideal for distributors and manufacturers |
| Engineering support | Integration guidance for embedded systems |
| Custom display solutions | Touch panel, controller board, cables available |
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
AT070TN83 V.1 Final spec_v01_20221201.pdf
