ZJ050NA-08C
Innolux

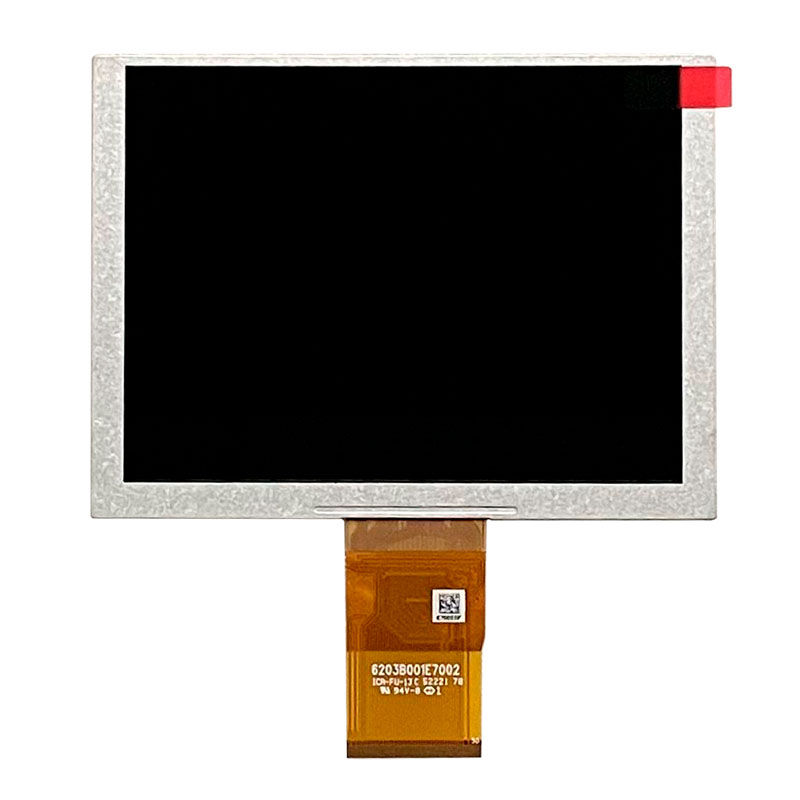

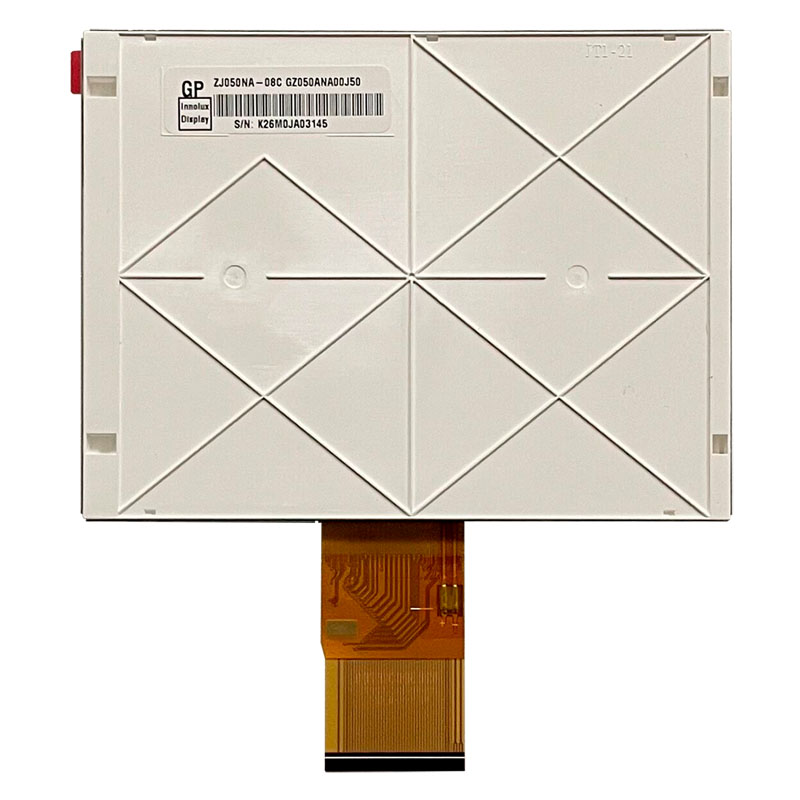

The Innolux ZJ050NA-08C 5-inch TFT LCD display module offers a reliable, compact display solution suited for industrial, embedded and OEM applications. With a 640×480 (VGA) resolution, 250 cd/m² typical brightness, and a 50-pin RGB parallel interface, this panel delivers clear visuals and stable signal transmission for human-machine interfaces (HMIs), embedded systems, information displays, and kiosk terminals.
Built on proven TFT LCD technology, this module combines visual quality with industrial-grade reliability. Toroson As a genuine Innolux industrial display panel supplier, we support bulk procurement, sample evaluation, and OEM/ODM customization to meet your product design and manufacturing requirements.
Compact 5″ VGA Resolution: 640×480 resolution provides clear text and UI elements for small to mid-sized display applications.
Balanced Brightness (250 cd/m²): Sufficient luminance for indoor environments including industrial controls and embedded devices.
Standard 50-Pin RGB Interface: Parallel RGB interface simplifies connectivity with microcontrollers, embedded boards and controller modules.
Industrial Reliability: Designed to operate robustly in industrial and embedded applications with stable performance.
Original Innolux Quality: Guaranteed panel authenticity ensuring consistent performance across production runs.
B2B Procurement Ready: Sample orders, scalable batch purchasing, and customization services available for enterprise use.
No. | Item | Specification | Remark |
1 | LCD size | 5.0 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 640 ×(RGB) × 480 | |
4 | Display Mode | Normally White, Transmissive | |
5 | Dot pitch | 0.053(W) × 0.159(H) mm | |
6 | Active area | 101.57(W) × 76.18(H) mm | |
7 | Module size | 117.65(W) × 88.43(H) × 5.70(D) mm | Note 1 |
8 | Surface treatment | Anti-Glare | |
9 | Color Arrangement | RGB-stripe | |
10 | Interface | Digital | |
11 | Backlight Power consumption | 0.960W (Typ.) | |
12 | Panel power consumption | 0.2W(Typ.) | |
13 | Weight | 0.067Kg |
This 5″ 640×480 RGB TFT LCD display module is ideally suited for a number of B2B and embedded display applications:
Industrial Human-Machine Interfaces (HMIs) — compact operator interfaces for machinery and automation
Embedded Device Displays — user screens for controllers, IoT devices, and platform consoles
POS/POC Terminals — clear VGA resolution for transaction and service displays
Medical & Diagnostic Instruments — dependable panel for embedded medical devices
OEM Electronics & Consumer Devices — scalable display solution for brand-specific products
Test & Measurement Equipment Panels — reliable visualization for instrumentation
With its compact form factor, balanced brightness, and industry-standard RGB interface, this display module integrates seamlessly into engineering designs and embedded platforms.
| Procurement Feature | Benefit for B2B Buyers |
|---|---|
| MOQ Flexibility | Sample orders to large volume runs supported |
| Volume & Contract Pricing | Cost advantages for enterprise and OEM contracts |
| Customization Services | Interface options, mechanical modifications, brightness tuning |
| Sample Evaluation Support | Test module performance in prototype builds |
| Technical Integration Assistance | Pinout diagrams, wiring guidance, driver timing resources |
| Quality Verification | Pre-shipment functional tests and documentation |
| Long-Term Supply Support | Reliable production planning for multi-batch orders |
We partner with procurement and engineering teams to ensure display selection aligns with technical, scheduling, and supply requirements.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
ZJ050NA-08C_GZ050ANA00J50-20170622.pdf
