AT080TN64
Innolux

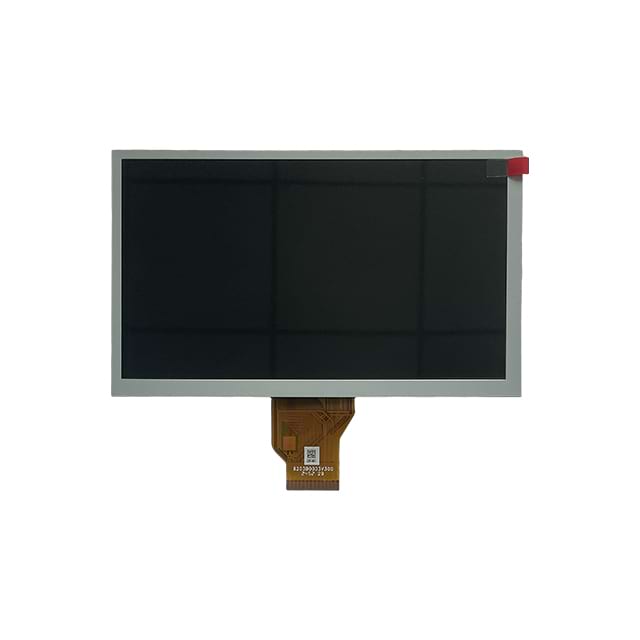

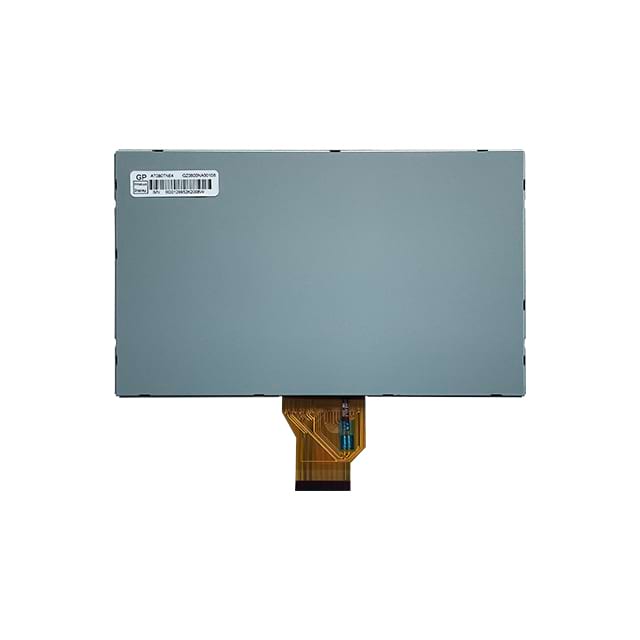

The Innolux AT080TN64 is a high-reliability 8-inch TFT LCD panel featuring 800×480 WVGA resolution and a 50-pin parallel RGB TTL interface. Designed for industrial and embedded applications, this panel delivers solid visual performance, wide operating temperature range (-30 °C to +85 °C), and compatibility with standard controller boards. Its durable a-Si TFT construction and anti-glare surface make it suitable for system integrations where display quality and environmental tolerance are critical.
As a trusted industrial display supplier and original Innolux source, we provide bulk procurement, OEM/ODM customization, and technical support for engineering and procurement teams.
8-Inch WVGA Display — 800×480 resolution offers clear graphics and text for industrial HMI, embedded systems, instrumentation, and more.
Parallel RGB TTL Interface (50-pin) — Standard parallel interface simplifies integration with microcontrollers, system boards, and controller boards.
Wide Operating Temperature — Works reliably from -30 °C to +85 °C, supporting harsh industrial and outdoor conditions.
Durable Panel Construction — a-Si TFT active matrix with anti-glare surface enhances readability and long-term performance.
High Contrast & Viewing Angles — Typical contrast ratio ~500:1 and 70/70/50/70 (L/R/U/D) viewing angles deliver consistent visuals across directions.
Robust Backlight — WLED backlight with long lifetime (~20,000 hours) for reliable illumination.
Original Innolux Quality — Original panel source ensures authenticity and long-term availability.
No. | Item | Specification | Remark |
1 | LCD size | 8.0 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 800X3(RGB)X480 | |
4 | Display mode | Normally white, Trans-missive | |
5 | Dot pitch | 0.0736(W) X 0.2070(H) mm | |
6 | Active area | 176.64(W) X 99.36(H) mm | |
7 | Module size | 192.8(W) X 116.9(H) X 6.4(D) mm | Note 1 |
8 | Surface treatment | Anti-Glare | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | 50/70/70/70 | |
11 | Interface | Digital (TTL) | |
12 | Backlight power consumption | 2.232W (Typ.) | |
13 | Panel power consumption | 0.226W(Typ.) | |
14 | Weight | 245g (Typ.) | |
15 | Source-IC Gate-IC | EK79713 EK73202 | |
16 | Driving methods | 1+2dot | |
Note 1:Refer to Mechanical Drawing | |||
This 8-inch 800×480 TTL LCD panel is ideal for a wide range of B2B applications that require rugged, reliable display solutions, including:
Industrial automation and HMIs
Embedded control systems and instrumentation
Automotive displays and vehicle interfaces
Kiosk terminals, POS/POC displays
Medical device screens
OEM and replacement panel solutions
We support integration with matched controller boards, optional touch panels, and custom mechanical mounting solutions as part of our procurement services.
| Procurement Feature | Benefit |
|---|---|
| SKU Flexibility | Sample, small batch, and bulk orders supported |
| Customization Options | Interface, brightness, and mechanical options available |
| Sample Evaluation | Test the panel before mass deployment |
| Quality Assurance | Pre-shipment testing and documentation |
| Engineering Support | Assistance with integration and compatibility |
| Supply Continuity | Stable production for long-term contracts |
As a professional industrial display supplier, we aim to support sourcing, engineering, and procurement teams with reliable components and responsive service.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
