| Quantity: | |
|---|---|
TI133FI315
Toroson

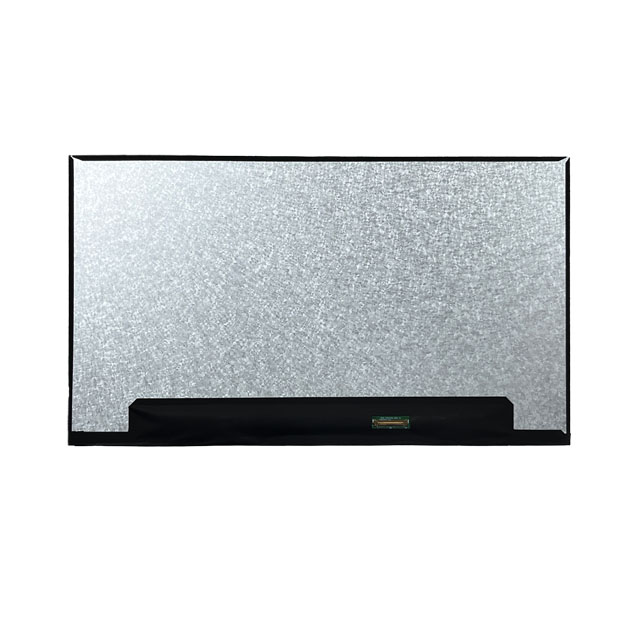

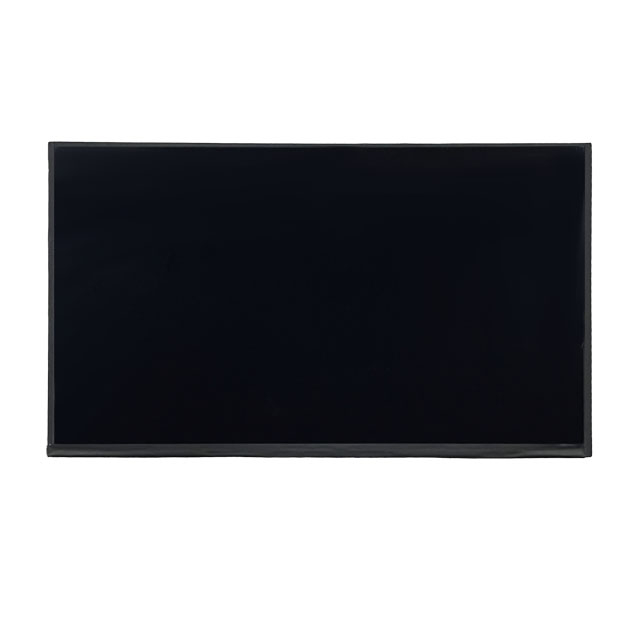

The Toroson 13.3-inch 1920×1080 eDP IPS LCD display module delivers sharp Full HD visuals with wide viewing angles and balanced brightness, making it a reliable choice for industrial and embedded applications. Featuring an eDP (Embedded DisplayPort) 30-pin interface and an anti-glare (AG) surface treatment, this display provides stable signal transmission and reduced reflection for improved readability in varying lighting environments. Typical similar modules of this class offer 350 cd/m² brightness with RGB vertical stripe pixel layout and wide-angle IPS performance.
This module is designed for system integrators, OEMs and procurement teams looking for a 13.3″ 1920×1080 industrial LCD panel with easy integration and dependable performance.
Full HD Resolution (1920×1080): Crisp visuals and smooth graphics for graphical user interfaces, dashboards, and video content.
IPS Panel Technology: Wide viewing angles and consistent color performance from nearly all directions, ideal for collaborative displays.
30-Pin eDP Interface: Efficient digital interface offering reliable high-speed data transfer, compatible with modern embedded controllers and driver boards.
Anti-Glare Surface: Reduces reflections and enhances visibility in bright workplaces or near windowed environments.
Balanced Brightness (350 cd/m² Typical): Suitable for general indoor industrial and commercial applications where readability and clarity are required.
Industrial & OEM Ready: Supports bulk procurement, OEM/ODM customization, and long-term supply for deployment in branded systems.
No. | Item | Specification | Remark |
1 | LCD size | 13.3 inch(Diagonal) | |
2 | Sub Pixel pitch | 51 (H) x 153 (V) | |
3 | Resolution | 1920 RGB(H)X 1080 (V)mm | |
4 | Display mode | Normally Black | |
5 | Surface Treatment | AG | |
6 | Active area | 293.76(H) x 165.24(V)mm | |
7 | Module size | 305.2(H)X178.1(V)X2.6(T)mm | Note 1 |
8 | Brightness | 350cd/m2(type) | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | Free | |
11 | Interface | eDP | |
Note 1:Refer to Mechanical Drawing | |||
This 13.3″ 1920×1080 IPS eDP LCD display module meets the requirements of a variety of B2B display applications:
Industrial control panels and human-machine interfaces (HMIs)
Embedded computing screens and operator dashboards
Commercial kiosks and signage displays
Medical and diagnostic equipment screens
OEM electronics and bespoke product lines
Transport and vehicle display systems requiring compact high-resolution screens
Its combination of high resolution, anti-glare surface, and IPS wide-angle performance make it suitable for systems where visual clarity and multi-viewer presentation are essential.
| Procurement Feature | Benefit |
|---|---|
| Flexible Order Quantities | Supports sample evaluation up to bulk contracts |
| Competitive Bulk Pricing | Economical for mid- to large-volume procurement |
| OEM/ODM Customization | Mechanical, interface, surface options available |
| Pre-Shipment QA | Quality and performance verification reports |
| Technical Integration Support | Assistance with electrical, timing, driver integration |
| Long-Term Supply Assurance | Stable production suitable for enterprise lifecycle planning |
As an experienced industrial LCD display supplier, we help procurement and engineering teams secure reliable display modules and documentation needed for project success.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
TI133FI315 V02 13.3inch Toroson 2024.11.04.pdf
