AT070TN94
Innolux

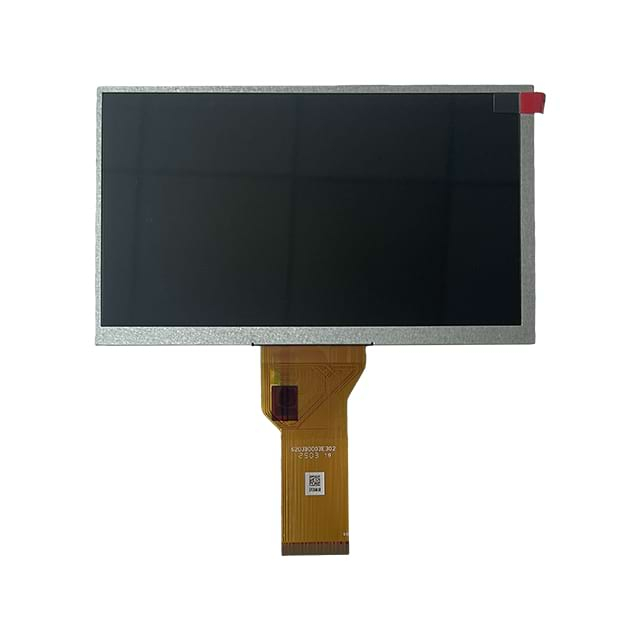

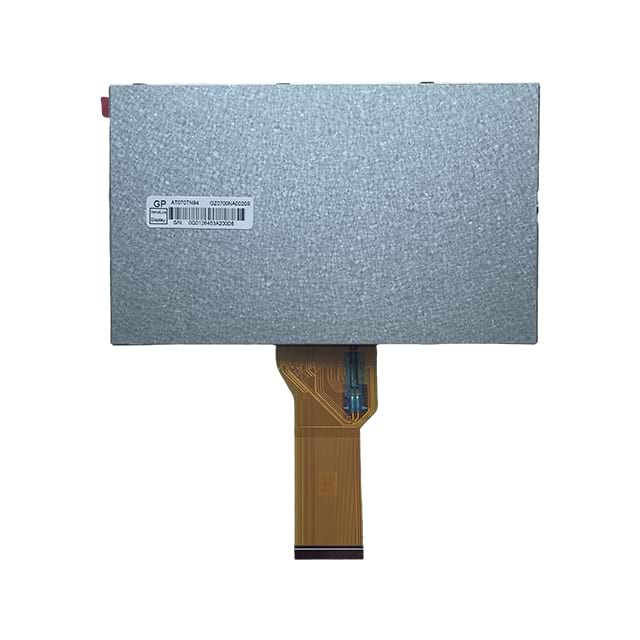

The Innolux AT070TN94 7-inch TFT LCD display module is a widely adopted industrial display solution designed for embedded systems, automotive applications, and human-machine interfaces (HMI). It features 800 × 480 (WVGA) resolution, a 50-pin TTL RGB interface, and a robust wide temperature range, making it highly suitable for demanding environments.
Built with a-Si TFT active matrix technology, this module delivers stable image performance, low power consumption, and reliable long-term operation. Its anti-glare surface enhances readability in industrial and semi-outdoor environments.
As a proven and mature model in the industrial LCD market, the AT070TN94 is widely used by OEM manufacturers requiring stable supply, easy integration, and cost-effective display solutions.
7-Inch WVGA Resolution
The 800×480 resolution provides clear UI rendering and balanced performance for embedded systems and control interfaces.
Standard 50-Pin TTL RGB Interface
Supports parallel RGB (TTL) interface, enabling easy integration with MCU, FPGA, and embedded processors.
High Brightness & Readability
Typical brightness of 400–500 cd/m² ensures visibility in indoor and industrial lighting conditions.
Wide Operating Temperature
Supports −30°C to 85°C, making it suitable for harsh industrial and automotive environments.
Industrial-Grade Reliability
Anti-glare surface treatment
Stable backlight system
Long lifecycle availability
No. | Item | Specification | Remark |
1 | LCD size | 7.0 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 800X3(RGB)X480 | |
4 | Display mode | Normally white, Trans-missive | |
5 | Dot pitch | 0.0642(W)X0.1790(H)mm | |
6 | Active area | 154.08（W)X85.92(H)mm | |
7 | Module size | 164.9(W)X100.0(H)X5.7(D)mm | Note 1 |
8 | Surface treatment | Anti-Glare | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | 50/70/70/70 | |
11 | Interface | Digital | |
12 | Backlight power consumption | 1.674W(Typ.) | |
13 | Panel power consumption | 0.226W(Typ.) | |
14 | Weight | 154g(Typ.) | |
15 | IC | EK79713 & EK73202 | |
16 | Inversion | 1+2dot | |
Note 1:Refer to Mechanical Drawing | |||
This 7-inch TFT LCD display module is widely used in B2B and industrial applications:
Industrial HMI control panels
Automotive displays & infotainment systems
Embedded systems & development boards
Medical equipment interfaces
Smart home control panels
Portable industrial devices
POS terminals and kiosks
Its mature design and wide compatibility make it a preferred choice for OEM and system integrators.
| Feature | Benefit |
|---|---|
| Original Innolux Panel | Stable quality and long lifecycle |
| Flexible MOQ | Sample + bulk order support |
| Competitive Pricing | Optimized for volume procurement |
| OEM Customization | Touch panel, cables, controller boards |
| Engineering Support | Datasheet + integration guidance |
| Supply Stability | Suitable for long-term projects |
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
7DD_AT070TN94(GP070ZAA0060S) Final Spec V01_20231118.pdf
