DJ070IA-20B
Innolux

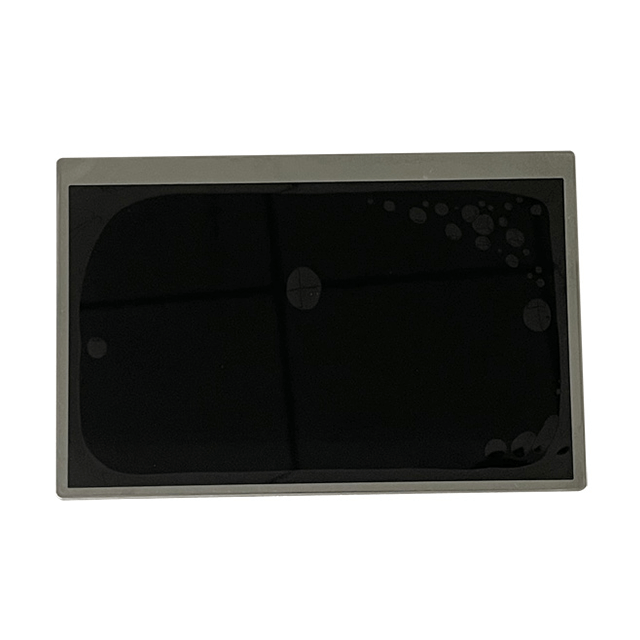

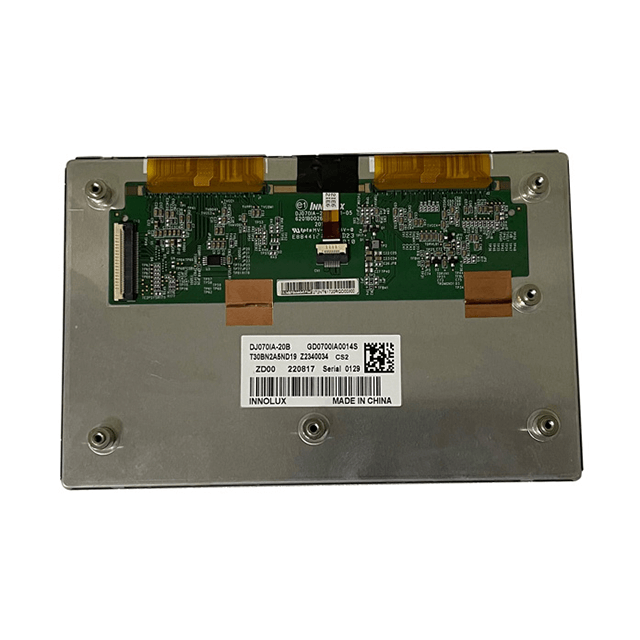

The DJ070IA-20B 7-inch automotive TFT LCD display module is a high-brightness industrial-grade panel designed for demanding environments such as automotive systems, outdoor equipment, and embedded industrial applications.
Featuring a 1280 × 768 resolution, LVDS interface, and ~930 cd/m² high brightness, this display ensures excellent visibility even under strong ambient light conditions. The panel adopts AAS (Advanced Super View) / IPS-like technology, delivering wide viewing angles and consistent color performance.
With an ultra-wide operating temperature range (up to −35°C to 80°C), the module is engineered for harsh environments, making it ideal for automotive displays, industrial HMIs, and outdoor terminals.
High Brightness for Outdoor & Automotive Use
Typical brightness of ~930 cd/m², ensuring sunlight readability
Suitable for dashboards, vehicle displays, and outdoor equipment
WXGA Resolution (1280×768)
Provides sharp image quality and detailed UI rendering
Ideal for modern automotive interfaces and embedded systems
Wide Viewing Angle (80/80/80/80)
Consistent display performance from all directions
Suitable for multi-angle viewing environments
Industrial Wide Temperature Range
Operating: −35°C to 80°C
Storage: −40°C to 95°C
Designed for extreme environments
LVDS Interface (1-Channel, 8-bit)
Stable high-speed signal transmission
Easy integration with embedded systems and automotive controllers
Automotive-Grade Reliability
AEC-Q qualified components (except connectors)
Suitable for long lifecycle and mission-critical applications
No. | Item | Specification | Remark |
1 | LCD size | 7.0 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 1280 × 3(RGB) × 720 | |
4 | Display mode | Normally Black, Transmissive, AAS | |
5 | Dot pitch | 0.1191 (W) × 0.1191 (H) mm | |
6 | Active area | 152.45 (W) × 91.47 (H) mm | |
7 | Module size | 163.35 x 107.12 x 6mm (excluding mounting features and PCBa components) | Note 1 |
8 | Surface treatment | AGLR | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | 85/85/85/85 (typ) | |
11 | Interface | 1-port LVDS (DE mode only) | |
12 | Backlight power consumption | (3.37)W (Max) | |
13 | Panel power consumption | (0.8) W (typ.) | |
14 | Weight | (180g+-10%) | |
Note 1:Refer to Mechanical Drawing | |||
This 7″ automotive high brightness LCD display module is widely used in B2B industries:
Automotive Displays – dashboards, infotainment, rear-seat systems
Industrial HMI Systems – machine control panels
Outdoor Equipment – kiosks, charging stations, POS terminals
Medical Devices – portable diagnostic systems
Embedded Systems – rugged tablets and smart terminals
Its combination of high brightness + wide temperature + LVDS interface makes it a preferred choice for automotive-grade display solutions.
| Feature | Benefit |
|---|---|
| Original Innolux Panel | Stable quality & long-term supply |
| Automotive-Grade Design | Suitable for harsh environments |
| Flexible MOQ | Sample to mass production |
| OEM Customization | Touch, brightness, interface options |
| Engineering Support | Datasheet, integration guidance |
| Global Supply | Fast delivery for international buyers |
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
