DJ123KC-01A
Innolux

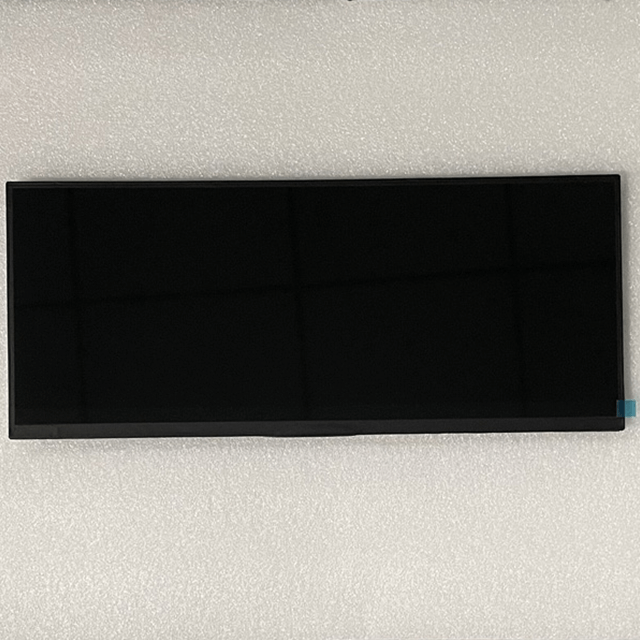

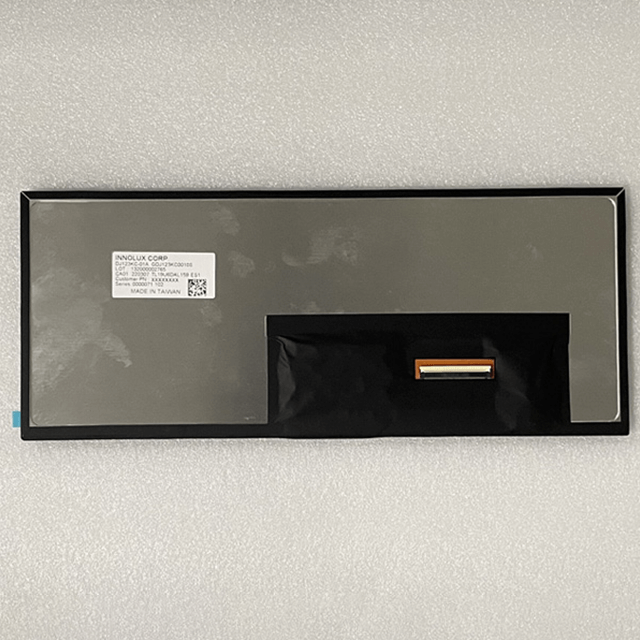

The Innolux DJ123KC-01A 12.3-inch TFT LCD display module is a high-brightness automotive-grade display designed for demanding environments such as vehicle dashboards, industrial control systems, and outdoor equipment.
Featuring a 1920 × 720 resolution (ultra-wide 8:3 format) and 1000 cd/m² high brightness, this panel ensures excellent visibility even under strong ambient light conditions. It adopts LTPS TFT technology with IPS-class wide viewing angles, delivering stable color performance and high contrast for critical display applications.
The display supports a dual-channel LVDS (2-port, 8-bit) interface, making it suitable for high-speed data transmission in automotive systems and embedded platforms. It is widely used in digital instrument clusters, infotainment systems, and industrial HMI solutions.
Ultra-Wide 12.3″ Automotive Display
The 12.3-inch stretched bar design (1920×720) is optimized for automotive dashboards and panoramic display interfaces.
High Brightness 1000 cd/m²
With 1000 nits luminance, the display ensures clear visibility under sunlight and high ambient lighting conditions, making it ideal for outdoor and in-vehicle use.
LTPS IPS Technology
The panel uses LTPS TFT with IPS-level viewing angles (80°/80°/80°/80°), delivering consistent image quality across all directions.
Dual-Channel LVDS Interface
Supports 2-channel LVDS (8-bit, 60-pin) for stable, high-speed signal transmission in embedded and automotive systems.
Automotive-Grade Wide Temperature
Operating temperature range of −30°C to 85°C ensures reliability in harsh automotive and industrial environments.
Optional In-Cell Touch Integration
Supports in-cell touch (PCAP) for advanced interactive applications such as smart dashboards and control panels.
No. | Item | Specification | Remark |
1 | LCD size | 12.3 inch (Diagonal) | |
2 | Driver element | LTPS TFT active matrix | |
3 | Resolution | 1920 × 3(RGB) × 720 | |
4 | Display mode | Normally Black, Transmissive, AAS | |
5 | Dot pitch | 0.1521 (W) × 0.1521 (H) mm | |
6 | Active area | 292.032 (W) × 109.512 (H) mm | |
7 | Module size | 300.03 (W) × 123.51 (H) × 6.7 (D) mm (Total Thickness) | Note 1 |
8 | Surface treatment | HC | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | 80/80/80/80 | |
11 | Interface | 2-port LVDS (DE mode only) | |
12 | Backlight power consumption | Typ. 9.486 W | Note 2 |
Note 1: Refer to Mechanical Drawing. | |||
Note 2: Base on IL = 80 mA | |||
This 12.3″ automotive LCD display module is widely used in high-end embedded and vehicle systems:
Automotive digital instrument clusters
In-vehicle infotainment systems
Smart cockpit displays
Industrial control dashboards
Outdoor high-brightness terminals
Transportation & logistics display systems
OEM embedded display platforms
Its ultra-wide format + high brightness + wide temperature tolerance makes it especially suitable for automotive-grade deployments.
| Feature | Benefit |
|---|---|
| Original Innolux Panel | Reliable quality & long-term availability |
| Automotive Grade | Designed for harsh environments |
| Bulk Procurement Support | Competitive pricing for large volume |
| OEM Customization | Touch, brightness, interface adaptation |
| Engineering Support | Datasheets, integration assistance |
| Stable Supply Chain | Suitable for long lifecycle projects |
