DD090IA-05A
Innolux

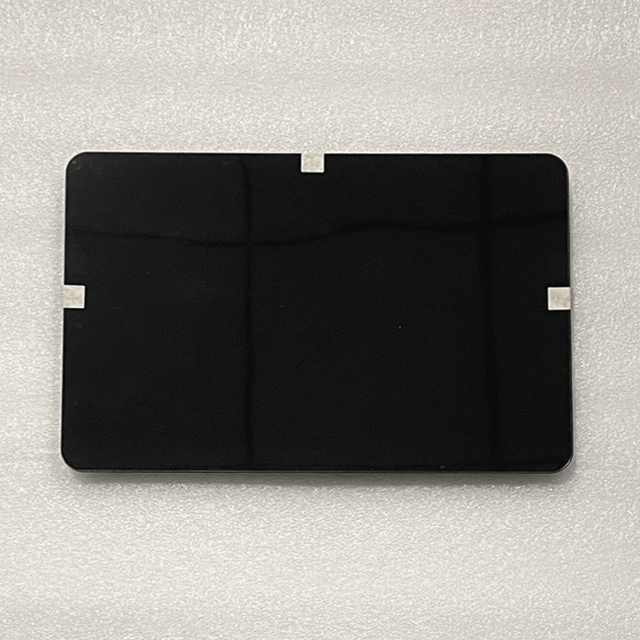

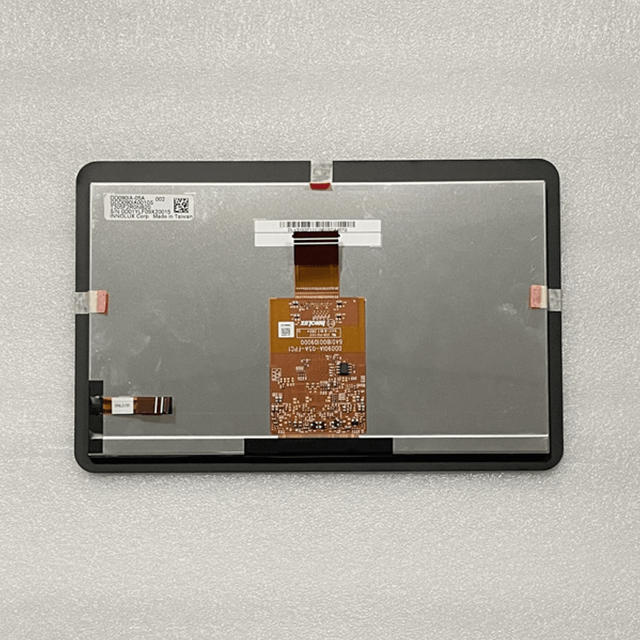

The 9-inch vehicle LCD display DD090IA-05A is a high-performance automotive-grade display module designed for demanding environments such as vehicle dashboards, smart cockpits, and industrial embedded systems. Featuring 1280 × 720 HD resolution, in-cell touch integration, and 1000 cd/m² high brightness, this display delivers excellent readability even under strong ambient light conditions.
Built with IPS technology and wide viewing angles, the module ensures consistent color and image quality from all directions. The 40-pin LVDS interface provides stable high-speed signal transmission, making it compatible with a wide range of embedded processors and automotive control systems.
This module is ideal for OEM manufacturers seeking a reliable automotive LCD display supplier for mass production and long-term supply.
High Brightness for Automotive Use
With 1000 cd/m² brightness, the display ensures clear visibility in sunlight and outdoor environments, making it suitable for in-vehicle applications.
HD Resolution (1280×720)
The WXGA (1280×720) resolution provides sharp image rendering for navigation systems, dashboards, and multimedia displays.
In-Cell Touch Integration
The in-cell touch technology integrates the touch sensor directly into the LCD structure, reducing thickness while improving touch responsiveness and optical clarity.
Wide Viewing Angle IPS Panel
The display supports 85° viewing angles in all directions, ensuring consistent image quality for driver and passenger visibility.
Industrial & Automotive Temperature Range
Designed for harsh environments, the module supports -30°C to 85°C operating temperature, ideal for automotive and outdoor systems.
Stable LVDS Interface
The 40-pin LVDS interface ensures low-noise, high-speed data transmission, widely used in automotive and industrial display systems.
No. | Item | Specification | Remark |
1 | LCD size | 9.0 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 1280 × 3(RGB) × 720 | |
4 | Display mode | Normally Black, Transmissive, AAS | |
5 | Dot pitch | 0.0518(W) × 0.1554(H) mm | |
6 | Active area | 198.912(W) × 111.888(H) mm | |
7 | Module size | 225(W) × 145(H) ×6.25(D) mm (Total Thickness) 210.5 (W) x 127(H) mm (BLU) | Note 1 |
8 | Surface treatment | HCLR | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | 85/85/85/85 (typ) | |
11 | Interface | 1-port LVDS (DE mode only) | |
12 | Backlight power consumption | (9.51)W | Note 2 |
13 | Panel power consumption | (0.7)W | |
14 | Weight | Max. 275g | |
Note 1:Refer to Mechanical Drawing | |||
Note 2:Base on IL = 120 mA | |||
This 9 inch automotive LCD display module is widely used in:
Automotive dashboards and digital instrument clusters
Smart cockpit and infotainment systems
In-vehicle navigation displays
Industrial vehicle control systems (forklifts, heavy machinery)
Transportation and fleet management terminals
Industrial HMI and outdoor embedded displays
OEM embedded display systems
Its high brightness + wide temperature + in-cell touch makes it particularly suitable for vehicle-mounted and outdoor applications.
| Feature | Benefit |
|---|---|
| Automotive-Grade Panel | Reliable performance in harsh environments |
| High Brightness Supply | Suitable for sunlight-readable applications |
| Bulk Order Support | Competitive pricing for large-volume procurement |
| OEM Customization | Touch, interface, bonding, brightness options |
| Engineering Support | Datasheets and integration assistance |
| Long-Term Availability | Stable supply for automotive lifecycle projects |
