JJ080IA-15A
Innolux

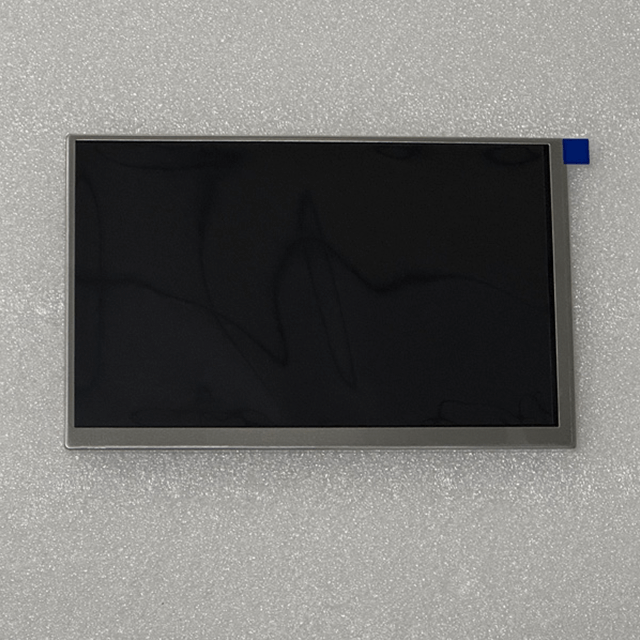

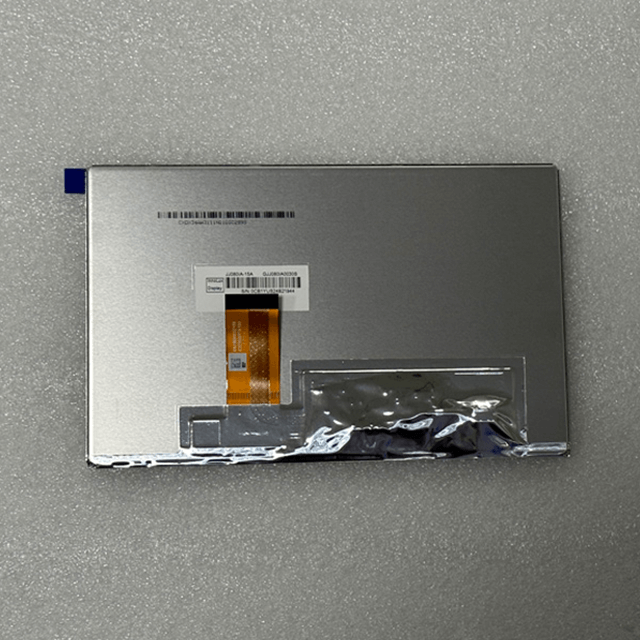

The Innolux JJ080IA-15A 8-inch TFT LCD display module is a high-brightness automotive-grade display designed for demanding environments such as vehicle dashboards, industrial control systems, and outdoor embedded applications.
Featuring 800 × 480 (WVGA) resolution, LVDS interface, and up to 1000 cd/m² brightness, this module delivers excellent visibility even under strong ambient light conditions. Its wide operating temperature range (−30°C to 85°C) ensures stable performance in extreme environments, making it ideal for automotive and industrial use cases.
The panel adopts a-Si TFT active matrix technology with WLED backlight, offering long service life and reliable operation for continuous-use applications.
High Brightness for Outdoor Visibility
With brightness reaching 920–1000 cd/m², the display ensures excellent readability in sunlight or high-ambient environments—critical for automotive and outdoor systems.
Automotive-Grade Wide Temperature Range
Supports −30°C to 85°C operation and −40°C to 90°C storage, ensuring stable performance in harsh environments such as vehicles and industrial sites.
Stable 40-Pin LVDS Interface
The 1-channel 8-bit LVDS interface provides reliable high-speed signal transmission, widely compatible with embedded processors and automotive systems.
Wide Viewing Angle (IPS/AAS-like)
Offers 85° viewing angles in all directions, ensuring consistent image quality from multiple viewing positions.
Anti-Glare Surface Treatment
The panel includes anti-glare coating, improving readability in bright environments and reducing reflection.
No. | Item | Specification | Remark |
1 | LCD size | 8.0 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 800 × 3(RGB) × 480 | |
4 | Display mode | Normally Black, Transmissive, AAS | |
5 | Dot pitch | 72.5um(W) x 217.5um(L) | |
6 | Active area | 174mm(H) x 104.4mm(V) | |
7 | Module size | 187.4mm(W) x 118mm(H) x 6.3mm(D) | Note 1 |
8 | Surface treatment | Anti-Glare | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | 85/85/85/85 (typ) | |
11 | Interface | LVDS | Note 1-2 |
12 | Backlight Power Consumption | 4.32 W (Typ.)/ 4.6 W(Max) | |
13 | Panel power consumption | 660mW(Typ) | |
14 | Weight | 205g | |
15 | Inversion method | Dot Inversion | |
Note 1:Refer to Mechanical Drawing | |||
Note 1-2: LVDS, 8-bit, DE mode, JEIDA/VESA format | |||
This 8-inch automotive LCD display module is widely used in:
Automotive dashboards & infotainment systems
Vehicle-mounted control displays
Industrial control panels (HMI)
Outdoor embedded systems
Medical and diagnostic equipment
Portable multimedia devices
Smart home and security systems
Its combination of high brightness + wide temperature + LVDS interface makes it particularly suitable for vehicle and industrial applications.
| Feature | Benefit |
|---|---|
| Original Innolux Panel | Stable quality and long-term availability |
| Automotive Grade | Suitable for harsh environments |
| Bulk Supply Support | Competitive pricing for OEM orders |
| Customization Available | Touch panel, driver board, cables |
| Engineering Support | Datasheets, pin definition, integration help |
| Global Logistics | Reliable international delivery |
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
8DD JJ080IA-15A product spec_20191115.pdf
