JE070IA-18J
Innolux

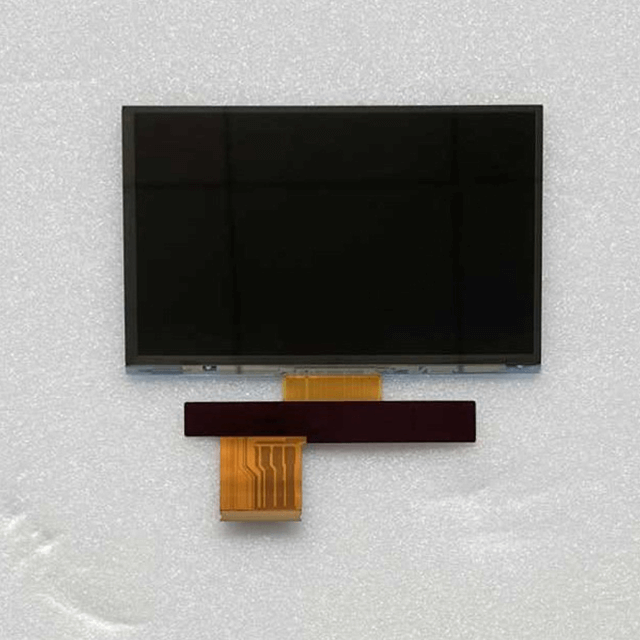

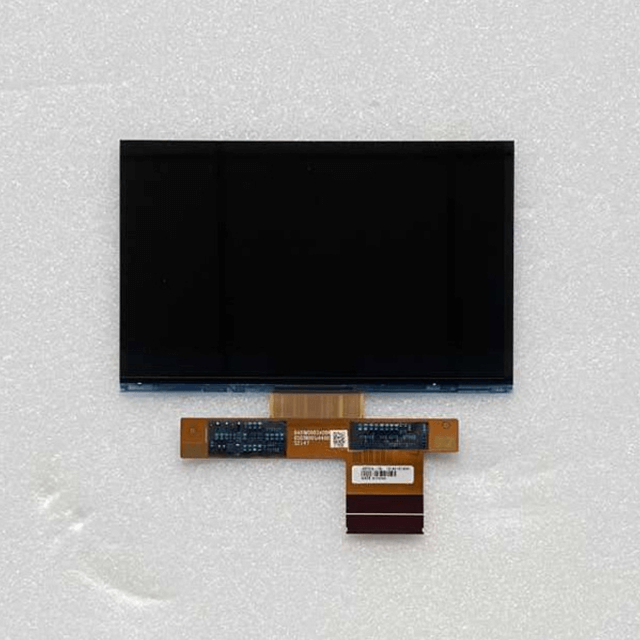

The Innolux JE070IA-18J 7-inch TFT LCD panel is a high-performance IPS display CELL (without backlight) designed primarily for automotive and industrial display systems. It features 800 × 480 WVGA resolution, TTL interface, and wide viewing angle IPS technology, delivering stable image performance for embedded applications.
Unlike standard LCD modules, this product is a bare LCD cell (no backlight included), allowing system integrators to customize the backlight unit according to project requirements. This makes it ideal for automotive displays, industrial HMI systems, and customized embedded display solutions.
The panel supports 60-pin TTL interface (1-channel, 8-bit) and operates at 3.3V, ensuring compatibility with various embedded control boards and automotive display controllers.
With a wide operating temperature range of −30°C to 85°C, the display is engineered for harsh environments such as vehicle systems and outdoor industrial equipment.
IPS Wide Viewing Angle
The panel adopts IPS technology, providing 80° viewing angles in all directions, ensuring consistent color and visibility from multiple perspectives.
800 × 480 WVGA Resolution
The WVGA resolution (800×480) delivers clear image rendering suitable for navigation systems, dashboards, and control interfaces.
No Backlight (CELL Type)
This model is supplied as a bare LCD cell without backlight, allowing:
Flexible backlight customization
Lower cost for OEM integration
Easier adaptation to automotive display designs
TTL Interface (60-Pin)
The TTL (RGB) interface with 60-pin FPC enables stable data transmission and easy integration with embedded systems.
Automotive-Grade Temperature Range
Supports −30°C to 85°C operating temperature, making it suitable for vehicle displays and industrial environments.
No. | Item | Specification | Remark |
1 | LCD size | 7.0 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 800X3(RGB)X480 | |
4 | Display mode | Normally black | |
5 | Pixel Pitch | 0.1905 (H) x 0.1905 (V) | |
6 | Active area | 152.4 x 91.44 mm | |
7 | Module size | 160.2(W)X101.7(H)X1.27(D)mm | |
8 | Surface treatment | HC | |
9 | Pixel Arrangement | RGB-stripe | |
10 | Display Colors | 16,777,216 (8bit color depth) | |
11 | Interface | 60pin FPC, Parallel 24bit RGB | |
13 | Panel power consumption | 0.615W(Typ.) |
This 7-inch Innolux TFT LCD CELL panel is primarily used in:
Automotive infotainment displays
Car navigation systems
Vehicle dashboard displays
Industrial control interfaces
Custom embedded display modules
Smart transportation systems
Due to its no-backlight design, it is especially suitable for OEM manufacturers developing customized LCD modules.
| Advantage | Description |
|---|---|
| Original Innolux Panel | Automotive-grade quality and reliability |
| CELL Type Supply | Ideal for customized LCD module development |
| Flexible Integration | Supports custom backlight and driver boards |
| Bulk Order Support | Competitive pricing for OEM projects |
| Long-Term Availability | Suitable for automotive lifecycle projects |
