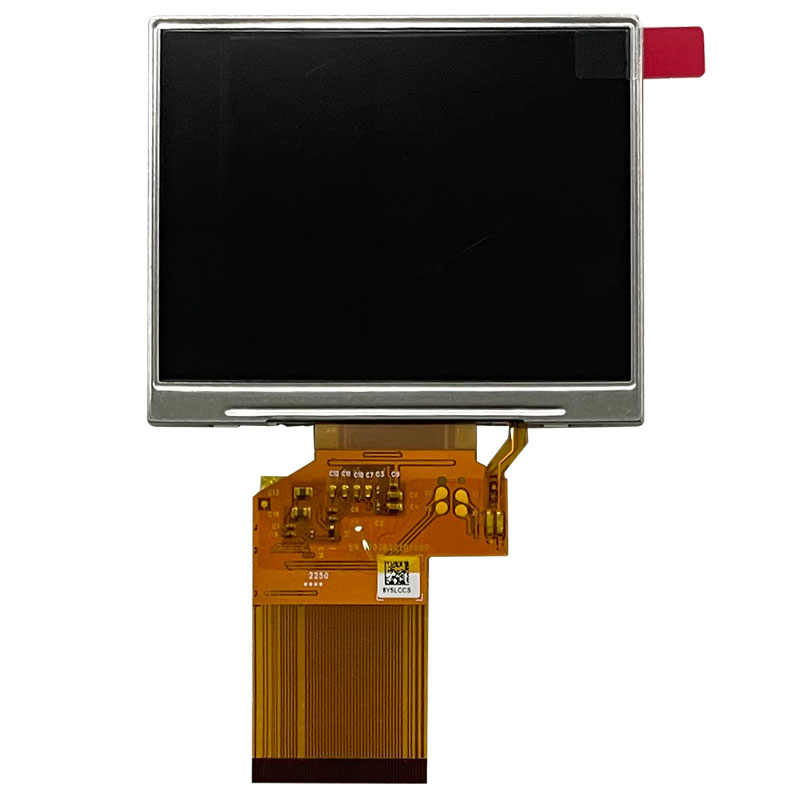

3.5 Inch Innolux TFT LCD Panel LQ035NC111 320*240 300cd/m2

5 0 Reviews
LQ035NC111 is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. The 3.45" color TFT-LCD panel isdesigned for GPS, camcorder, digital camera application and other electronic products which require high quality flat panel displays.

Product Characteristics
  • Size: 3.45"
  • Resolution: 320 RGB x 240
  • Aspect Ratio : 4:3
  • Brightness: 300cd/m2(Typ.)
  • Interface : 54pin FPC, TTL
  • Operating Temp.: -20 ~ 70 °C
  • Storage Temp.: -30 ~ 80 °C
Price: $ 19
Availability:
Quantity:
Buy Now

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • LQ035NC111

  • Innolux

No.

Item

Specification

Remark

1

Screen Size

3.45(Diagonal)

Inch

2

Display Mode

320 RGB x 240

Dot

3

Active area

70.08(H) x 52.56(V)

mm

4

Dot size

73x 219

um

5

Pixel Configuration

RGB-Stripe

6

Outline dimension

76.9(W) x 63.9(H) x 3.26(D)

mm

7

Display Mode

Normally Black

8

Surface treatment

Haze 20%

9

Display Garmut

NTSC 60%

10

Input Interface

Digital 24-bit RGB/SERIAL

RGB/CCIR656/CCIR601


11

Weight

30

g

12

View Angle direction

6 o’clock

13

Operation Temperature

-20~70

℃

14

Storage Temperature

-30~80

℃

LQ035NC111 Product Spec V.1 20170601.pdf
