TI070IPA01
Toroson

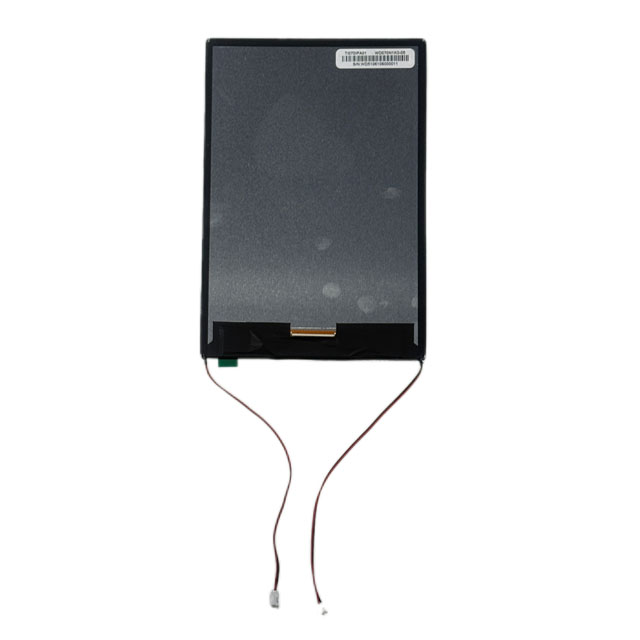

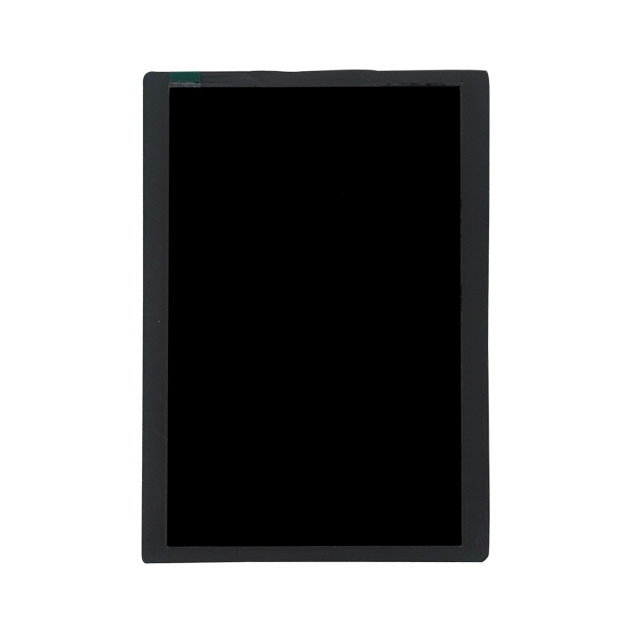

The Toroson 7-inch LCD Display Module integrates a high-resolution 1200×1920 (vertical WUXGA) screen with 1000 cd/m² high brightness, a 40-pin MIPI interface, and Projected Capacitive (PCAP) touch functionality — delivering superior visual clarity and intuitive touch response. This combination makes it ideal for industrial handheld devices, smart terminals, rugged tablets, kiosk displays, and OEM embedded systems where visibility and performance are paramount.
As a trusted industrial MIPI TFT LCD display supplier, we support bulk orders, sample evaluation, OEM/ODM customization, and technical integration guidance to help engineering and procurement teams accelerate product development and production.
Ultra-Sharp 1200×1920 Resolution: Portrait-oriented high vertical pixel count enhances clarity of UI elements and detailed graphics.
High Brightness (1000 cd/m²): Ensures excellent readability even under strong ambient light or partially outdoor conditions.
40-Pin MIPI Interface: Standard high-speed mobile interface for efficient signal communication with modern SoCs and display controllers.
PCAP Touch Integration: Projected capacitive touch panel offers accurate, multi-touch responsiveness for intuitive user interaction.
IPS TFT Panel: Offers wide viewing angles and accurate color reproduction, minimizing color shift when viewed off-axis.
Industrial & OEM Ready: Built to support rugged applications, human-machine interfaces (HMIs), handheld terminals, and custom OEM products.
B2B Procurement Support: Sample availability, volume pricing, and custom options support enterprise deployment needs.
No. | Item | Specification | Remark |
1 | LCD size | 7(digital) | |
2 | Pixel pitch | 26.25(H)X 78.75(V) | |
3 | Resolution | 1200 RGB(H)X 1920 (V) | |
4 | Display Mode | Normally Black | |
5 | Viewing Direction | 80/80/80/80 | |
6 | Active area | 94.5 (H) x 151.2 (V) | |
7 | Module size | 113(H)X163.3(V)X 4.5(T) | |
8 | Luminance | 1000cd/m2 | |
9 | Pixel arrangement | RGB Vertical stripe | |
10 | Interface | MIPI | |
11 | NTSC | 77% | |
12 | Operating Temperature | -20~70 | |
13 | Storage Temperature | -30~80 |
This 7″ 1200×1920 high brightness MIPI TFT LCD module with PCAP touch is well suited for a wide array of B2B applications:
Industrial Handheld Devices & Rugged Tablets – superior visibility and touch interaction.
Human-Machine Interfaces (HMIs) – intuitive control panels for factory automation.
Kiosks & Self-Service Terminals – interactive customer interfaces.
Automotive & Vehicle Displays – in-cab control displays and instrument screens.
Medical & Diagnostic Equipment – precise UI in medical measurement and monitoring devices.
OEM Embedded Systems – compact display solution for custom consumer and industrial products.
| Procurement Feature | Benefit to B2B Buyers |
|---|---|
| Flexible MOQ | Sample, small batch, and large volume orders accepted |
| Volume Pricing | Competitive pricing for enterprise-level procurement |
| Customization Options | Interface, mechanical, touch integration & brightness adjustments |
| Sample Evaluation Support | Evaluate display module performance in prototype systems |
| Quality Verification | Functional and visual testing prior to shipment |
| Technical Integration Support | Pinout, timing, and driver guidance |
| Supply Continuity | Reliable stock and production planning for OEM programs |
We partner with engineering and sourcing teams to ensure clarity, documentation, and supply alignment for your project lifecycle.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
TI070IPA01 7Inch Toroson Spec.-2024.04.18.pdf
