ZE121BC-02A
Innolux

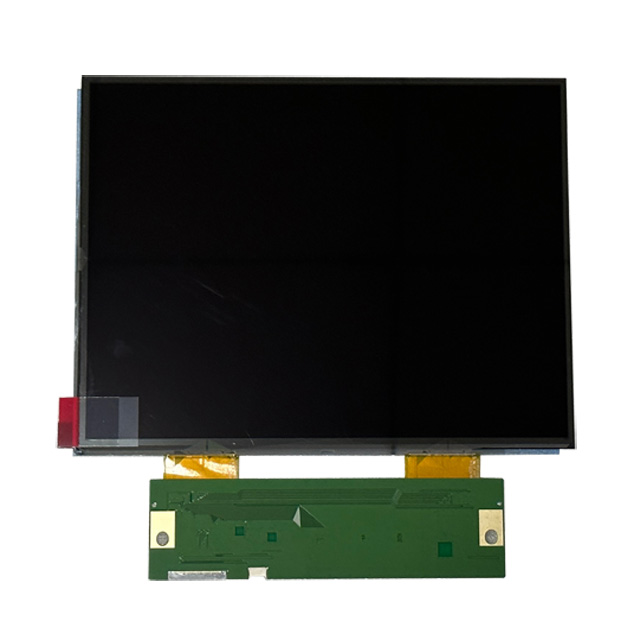

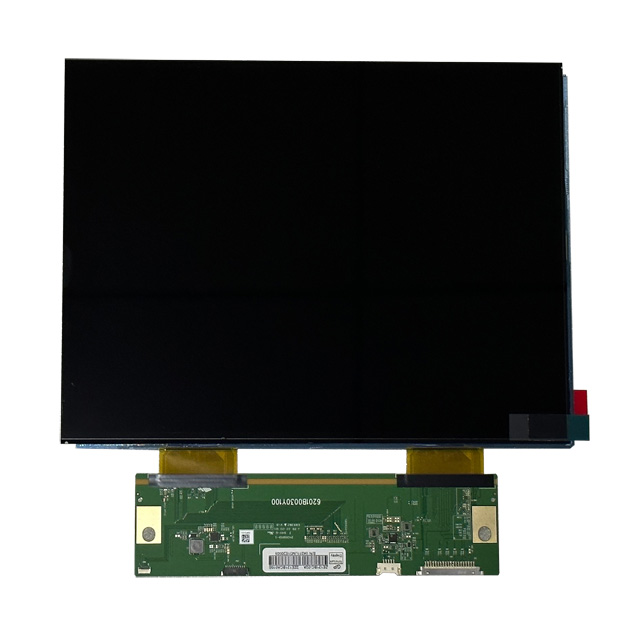

The Innolux ZE121BC-02A TFT LCD Cell is a 12.1-inch industrial-grade TFT LCD panel designed for human-machine interface (HMI), industrial automation systems, and embedded display applications.
Featuring 1024×768 XGA resolution, IPS wide viewing technology, and FOG (Glass-only) structure, this display cell offers excellent visual clarity, stable performance, and flexible integration for industrial OEM designs.
With its LVDS interface, durable construction, and compatibility with capacitive or resistive touch overlays, the panel is widely used in industrial control panels, medical devices, POS terminals, and embedded systems.
The display supports 1024 × 768 (XGA) resolution with RGB vertical stripe pixel arrangement, providing clear graphics and stable image performance for industrial interfaces.
IPS/AAS technology provides 89° viewing angles in all directions, ensuring consistent color and contrast even when viewed from extreme angles.
The panel is supplied as a FOG (Film-on-Glass) LCD cell, allowing OEM manufacturers to design their own backlight unit, touch panel, and controller board.
Designed for harsh environments with operating temperatures up to -30°C to 80°C, making it suitable for outdoor equipment and industrial automation.
Supports LVDS display interface, enabling easy integration with industrial SBCs, embedded boards, and LCD driver controllers.
No. | Item | Specification | Remark |
1 | LCD size | 12.1 inch(Diagonal) | |
2 | Display Type | Transmissive, a-Si | |
3 | Resolution | 1024X3(RGB)X768 | |
4 | Color arrangement | RGB-stripe | |
5 | Pixel Pitch(HxV) | 0.08 x 0.08mm | |
6 | Active area | 245.76 (H) x 184.32 (V) | |
7 | Module size | 256.18 (H) x 196.9 (V) x 1.27 (D) | |
8 | Surface treatment | AG | |
9 | Contrast Ratio(light on) | 1000:1(Type) | |
10 | View direction(Gray Inversion) | 80/80/80/80 | |
11 | Interface | LVDS | |
12 | Color Numbers | 256K/16.7 M | |
13 | Panel power consumption | Max:(1.353W )@white pattern | W |
14 | Weight | 157.2 (Typ) | g |
The ZE121BC-02A LCD display cell is widely used in industrial and embedded display systems:
PLC control panels
factory machine interfaces
SCADA monitoring systems
operator terminals
industrial control dashboards
diagnostic devices
monitoring systems
smart terminals
kiosk systems
POS terminals
| Feature | Benefit |
|---|---|
| Industrial 4:3 format | Compatible with legacy equipment |
| IPS technology | Excellent viewing angles |
| FOG design | Easy customization with touch |
| LVDS interface | Stable industrial connection |
| Long lifecycle panel | Suitable for industrial supply chains |
The Innolux ZE121BC-02A 12.1-inch LCD cell is a reliable industrial display solution for OEM equipment manufacturers requiring XGA resolution, IPS viewing angles, and extended temperature operation. Its FOG structure allows flexible customization and seamless integration into professional embedded display systems.
INX 12.1inch 1024x768 FOG_ZE121BC-02A_Product Spec.V0.5_20241231.pdf
