ZE104IA-03D
Innolux

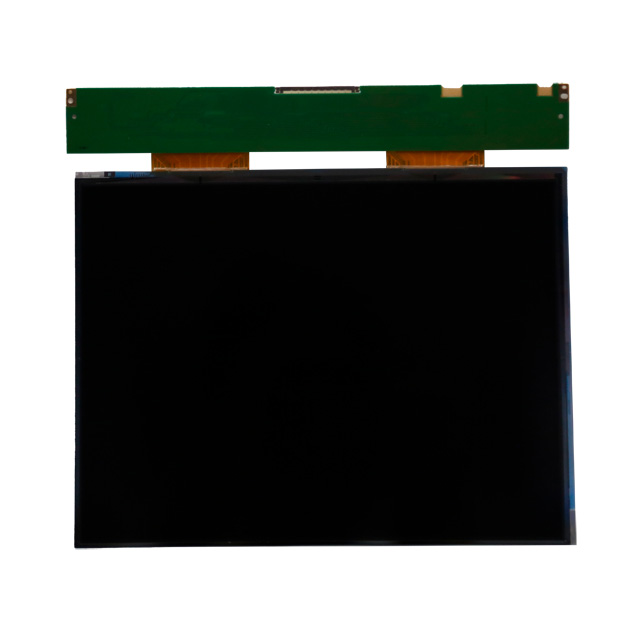

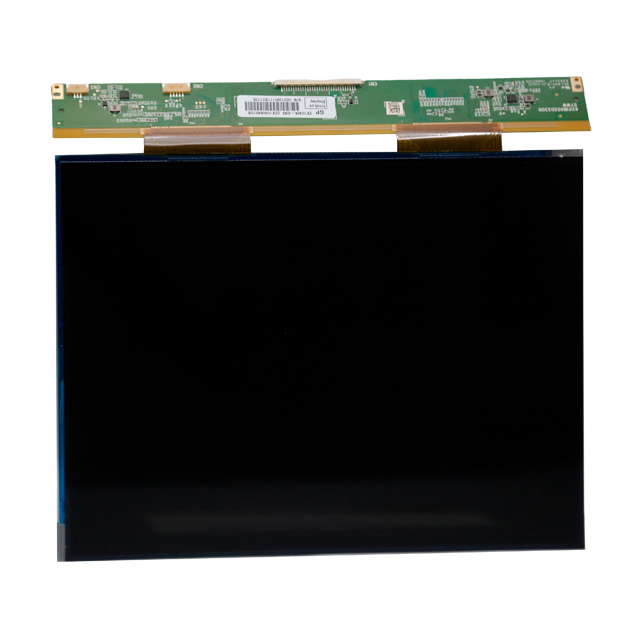

The Innolux ZE104IA-03D 10.4-inch IPS TFT LCD display panel delivers reliable visual performance with an XGA resolution (1024×768), wide viewing angles, and stable signal transmission via a 30-pin LVDS interface. With its robust design, anti-glare surface treatment and wide operating temperature range, it is suited for industrial control panels, embedded systems, automotive interfaces, and custom OEM products.
This panel is supplied without an integrated backlight (“no backlight”), but includes an LED driver backlight drive solution for flexible system integration. The wide viewing angles and IPS technology ensure consistent color and contrast across broad viewing positions — ideal for collaborative displays and shared user interfaces.
Full XGA Resolution: 1024×768 resolution balances clarity and performance for UI graphics and text.
IPS Wide Viewing Angles: Maintains image fidelity across multiple viewing directions — essential for shared displays on industrial HMIs and embedded systems.
LVDS Interface (30-Pin): Low-noise LVDS signal supports high-speed, reliable data transmission with mainstream embedded graphics controllers.
Industrial Temperature Tolerance: Operates reliably in environments from -30 °C to +80 °C and stores over the same range, enabling deployment in harsh industrial settings.
Anti-Glare Surface Treatment: Reduces reflection and improves readability under challenging lighting conditions.
Robust Contrast & Color: Typical contrast ratio ~1000:1 and standard 16.7M color support deliver balanced visuals for industrial UI and embedded display tasks.
B2B Procurement Ready: Supports sample evaluation, volume orders, OEM/ODM custom solutions, and long-term supply planning.
No. | Item | Specification | Remark |
1 | LCD size | 10.4 inch(Diagonal) | |
2 | Display Type | Transmissive, a-Si | |
3 | Resolution | 1024X3(RGB)X768 | |
4 | Color arrangement | RGB-stripe | |
5 | Pixel Pitch(HxV) | 0.2055(W) × 0.2055(H) mm | |
6 | Active area | 210.432 (H) x 157.824 (V) | |
7 | Module size | 220.53 (H) x 168.02 (V) x 1.04 (D) | |
8 | Surface treatment | AG | |
9 | Contrast Ratio(light on) | 1000:1(Type) | |
10 | View direction(Gray Inversion) | 80/80/80/80 | |
11 | Interface | LVDS | |
12 | Color Numbers | 256K/16.7 M | |
13 | Panel power consumption | Max:1.4W @white pattern | W |
14 | Weight | 100g(Typ) | g |
The Innolux 10.4″ IPS LVDS LCD display is widely adopted across B2B applications that demand reliable visual performance and robust operation:
Industrial Human-Machine Interfaces (HMIs) — Clear graphics for control panels and operator systems.
Embedded & Automation Systems — Reliable display integration for PLCs, robotics, and factory equipment.
Automotive Displays & Infotainment — Suitable for dashboards and vehicle interfaces under wide temperature conditions.
Medical & Diagnostic Equipment — Consistent color and stable visuals for professional instrumentation.
OEM & Custom Product Platforms — Ideal core display for custom electronics, kiosks, and embedded consoles.
Its combination of resolution, IPS wide viewing, and industrial temperature tolerance make it a preferred choice for engineering and procurement teams.
| Procurement Feature | Benefit |
|---|---|
| Sample Order Support | Test the panel before mass procurement |
| Volume Orders | Competitive pricing and reliable supply for enterprise contracts |
| Customization Services | Mechanical mounts, brightness tuning, and interface options |
| Quality Verification | Pre-shipment testing and documentation |
| Technical Support | Integration guidance for LVDS and system drivers |
| Long-Term Planning | Stable production support for OEM and industrial lifecycles |
We help B2B buyers and engineering teams streamline evaluation, integration and volume deployment of display modules.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
INX 10.4inch 1024x768 FOG_ZE104IA-03D_Product Specification_V1.1_20250211.pdf
