NJ101IA-01S
Innolux

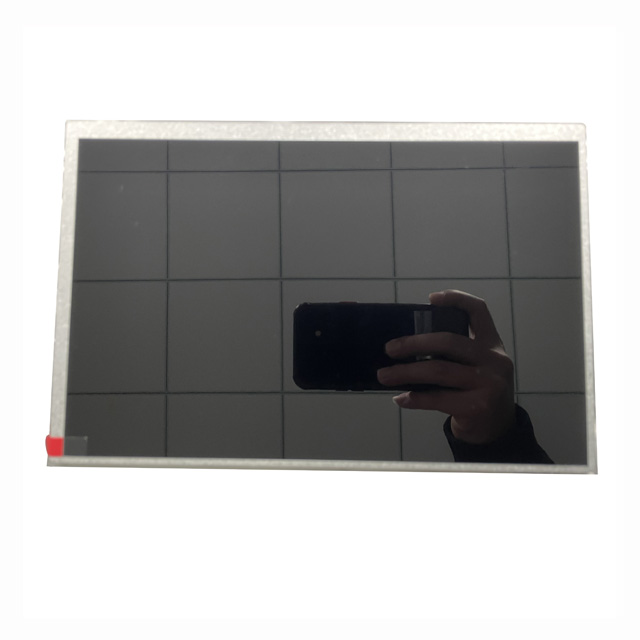

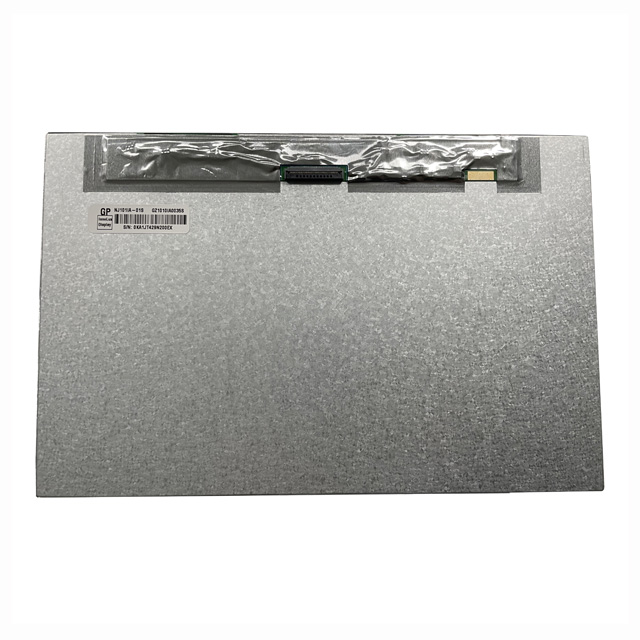

The Innolux NJ101IA-01S 10.1-inch IPS TFT LCD panel is a high-quality display module designed for industrial and embedded applications that require reliable performance, wide viewing angles, and stable signal connectivity.
With a 1280×800 WXGA resolution, 500 cd/m² brightness, and a 40-pin LVDS interface, this display delivers clear visuals and excellent readability across various environments. The IPS panel structure ensures minimal color distortion and consistent brightness when viewed from different angles.
This LCD panel is widely used in industrial automation systems, human-machine interfaces (HMI), medical devices, POS terminals, and embedded control platforms where dependable display performance and long lifecycle supply are essential.
The panel provides 1280×800 resolution with clear text rendering and sharp graphics, making it ideal for dashboards, UI interfaces and multimedia displays.
IPS technology ensures 85° viewing angles in all directions, maintaining accurate colors and contrast even when viewed from different positions.
Typical brightness reaches 500 cd/m², enabling good visibility in industrial environments or brightly lit indoor applications.
The display uses a 40-pin LVDS (1-channel, 8-bit) interface, widely supported by embedded processors, industrial controllers, and SBC platforms.
Supports reliable operation in −20 °C to 70 °C, suitable for industrial equipment and outdoor electronics.
No. | Item | Specification | Remark |
1 | LCD size | 10.1 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 1280 × 3(RGB) × 800 | |
4 | Display mode | Normally black, Trans-missive | |
5 | Dot pitch | 0.0565(W) × 0.1695(H) mm | |
6 | Active area | 216.96(W) × 135.60(H) mm | |
7 | Module size | 229.46(W) ×149.1(H) ×4.8(D) mm | Note 1 |
8 | Surface treatment | HC | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | free | |
11 | Interface | LVDS | |
12 | Backlight power consumption | 4.68W(Typ.) | |
13 | Panel power consumption | 0.7W(Typ.) | Note 2 |
14 | Weight | 270.5 g(Typ) | |
15 | Version | 1+2line | |
16 | IC | ILI6192*2+ILI5801*1 | |
Note 1:Refer to Mechanical Drawing | |||
Note 2: Including power IC consumption, white pattern | |||
The 10.1-inch IPS LCD panel NJ101IA-01S is widely used in professional electronic devices including:
Factory control panels, PLC displays, equipment dashboards.
ARM embedded boards, industrial SBCs, Android/Linux display terminals.
Industrial tablets, rugged handheld computers, and medical tablets.
Retail POS systems, self-service terminals, ticket machines.
Patient monitoring systems, laboratory equipment interfaces.
| Procurement Feature | Benefit |
|---|---|
| Original Brand Panel | Authentic Innolux LCD with stable supply |
| Flexible MOQ | Sample orders to large production runs |
| Bulk Pricing | Competitive enterprise procurement pricing |
| OEM Customization | Touch panel, driver board, or housing integration |
| Technical Support | Datasheets, pinout guidance, and integration help |
| Long Lifecycle Supply | Suitable for industrial product lifetimes |
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
