AT070TN94
Innolux

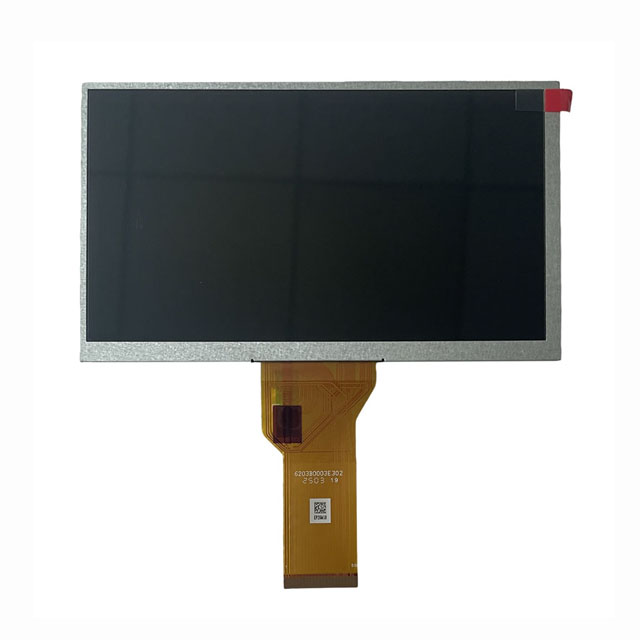

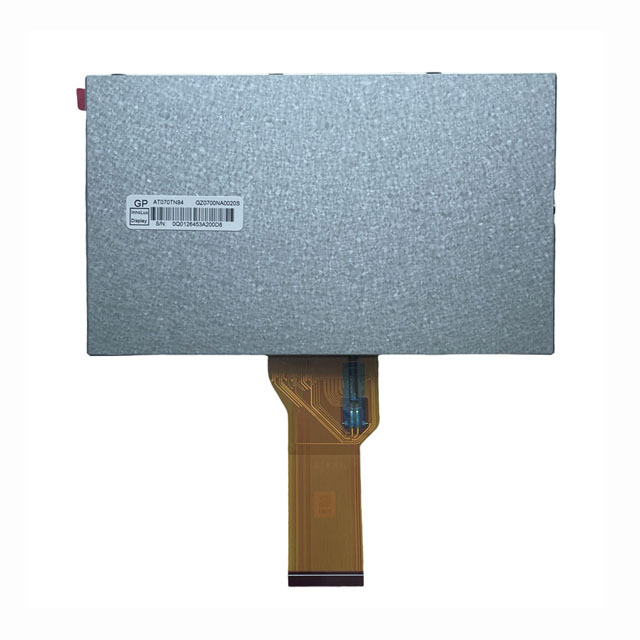

The Innolux AT070TN94 is a high-reliability 7-inch TFT LCD module featuring an 800×480 (WVGA) resolution and a 50-pin parallel RGB TTL interface, designed for embedded, industrial, and automotive display applications. With a typical brightness of 400 cd/m², anti-glare surface treatment, and wide temperature support, this display module offers robust performance for demanding environments. As a dedicated industrial TFT LCD display supplier, we support bulk procurement, OEM/ODM customization, and technical integration guidance for B2B buyers.
Large 7-inch Display Area: 800×480 WVGA resolution provides clear graphics in a compact form factor.
High Brightness Panel: Typical luminance of 400 cd/m² ensures readability in indoor and moderate ambient light settings.
50-Pin TTL RGB Interface: Parallel RGB signal interface (1 channel, 6/8-bit selectable) simplifies driver connection and system integration.
Wide Operating Temperature: Reliable performance from -30 °C to +85 °C, suitable for industrial environments.
Robust Construction: Anti-glare surface treatment and a-Si TFT active matrix panel improve durability and readability.
B2B Procurement Focus: Supports sample evaluation, scalable volume purchase, customization of interface and accessories, driver boards, and touchscreen options.
No. | Item | Specification | Remark |
1 | LCD size | 7.0 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 800X3(RGB)X480 | |
4 | Display mode | Normally white, Trans-missive | |
5 | Dot pitch | 0.0642(W)X0.1790(H)mm | |
6 | Active area | 154.08（W)X85.92(H)mm | |
7 | Module size | 164.9(W)X100.0(H)X5.7(D)mm | Note 1 |
8 | Surface treatment | Anti-Glare | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | 50/70/70/70 | |
11 | Interface | Digital | |
12 | Backlight power consumption | 1.674W(Typ.) | |
13 | Panel power consumption | 0.226W(Typ.) | |
14 | Weight | 154g(Typ.) | |
15 | IC | EK79713 & EK73202 | |
16 | Inversion | 1+2dot | |
Note 1:Refer to Mechanical Drawing | |||
The AT070TN94 7-inch TFT LCD module is widely adopted in multiple B2B scenarios:
Industrial automation and control panels
Embedded devices and HMI screens
Automotive instrument clusters and infotainment
Medical equipment displays
Consumer electronics with display interfaces
OEM/ODM product integration requiring robust, compact LCD modules
We support procurement professionals with solutions including compatible driver boards, optional touchscreen modules, mounting frames, and interface harnesses.
| Procurement Item | Benefit |
|---|---|
| MOQ Flexibility | Sample orders and scalable volume procurement |
| Customization Options | Interface cables, driver boards, touch panel integration |
| Sample Evaluation | Evaluate display performance before mass orders |
| Quality Assurance | Thorough testing and documented performance |
| Technical Support | Integration guidance and documentation |
| Long-Term Supply | Stable stock and production readiness |
As a professional industrial LCD module supplier, we understand the needs of engineering and procurement teams, ensuring reliable supply and responsive support throughout your product lifecycle.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet]
AT070TN94 Final Spec(V1.0)_(T1 NGB)20231110.pdf
