VL097IA13 V.1
Toroson

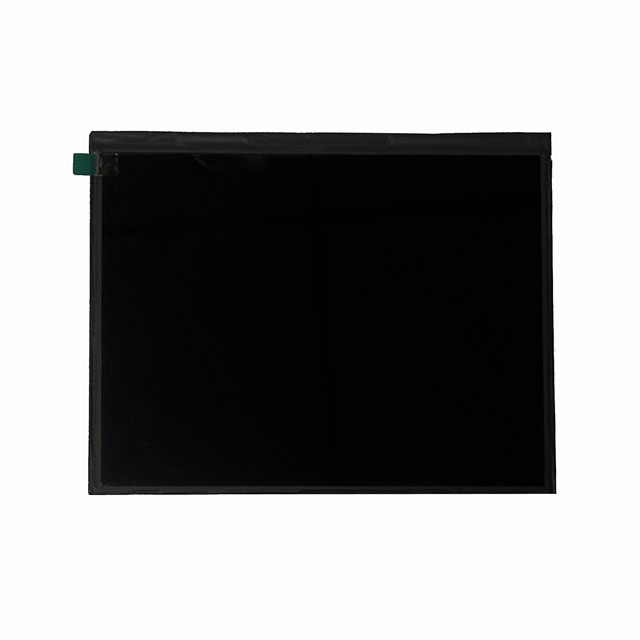

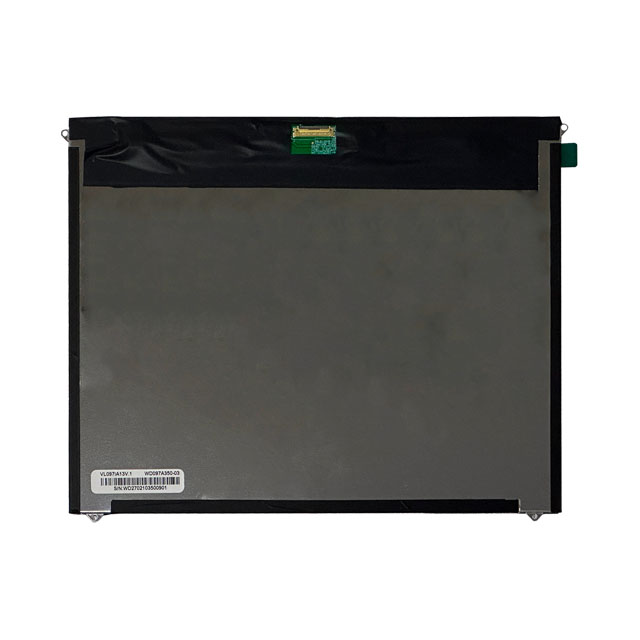

The Toroson 9.7-inch TFT LCD display module delivers reliable visual performance with a 1024×768 XGA resolution, standard 30-pin LVDS interface, and a 300 cd/m² typical brightness level. Designed for industrial and embedded applications, this flat plain-surface panel offers stable signal communication, balanced visual clarity, and ease of integration into a variety of systems.
As a professional industrial LVDS LCD display supplier, we support bulk procurement, sample orders, OEM/ODM customization, and technical integration assistance to help engineering and procurement teams fulfill project requirements efficiently.
9.7-Inch XGA Display: The 1024×768 resolution balances pixel clarity and system cost, suitable for UI screens, dashboards, industrial HMIs, and embedded terminals.
300 cd/m² Brightness: Typical luminance for reliable readability in indoor environments and moderate ambient light.
30-Pin LVDS Interface: Low-noise, high-speed LVDS interface ensures stable digital signal transmission between controller boards and the panel.
Plain Surface Front: Standard front without anti-glare coating, ideal for controlled indoor lighting conditions.
Industrial Reliability: Panel construction optimized for long lifecycle products and continuous operation in industrial systems.
B2B Procurement Focus: Supports sample evaluation orders, large volume contracts, and customization to match interface, brightness, or mounting requirements.
No. | Item | Specification | Remark |
1 | LCD size | 9.7 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 1024X3(RGB)X768 | |
4 | Display mode | Normally Black, Trans-missive | |
5 | Dot pitch | 0.192(W)x0.192(H) mm | |
6 | Active area | 196.608(W)x147.456(H) mm | |
7 | Module size | 210.16(W)x164.25(H)x2.85(D)mm | Note 1 |
8 | Surface treatment | Plain | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | Free | |
11 | Interface | LVDS | |
12 | Backlight power consumption | 2.232W (Typ.) | |
13 | Panel power consumption | 0.7W(Typ.) | |
14 | Weight | 212g (Typ.) | |
Note 1:Refer to Mechanical Drawing | |||
This 9.7″ 1024×768 LVDS TFT LCD display module is highly suitable for a broad range of B2B projects, including:
Industrial Human-Machine Interfaces (HMIs) and factory control terminals
Embedded systems and instrumentation displays
Medical equipment screens and diagnostic UIs
Automotive dashboards and in-vehicle displays
Kiosks, POS/POC terminals, and interactive terminals
OEM products requiring reliable display modules with standard interfaces
The panel’s resolution, standard LVDS interface, and balanced brightness make it a go-to choice for engineering teams needing robust display components for long-term production.
| Procurement Element | Benefit to B2B Buyers |
|---|---|
| Minimum Order Flexibility | Accepts samples through large volume orders |
| Customization Services | Panel interface, brightness, surface treatment, mounting options |
| Bulk Pricing Available | Competitive pricing for long-term contracts |
| Sample Evaluation Support | Prototype testing before full procurement |
| Technical Integration Assistance | Guidance on pinout, timing, and driver setup |
| Quality Assurance | Pre-shipment verification and documentation |
| Stable Supply Chain | Reliable stock for continuous production |
We partner with engineering and procurement managers to secure dependable display modules that meet schedule, quality, and supply expectations.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
VL097IA13 V.1 9.7inch Spec. Toroson 20190625.pdf
