AT056TN53 V.1
Innolux

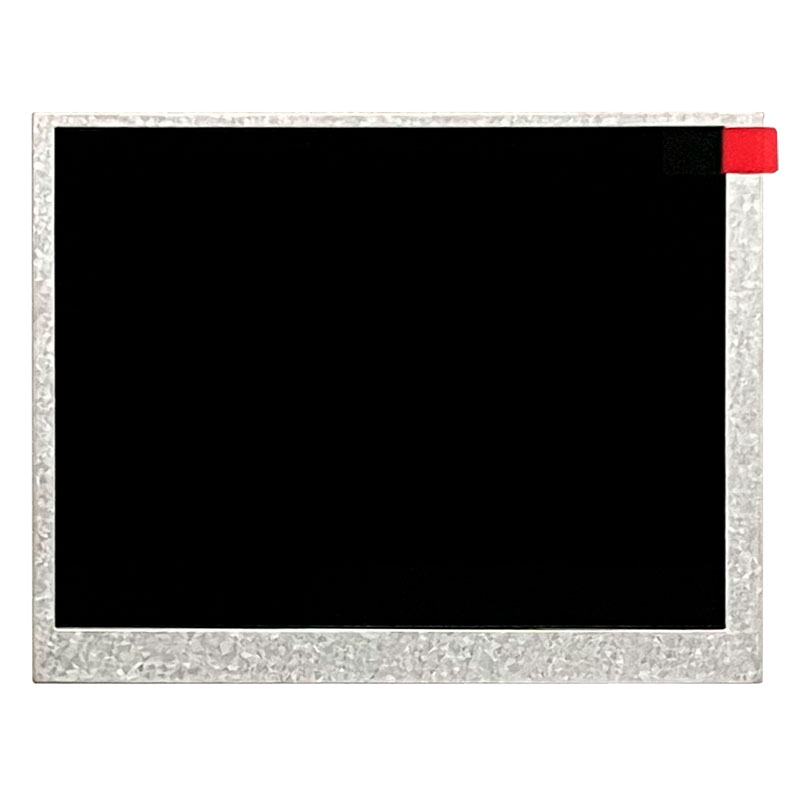

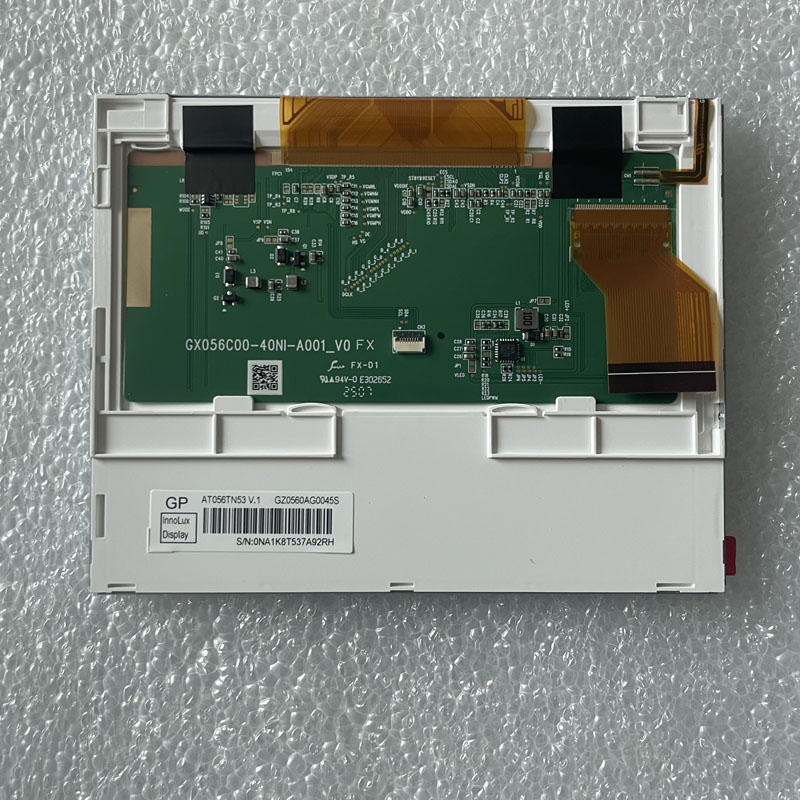

The Innolux AT056TN53 V.1 5.6-inch TFT LCD panel is a reliable VGA display module designed for industrial and embedded applications. It features 640 × 480 resolution (VGA), 350 cd/m² brightness, and a parallel RGB interface, delivering stable image performance and easy integration for industrial systems.
Built on a-Si TFT-LCD technology, this module offers consistent color output, low power consumption, and long operational life. The panel integrates a WLED backlight with up to 20,000 hours lifetime, making it suitable for continuous operation environments.
With a standard 40-pin FPC RGB interface, the display can be easily integrated into MCU, FPGA, and embedded platforms used in industrial control, medical devices, and smart terminals.
VGA 640 × 480 Resolution
The 640 × 480 resolution ensures clear graphics and stable display performance for industrial interfaces and embedded GUI systems.
350 cd/m² Industrial Brightness
With 350 cd/m² luminance, the panel provides reliable visibility in indoor and semi-industrial environments.
Parallel RGB Interface (TTL)
The module supports a parallel RGB (TTL) interface, enabling fast signal transmission and compatibility with common embedded processors.
Long-Life LED Backlight
The integrated WLED backlight system offers up to 20K hours lifespan, reducing maintenance cost in long-term industrial deployment.
Industrial Temperature Range
Supports −20°C to 70°C operating temperature, suitable for demanding industrial environments.
No. | Item | Specification | Remark |
1 | LCD size | 5.6 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 640 × (RGB) × 480 | |
4 | Display mode | Normally white, Trans-missive | |
5 | Dot pitch | 0.0588(W) × 0.1764(H) mm | |
6 | Active area | 112.896 (W) × 84.672(H) mm | |
7 | Module size | 126.5(W) × 100(H) × 5.7(D) mm | Note 1 |
8 | Surface treatment | Anti-Glare | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | 50/70/70/70 | |
11 | Interface | Digital | |
12 | Backlight power consumption | 1.90W(Typ.) | Note 2 |
13 | Panel power consumption | 0.66 W(Typ.) | Note 3 |
14 | Weight | 83.1g(Typ.) | |
Note 1:Refer to Mechanical Drawing | |||
Note 2: Including LED Driver power consumption. | |||
Note 3: Including T-con Board power consumption @ black pattern. | |||
The 5.6-inch Innolux TFT LCD module is widely used in industrial and embedded systems, including:
Industrial HMI (Human Machine Interface)
Medical diagnostic equipment
Smart home control panels
Video door phones & intercom systems
Industrial handheld terminals
POS systems and kiosks
Embedded control systems
Its VGA resolution + RGB interface makes it especially suitable for legacy industrial systems that require stable, low-latency display solutions.
| Advantage | Description |
|---|---|
| Original Innolux Panel | Guaranteed quality and stability |
| Long Lifecycle Supply | Ideal for industrial OEM projects |
| Bulk Pricing Support | Competitive quotes for large orders |
| Customization Available | Touch panel, brightness, interface |
| Engineering Support | Datasheets and integration guidance |
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
AT056TN53 V.1 GZ0560AG0045S Final SPEC V02_20240220 .pdf
