AT090TN12 V.3
Innolux

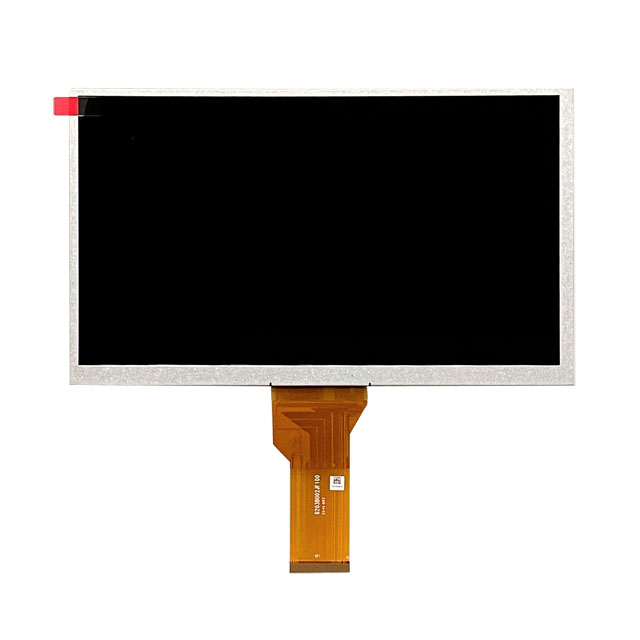

The Innolux AT090TN12 V.3 9-inch TFT LCD display module is a mature and stable industrial display solution designed for embedded systems, industrial control equipment, and OEM devices. It features 800 × 480 (WVGA) resolution, TTL RGB interface, and a WLED backlight system, delivering reliable performance and cost-effective integration.
This panel adopts TN (Normally White) display technology, offering fast response time and efficient power consumption. With a wide operating temperature range (−20°C to 70°C) and proven long-term supply stability, it is widely used in industrial applications requiring durability and compatibility.
The module is commonly integrated into industrial HMIs, portable devices, vehicle displays, and embedded terminals, making it a practical choice for B2B buyers seeking scalable procurement and long lifecycle support.
✔ 9-Inch WVGA Resolution
The 800×480 resolution provides sufficient clarity for UI dashboards, control panels, and multimedia interfaces.
✔ Standard TTL RGB Interface (50-Pin)
Supports 1-channel 6/8-bit TTL interface, ensuring compatibility with MCU, FPGA, and embedded processors.
✔ Industrial Temperature Range
Designed for demanding environments with −20°C to 70°C operating range, suitable for industrial and outdoor applications.
✔ WLED Backlight (Long Lifetime)
Integrated LED backlight provides stable brightness (~250 cd/m²) and long operational lifespan (~20K hours).
✔ Flexible Touch Integration
Supports optional resistive or capacitive touch panels, enabling HMI development.
No. | Item | Specification | Remark |
1 | LCD size | 9.0 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 800X3(RGB)X480 | |
4 | Display mode | Normally white, Trans-missive | |
5 | Dot pitch | 0.0825(W) × 0.2327(H) mm | |
6 | Active area | 198.000(W) × 111.696(H) mm | |
7 | Module size | 211.1(W)×126.5(H)×5.9(D) mm | Note 1 |
8 | Surface treatment | Anti-Glare | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | 6 O’Clock | |
11 | Interface | Digital | |
12 | Backlight power consumption | 2.046W(Typ.) | |
13 | Panel power consumption | 0.3W(Typ.) | @black pattern |
14 | Weight | 243g(Typ.)+/-5% | |
15 | IC | EK79713BCGB&EK73202ACGB | |
16 | Inversion | 1+2dot | |
Note 1:Refer to Mechanical Drawing | |||
This 9-inch industrial TFT LCD display module is widely used in:
Industrial control panels (HMI)
Embedded systems & SBC interfaces
Automotive and vehicle displays
Medical equipment interfaces
Portable media devices & handheld terminals
Smart home control panels
OEM embedded display solutions
Its balance of cost, reliability, and compatibility makes it a common choice in mid-range industrial display projects.
| Feature | Benefit |
|---|---|
| Original Innolux Panel | Stable quality & consistent batches |
| Mature Product Lifecycle | Long-term availability for OEM projects |
| Flexible MOQ | Sample + bulk production supported |
| Customization | Touch panel, controller board, cables |
| Engineering Support | Datasheet + integration guidance |
| Global Supply | Stable shipping for international buyers |
