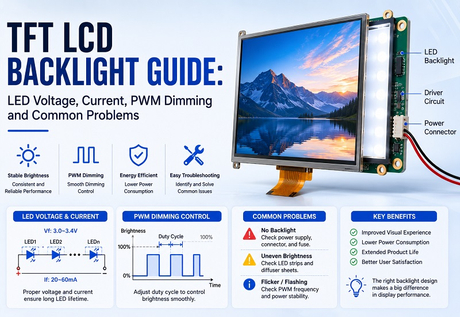

TFT LCD Backlight Guide: LED Voltage, Current, PWM Dimming and Common Problems

The TFT LCD backlight provides the light required to make text, graphics, and images visible. It also represents a major part of the display’s power consumption, heat generation, brightness performance, and practical service life.

Many LCD integration problems occur because the backlight is treated as part of the panel logic circuit. In reality, the LCD image circuit and the LED backlight are separate electrical systems with different voltage, current, control, and protection requirements.

Quick Engineering Recommendation

Use a constant-current LED driver when the TFT LCD exposes raw LED anode and cathode connections.

Use PWM or analog dimming only within the frequency, voltage, and duty-cycle limits specified by the backlight driver.

Do not apply the LCD logic voltage directly to the backlight unless the module contains an integrated backlight driver designed for that input.

Confirm brightness using the complete assembly, including the touch panel, cover glass, coating, bonding method, and operating environment.

TFT LCD Backlight Terms at a Glance

The exact backlight voltage and current must come from the datasheet for the specific LCD model. Screen size, brightness, or connector pin count cannot be used to estimate a safe value.

What Is a TFT LCD Backlight?

Liquid crystal material controls the passage of light but does not normally create visible light by itself. A transmissive TFT LCD therefore requires a separate light source behind the LCD cell.

Most modern TFT LCD modules use white LEDs because they provide:

• High luminous efficiency

• Compact size

• Fast startup

• Wide dimming capability

• Long practical service life

• Good availability across different display sizes

A complete backlight unit may contain:

• White LEDs

• LED circuit board or flexible circuit

• Light guide plate

• Reflector film

• Diffuser sheets

• Prism or brightness-enhancement films

• Mechanical frame

• Thermal path

The article Key Components of a TFT LCD Module explains how the backlight, LCD cell, polarizers, driver electronics, FPC, and touch panel work together.

Important distinction: The brightness listed for a TFT LCD is the luminance measured at the front of the finished panel. It is not simply the raw brightness of the individual LEDs.

LCD Logic Power vs Backlight Power

A TFT LCD normally contains two separate power sections:

The logic section may operate at a relatively low regulated voltage, while a series LED string may require a considerably higher voltage.

This means a display can show one of several different conditions:

• The LCD logic works but the backlight is off, producing a very dark image.

• The backlight works but the LCD data circuit does not, producing a bright white or blank-looking screen.

• Both sections work normally.

• Both sections are off because of a power or connector fault.

Safety rule: Never assume that the logic-power pin and backlight-power pin use the same voltage. Verify both circuits independently in the panel specification.

How an LED Backlight Is Electrically Arranged

Backlight LEDs are usually connected in one or more series strings.

Single LED String

A compact TFT module may use one series string. The same current flows through every LED in that string.

The driver must provide enough voltage to overcome the combined forward voltage of all LEDs while maintaining the specified current.

Multiple LED Strings

Larger or higher-brightness displays may use several parallel strings.

Each string should receive balanced current. Uneven current can cause:

• Brightness non-uniformity

• Hot spots

• Uneven LED aging

• Color-temperature differences

• Early backlight failure

Edge-Lit Backlight

Many compact and medium-size TFT panels place the LEDs along one or more edges. A light guide plate distributes the light across the active area.

Edge-lit designs can provide a thin module profile but require careful optical-film and light-guide design to control uniformity.

Direct-Lit Backlight

In a direct-lit structure, LEDs are distributed behind the display area. This arrangement may be used in some larger, thicker, or specialized high-brightness displays.

It can provide strong output but requires enough optical distance to prevent visible LED patterns.

What Is TFT LCD Backlight Voltage?

Backlight voltage is the electrical potential required by the LED string or driver circuit.

The required voltage depends on:

• The number of LEDs connected in series

• The forward voltage of each LED

• The operating current

• LED temperature

• The number of strings

• The driver topology

• Manufacturing tolerance

LED forward voltage is not a fixed resistance. It changes with current, temperature, and component variation.

For this reason, applying a fixed voltage without current regulation can lead to unstable current.

Why the Driver Needs Voltage Headroom

The LED driver must provide a voltage slightly higher than the total forward voltage of the LED string so that it can regulate current correctly.

If the available output voltage is too low:

• The backlight may not start.

• Brightness may be lower than expected.

• The display may flicker at high brightness.

• Current regulation may become unstable.

• Some LED strings may illuminate while others remain dim.

Can Backlight Voltage Be Measured With a Multimeter?

It can be measured, but the result must be interpreted carefully.

The measured voltage may change with:

• PWM duty cycle

• Backlight brightness setting

• Open-load protection

• Driver startup sequence

• Meter response speed

• LED temperature

A multimeter reading alone does not confirm that the current is correct or that the driver is stable.

Engineering recommendation: Use the panel datasheet, driver specification, current measurement, and oscilloscope waveform together when diagnosing a backlight circuit.

Why LED Backlights Need Constant-Current Driving

LED brightness is mainly controlled by current rather than by voltage alone.

A constant-current driver regulates the selected current even when:

• Input voltage changes

• LED forward voltage varies

• Temperature changes

• Different production batches have small electrical differences

Without current regulation, a small voltage increase may cause a much larger current increase.

Excess current can produce:

• Excessive heat

• Rapid brightness decay

• LED color shift

• Uneven aging

• Driver overload

• Permanent LED failure

Can a Series Resistor Replace a Backlight Driver?

A resistor may be used in very small and tightly controlled LED circuits, but it normally provides less stable regulation than a dedicated constant-current driver.

It becomes unsuitable when:

• The supply voltage changes significantly.

• The LED string uses a high voltage.

• The display needs a wide dimming range.

• Brightness consistency is important.

• The equipment operates across a wide temperature range.

• The backlight power is relatively high.

Internal vs External Backlight Drivers

LCD Module With an Integrated Driver

Some display modules include a backlight driver on the panel PCB or an attached controller board.

The host system may only need to provide:

• A specified DC input voltage

• Backlight enable

• PWM dimming signal

• Analog dimming voltage

LCD Panel With Raw LED Connections

Other displays expose LED anode and cathode pins directly. The system designer must provide an external constant-current driver.

The driver must match:

• LED-string voltage range

• Rated string current

• Number of strings

• Total backlight power

• Dimming method

• Open-circuit protection

• Short-circuit protection

• Thermal conditions

The JLS-D2513-01 display driver board provides HDMI and VGA input, dual LVDS output, and an optional integrated backlight driver for complete TFT LCD integration.

Procurement question: Ask whether the quoted product is a bare LCD cell, an LCD module with LED backlight, or a complete display kit with controller and backlight driver. These products require different integration work.

What Is PWM Backlight Dimming?

PWM stands for Pulse-Width Modulation.

During PWM dimming, the LED driver switches the backlight on and off rapidly. The viewer perceives the average light output rather than each individual pulse.

Brightness is controlled by changing the duty cycle:

• A higher duty cycle keeps the LEDs on for a larger percentage of each period.

• A lower duty cycle keeps the LEDs on for a smaller percentage of each period.

• A 100% duty cycle normally corresponds to maximum commanded brightness.

• A very low duty cycle provides a dark backlight if the driver supports stable low-level operation.

Advantages of PWM Dimming

• Wide brightness-control range

• Stable LED current during the on phase

• Good color consistency compared with extreme current reduction

• Easy control from a microcontroller or processor

• Suitable for automatic day-and-night brightness adjustment

Limitations of PWM Dimming

• Low frequency may produce visible flicker.

• Some cameras may show rolling bands.

• Very short pulses may be distorted by driver response time.

• Fast switching can introduce electromagnetic noise.

• An incompatible input voltage can damage the control pin.

What PWM Frequency Should Be Used?

There is no single frequency suitable for every backlight driver.

The correct value depends on:

• Driver IC specification

• Required dimming ratio

• Camera compatibility

• EMI limits

• Processor output capability

• Minimum pulse width

• Acoustic-noise behavior

Use the supported frequency range specified by the display module or backlight-driver manufacturer.

PWM rule: A signal can have the correct frequency but still be incompatible because its voltage, polarity, duty-cycle range, or minimum pulse width is wrong.

What Is Analog Backlight Dimming?

Analog dimming changes the regulated LED current rather than switching the backlight fully on and off.

For example, the driver may reduce the LED current as the dimming-control voltage decreases.

Advantages of Analog Dimming

• No PWM switching bands in camera images

• Smooth low-noise output in some systems

• Useful where flicker-sensitive testing is required

• Simple control when the driver accepts an analog voltage

Limitations of Analog Dimming

• Very low current can change LED color characteristics.

• The useful dimming range may be narrower.

• Current matching between strings may become less accurate.

• Efficiency can fall at some operating points.

• Control-voltage noise can cause visible brightness changes.

Hybrid Dimming

Some systems use analog current control over one range and PWM control over another.

Hybrid dimming can help combine:

• Wide brightness range

• Stable color

• Low flicker

• Good camera compatibility

However, the transition between the two control modes must be tuned carefully to avoid a visible brightness step.

PWM Dimming vs Analog Dimming

How Bright Should a TFT LCD Be?

The required luminance depends on the lighting environment and the complete optical stack.

For a direct comparison, read High-Brightness vs Standard TFT Displays.

Standard Indoor Display Example

The Toroson 10.1-inch 1280×800 IPS TFT LCD uses a standard indoor brightness level suitable for embedded equipment, industrial controls, and indoor terminals.

High-Brightness Industrial Example

The Toroson VI104VIC06 10.4-inch 1200-nit TFT LCD combines high brightness, XGA resolution, LVDS connectivity, IPS viewing performance, and wide-temperature operation for demanding industrial environments.

Ultra-High-Brightness Compact Example

For outdoor-oriented compact equipment, the Toroson 7-inch 1200×1920 MIPI LCD with PCAP offers an ultra-high-brightness configuration for applications requiring strong ambient-light visibility.

Selection principle: Use the lowest brightness that still provides reliable readability in the worst expected lighting condition. Unnecessary brightness increases power, heat, backlight stress, and system cost.

Why Touch Panels and Cover Glass Reduce Brightness

The luminance measured from the bare LCD is not always the luminance seen by the final user.

Additional layers may include:

• Capacitive touch sensor

• Resistive touch panel

• Optical adhesive

• Air gap

• Decorative cover glass

• Anti-glare coating

• Anti-reflective coating

• Protective film

• Privacy filter

Each layer can absorb or reflect part of the light.

Air Bonding

An air gap creates two additional reflective interfaces between the LCD, air, and touch panel.

These reflections can reduce perceived contrast under strong ambient light even if the measured backlight brightness remains unchanged.

Optical Bonding

Optical bonding fills the air gap with transparent adhesive.

Potential benefits include:

• Lower internal reflection

• Improved perceived contrast

• Better sunlight readability

• Reduced condensation risk

• Improved mechanical stability

Read Anti-Glare vs Anti-Reflective vs Optical Bonding for a complete optical comparison.

How Backlight Brightness Affects Power Consumption

The LED backlight is often the largest electrical load in a TFT LCD assembly.

Backlight power depends on:

• LED-string voltage

• LED-string current

• Number of strings

• Driver efficiency

• PWM duty cycle

• Brightness setting

• Temperature

Higher brightness normally requires more LED current, more LEDs, or both.

This affects the complete system by increasing:

• Power-supply capacity

• Driver-component rating

• PCB thermal load

• Enclosure temperature

• Battery drain

• Cooling requirement

Does Reducing PWM Duty Cycle Save Power?

In most properly designed systems, reducing the PWM duty cycle lowers average backlight power because the LEDs operate for less time during each cycle.

The exact system saving depends on:

• Driver quiescent power

• Conversion efficiency

• Minimum operating level

• Other display electronics

• Processor and touch-panel power

How Heat Affects the TFT LCD Backlight

LED efficiency and lifetime are strongly influenced by temperature.

As LED junction temperature increases:

• Luminous efficiency may decrease.

• Brightness decay may accelerate.

• Color characteristics may shift.

• Driver stress may increase.

• Optical films and adhesives may age faster.

Sources of Heat

Heat may come from:

• LEDs

• Backlight driver

• LCD controller board

• Processor or GPU

• Power supply

• Sealed enclosure

• Solar loading

• Nearby machine components

Thermal Design Measures

• Provide a heat-spreading metal frame.

• Avoid trapping the driver beside hot processors.

• Use efficient backlight-driver components.

• Reduce brightness automatically when full output is unnecessary.

• Allow airflow where the enclosure permits.

• Validate the display inside the final housing.

• Measure temperature after long-duration operation.

For environmental limits, review Operating Temperature Range for Industrial Displays Explained.

Thermal rule: A panel rated for a high ambient temperature may still exceed its safe internal temperature when it operates at maximum brightness inside a sealed enclosure.

What Determines LCD Backlight Lifetime?

Backlight lifetime is commonly specified as the time required for luminance to fall to a percentage of its initial value under defined operating conditions.

The real service life depends on:

• LED operating current

• Ambient temperature

• Internal panel temperature

• Driver-current accuracy

• Daily operating hours

• Average brightness setting

• Thermal cycling

• LED quality

• Optical-film aging

Does Lower Brightness Extend Life?

Reducing the average brightness can lower LED operating time or current, reduce heat, and slow brightness decay.

However, the result depends on the dimming method and driver implementation.

What Does L50 Mean?

L50 generally means that the backlight has reached 50% of its initial luminance.

This does not necessarily mean the backlight has stopped working. It means the display may no longer meet the original brightness requirement.

For a broader lifetime discussion, read Industrial Display Lifespan: How Long Do TFT LCDs Last?.

Why Does an LCD Backlight Flicker?

Backlight flicker can be visible to the eye, appear only at low brightness, or show as dark bands in a camera image.

Common causes include:

• PWM frequency outside the supported range

• Unstable PWM duty cycle

• Insufficient driver input voltage

• Driver output-voltage limit

• Poor connector contact

• Loose FPC or cable

• Damaged LED string

• Over-current or over-temperature protection cycling

• Power-supply ripple

• Incorrect enable timing

• Driver incompatibility

Flickering Only at Low Brightness

Possible causes include:

• PWM pulses that are too short for the driver

• Minimum duty-cycle limit

• Poor analog-dimming stability

• Driver entering discontinuous operation

• Software brightness values that are not mapped correctly

Flickering Only at Maximum Brightness

Possible causes include:

• Insufficient power-supply current

• Driver output voltage reaching its limit

• Thermal protection

• Excessive voltage drop in the cable

• Overloaded integrated backlight driver

Camera Bands Without Visible Flicker

A camera may record dark rolling bands even when the human eye sees stable brightness.

This usually occurs because the camera shutter and backlight PWM are not synchronized.

Possible solutions include:

• Use a supported higher PWM frequency.

• Use analog dimming if the driver permits it.

• Adjust the camera exposure or shutter setting.

• Use a backlight system designed for machine-vision equipment.

For broader display symptoms, review Industrial LCD Troubleshooting: White Screen, Flickering, Scrambled Image, and Image Sticking.

Why Is the TFT LCD Backlight Too Dim?

A dim screen does not always mean the LEDs have reached the end of their life.

Possible causes include:

• Low PWM duty cycle

• Incorrect analog-dimming voltage

• Insufficient LED current

• Insufficient driver output voltage

• Power-supply voltage drop

• High contact resistance

• Aging LEDs

• Yellowed optical films

• Incorrect backlight-driver configuration

• Touch panel or dark cover glass reducing transmission

• Strong ambient reflection

A Bright Backlight Can Still Look Dim Outdoors

Outdoor readability depends on ambient contrast, not only emitted luminance.

A panel may produce high brightness but appear washed out because sunlight reflects from:

• Cover glass

• Touch-panel surfaces

• Air gaps

• Protective films

• Glossy polarizers

The solution may require optical bonding or anti-reflective treatment rather than only increasing the LED current.

Why Is the Backlight On but the Screen White?

A white or blank illuminated screen normally means that the LED backlight is operating, but the LCD image section is not controlling the light correctly.

Possible causes include:

• Missing LCD logic power

• No valid image data

• Incorrect interface timing

• Missing MIPI initialization

• Incorrect LVDS mapping

• Reset signal held active

• Loose data connector

• Wrong power-up sequence

• Damaged panel driver electronics

Do not increase the backlight current to solve a white-screen problem. The backlight is already producing light; the image-control circuit must be checked separately.

Common TFT LCD Backlight Design Mistakes

Mistake 1: Driving LEDs With a Fixed Voltage

The backlight is connected directly to a power rail without proper current regulation.

Better approach: Use a constant-current driver matched to the LED-string specification.

Mistake 2: Using the Logic-Power Specification for the Backlight

The panel’s low-voltage logic input is confused with the LED-string requirement.

Better approach: Read the LCD electrical section and LED backlight section separately.

Mistake 3: Selecting the Driver Only by Wattage

The driver has enough total power but cannot provide the required output-voltage range or string arrangement.

Better approach: Match voltage, current, number of strings, dimming, and protection—not only watts.

Mistake 4: Overdriving the LEDs for More Brightness

LED current is increased beyond the panel specification to reach a higher luminance.

Better approach: Select a backlight designed for the required brightness or use optical improvements.

Mistake 5: Ignoring the PWM Input Voltage

A processor PWM output is connected directly without checking whether the driver accepts that logic level.

Better approach: Verify input thresholds, polarity, frequency, and the need for level shifting.

Mistake 6: Testing Only at Room Temperature

The backlight works during development but flickers, dims, or overheats in the field.

Better approach: Test startup, maximum brightness, and dimming at the required temperature limits.

Mistake 7: Ignoring Cable Voltage Drop

A remote display works with a short test cable but becomes unstable with the production cable.

Better approach: Calculate conductor resistance and measure voltage at the display under maximum load.

Mistake 8: Choosing Brightness Before Adding Cover Glass

The bare panel meets the target, but the final touch assembly is too dim.

Better approach: Validate luminance and ambient contrast using the complete optical stack.

Mistake 9: Running Maximum Brightness at All Times

The backlight operates at full output even during night use or in controlled indoor lighting.

Better approach: Add manual or automatic brightness control to reduce power and thermal stress.

Backlight Selection by Application

How to Troubleshoot an LCD Backlight

Step 1: Confirm the Symptom

Determine whether the issue is:

• No image and no light

• Image visible only under an external flashlight

• White illuminated screen

• Low brightness

• Intermittent brightness

• Flicker

• Uneven brightness

• Backlight shutdown after startup

Step 2: Check the Panel Datasheet

Confirm:

• LED-string arrangement

• Forward-voltage range

• Rated current

• Maximum current

• Connector pin assignment

• Dimming method

• Enable polarity

Step 3: Check the Power Source

Measure the input voltage at the backlight driver under load. Verify that the power supply does not collapse during startup or maximum brightness.

Step 4: Check Backlight Enable

Confirm that the BL_EN signal reaches the required active level and is not being disabled by firmware, thermal protection, or system sleep mode.

Step 5: Check PWM or Dimming Control

Use an oscilloscope to verify:

• Frequency

• Voltage level

• Polarity

• Duty cycle

• Pulse stability

Step 6: Measure LED Current

Confirm that the current matches the panel specification. Do not rely only on the driver configuration register or resistor value.

Step 7: Check the Connector and Cable

Inspect:

• FPC insertion

• Pin-one orientation

• Oxidation

• Damaged conductors

• Loose locking tabs

• Excess cable resistance

Step 8: Check Temperature

Determine whether the driver or LEDs enter thermal protection after several minutes of operation.

Step 9: Test a Known-Good Combination

Where possible, compare the suspect panel with a known-good driver and the suspect driver with a known-good panel.

Troubleshooting principle: Separate the LCD logic circuit, video interface, backlight driver, LED load, dimming signal, and power supply. Testing the complete system as one unknown makes fault identification much harder.

TFT LCD Backlight RFQ Checklist

Provide the following information when requesting an LCD, backlight driver, or complete display kit:

• LCD model: Exact model number and revision.

• Display size: Required diagonal size.

• Resolution: Native pixel format.

• Target brightness: Required front-surface luminance.

• Environment: Indoor, bright indoor, vehicle, semi-outdoor, or direct sunlight.

• LED specification: String voltage, rated current, and number of strings.

• Backlight driver: Integrated, external, or open recommendation.

• Dimming method: PWM, analog, hybrid, or fixed brightness.

• Dimming range: Maximum and minimum useful brightness.

• PWM information: Available frequency, voltage, and polarity.

• Input power: Available system voltage and current capacity.

• Operating temperature: Minimum and maximum ambient values.

• Operating schedule: Daily hours and continuous-use requirement.

• Touch panel: PCAP, resistive, in-cell, or no touch.

• Optical structure: Air bonding, optical bonding, AG, AR, or custom glass.

• Controller: Existing display board, Android board, MCU, MPU, or PC platform.

• Annual quantity: Prototype quantity and production forecast.

• Supply period: Expected product lifecycle.

A target such as “sunlight readable” is not enough by itself. Include the installation environment, cover-glass structure, ambient-light condition, power limit, and acceptable enclosure temperature.

Frequently Asked Questions

Does a TFT LCD need a backlight?

Most transmissive TFT LCD panels require an LED backlight because the liquid crystal layer does not produce its own light. Reflective and transflective displays use different optical structures, but they are less common in standard color TFT modules.

What voltage does an LCD backlight use?

There is no universal backlight voltage. It depends on the number of LEDs in each string, LED forward voltage, operating current, and driver design. Use the exact panel datasheet.

Can I connect the TFT LCD backlight directly to 5 V or 12 V?

Only when the module includes a backlight driver specifically designed for that input. Raw LED connections normally require a constant-current driver and may need an output voltage different from the system supply.

What is the difference between LED voltage and LED current?

Voltage allows current to flow through the LED string, while regulated current mainly controls LED brightness. A safe driver must provide enough voltage while limiting current to the specified value.

What is PWM dimming on an LCD?

PWM dimming controls brightness by switching the LED backlight on and off rapidly. The duty cycle determines the average light output perceived by the user.

Why does my LCD backlight flicker at low brightness?

The PWM frequency may be too low, the pulse width may be below the driver limit, the power supply may be unstable, or the analog-dimming circuit may not regulate accurately at a low setting.

Why is the LCD backlight on but no image appears?

The LED circuit and LCD image circuit are separate. The panel may have missing logic power, incorrect timing, no data signal, a reset problem, missing initialization, or a loose interface cable.

Does increasing LED current make an LCD brighter?

It generally increases brightness, but exceeding the panel rating can create heat, accelerate aging, reduce uniformity, and damage the LEDs or driver. Select a properly designed high-brightness module instead of overdriving a standard panel.

Does PWM dimming extend backlight life?

Reducing the average operating brightness can lower power and heat, which may slow brightness degradation. The result depends on the LED current, duty cycle, temperature, and driver design.

What is the difference between PWM and analog dimming?

PWM changes the percentage of time the LEDs are on, while analog dimming changes the LED current. PWM often provides a wider range, while analog dimming can reduce camera-related banding in some applications.

Can optical bonding increase LCD brightness?

Optical bonding does not directly increase LED output, but it reduces internal reflections and can improve perceived contrast and readability, especially in strong ambient light.

Why does the LCD become dim after several years?

LED output gradually declines with operating time and temperature. Optical films, polarizers, adhesives, and cover materials may also age and reduce the light reaching the user.

What information is needed to select an LCD backlight driver?

Provide the LED-string voltage range, rated current, number of strings, total power, input voltage, dimming method, operating temperature, brightness target, and protection requirements.

Final Recommendation

The TFT LCD backlight should be treated as an independent electrical and thermal subsystem.

Begin by confirming the LED-string voltage, current, number of strings, and whether the display includes an internal backlight driver. Use a constant-current driver for raw LED connections and verify the supported PWM or analog-dimming range.

Do not increase LED current beyond the panel specification to solve an outdoor-readability problem. Evaluate brightness together with the cover glass, touch panel, reflection, optical bonding, viewing angle, ambient light, power budget, and enclosure temperature.

For long-life industrial equipment, control the average brightness, maintain a suitable thermal path, and test the backlight at the actual operating-temperature limits.

A correctly matched backlight driver provides stable brightness, smooth dimming, lower thermal stress, and more predictable display life. An incorrectly matched driver can cause flicker, low brightness, overheating, rapid aging, or permanent panel damage.

Need Help Matching a TFT LCD Backlight?

Send the LCD model, datasheet, target brightness, LED voltage and current, number of strings, available input power, PWM or analog control requirement, operating temperature, touch-panel structure, application, and expected quantity. Toroson can help compare standard, high-brightness, and custom TFT LCD backlight solutions.

Send Your Backlight Requirements
