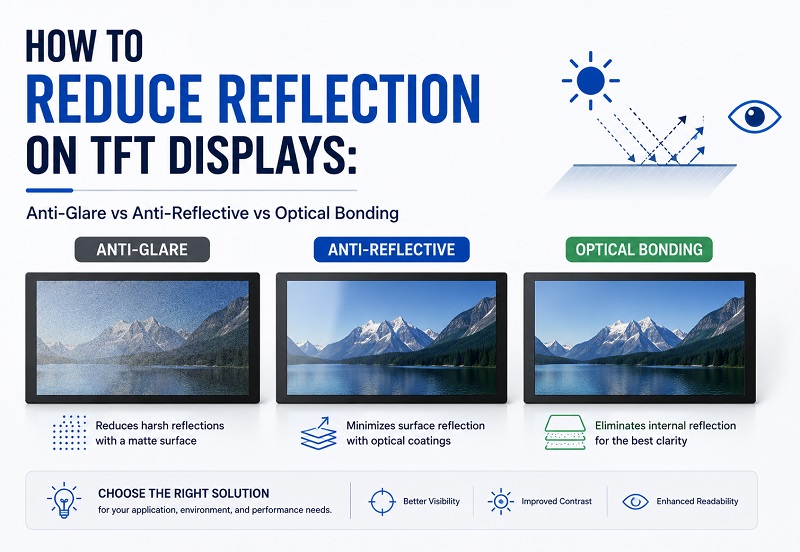

One of the biggest challenges for industrial TFT displays is screen reflection. Even a high-resolution or high-brightness display can become difficult to read when exposed to strong ambient light, overhead lighting, or direct sunlight.
To improve readability, manufacturers commonly use three technologies:
Anti-Glare (AG)
Anti-Reflective (AR)
Optical Bonding (OB)
Although these terms are often used interchangeably, they solve different problems and can even be combined in the same display.
This guide explains how each technology works, their advantages and limitations, and how to choose the right solution for your industrial application.
Reflection occurs whenever external light hits the display surface.
Common sources include:
Sunlight
Factory lighting
LED ceiling lights
Vehicle windows
Glass enclosures
Excessive reflection can make it difficult to:
Read text
Distinguish colors
Operate touchscreens
View alarms and status information
Poor readability can reduce productivity and, in some industrial environments, create safety risks.
Before selecting a solution, it helps to understand where reflections originate.
Light reflects from the outer cover glass.
This is the reflection most users notice.
When there is an air gap between the cover glass and the LCD, light bounces multiple times inside the display assembly.
Internal reflections reduce:
Contrast
Color accuracy
Outdoor readability
Optical bonding is specifically designed to eliminate this issue.
Anti-glare is a surface treatment that diffuses incoming light instead of reflecting it directly.
Rather than creating a mirror-like reflection, AG scatters the reflected light across the surface.
The cover glass is chemically or mechanically etched to create a microscopic textured surface.
This texture breaks up reflected light into smaller, less noticeable reflections.
✔ Reduces mirror-like reflections
✔ Improves readability under office lighting
✔ Reduces eye fatigue
✔ Cost-effective
✔ Durable for industrial environments
Because AG diffuses light, it can also slightly reduce:
Image sharpness
Color saturation
Contrast
Heavy AG coatings may produce a "sparkle" or grainy appearance, particularly on high-resolution displays.
Anti-glare is ideal for:
Factory HMIs
Office equipment
Medical devices
Indoor kiosks
Industrial control panels
Anti-reflective coating is an optical coating applied to the glass surface.
Instead of scattering light, AR reduces the amount of light reflected by changing how light waves interact with the glass.
Multiple ultra-thin optical layers create destructive interference, allowing more light to pass through while reducing reflected light.
The result is:
Higher light transmission
Improved image clarity
Better contrast
✔ Higher optical clarity
✔ Better color accuracy
✔ Improved contrast
✔ Excellent image sharpness
✔ Better visibility in bright environments
AR coatings do not eliminate internal reflections caused by the air gap between the LCD and cover glass.
Performance may also decrease if the coating becomes scratched or contaminated, depending on the coating quality.
AR coatings are commonly used in:
Outdoor kiosks
Marine displays
Medical imaging equipment
Professional monitoring systems
High-end industrial equipment
Optical bonding is a manufacturing process rather than a surface coating.
Instead of leaving an air gap between the LCD and cover glass, manufacturers fill the space with a transparent optical adhesive.
Without optical bonding:
Cover Glass
↓
Air Gap
↓
LCD PanelWith optical bonding:
Cover Glass
↓
Optical Adhesive
↓
LCD PanelRemoving the air gap significantly reduces internal reflections.
✔ Dramatically reduces internal reflections
✔ Improves sunlight readability
✔ Increases perceived contrast
✔ Reduces condensation inside the display
✔ Improves mechanical durability
✔ Better shock and vibration resistance
✔ Enhances touch performance
Optical bonding:
Increases manufacturing cost
Makes repairs more difficult
Requires specialized production equipment
However, for demanding industrial applications, the benefits often outweigh the additional cost.
Feature | Anti-Glare (AG) | Anti-Reflective (AR) | Optical Bonding |
|---|---|---|---|
Reduces Surface Reflection | ✔ | ✔✔ | ✔ |
Reduces Internal Reflection | ✖ | ✖ | ✔✔✔ |
Improves Image Sharpness | Moderate | Excellent | Excellent |
Improves Outdoor Visibility | Good | Very Good | Excellent |
Improves Contrast | Moderate | High | Very High |
Reduces Condensation | ✖ | ✖ | ✔ |
Improves Mechanical Strength | ✖ | ✖ | ✔ |
Relative Cost | Low | Medium | High |
Recommended:
Anti-Glare
Reasons:
Lower cost
Reduced office lighting reflections
Good readability
Recommended:
Anti-Glare + Anti-Reflective
This combination reduces both glare and surface reflections without significantly increasing system complexity.
Recommended:
Optical Bonding
Anti-Reflective coating
High-brightness TFT display
Together, these technologies provide the best visibility under direct sunlight.
Recommended:
Anti-Reflective coating
Optical Bonding (when image clarity is critical)
These technologies preserve color accuracy and maximize contrast.
Recommended:
Optical Bonding
Anti-Reflective coating
These improve readability under changing lighting conditions while increasing resistance to vibration.
Yes.
Many premium industrial displays combine all three technologies.
Typical configuration:
High-brightness LED backlight
IPS TFT LCD
Optical bonding
Anti-reflective coating
Anti-glare surface treatment
This combination delivers excellent readability across a wide range of lighting conditions.
Not completely.
Increasing brightness helps, but reflected light can still reduce contrast and visibility. Optical improvements are often more effective than simply adding brighter LEDs.
No.
Anti-glare diffuses reflected light.
Anti-reflective reduces the amount of reflected light.
They use different optical principles and produce different visual effects.
Incorrect.
Optical bonding also improves:
Contrast
Durability
Touch accuracy
Condensation resistance
Many medical and transportation displays use optical bonding even in indoor environments.
Before selecting a display, ask:
Does the display use AG, AR, or both?
Is optical bonding available?
What is the total light transmission?
How much surface reflectance has been reduced?
Has the display been tested for outdoor readability?
Does optical bonding affect repairability or warranty?
These questions help ensure the display meets the requirements of the intended environment.
Optical bonding combined with an anti-reflective coating and a high-brightness TFT display typically offers the best performance in direct sunlight.
Usually not. Anti-glare helps reduce visible reflections, but outdoor applications generally benefit from optical bonding, anti-reflective coatings, and increased brightness.
Yes. Eliminating the air gap reduces parallax and improves touch accuracy, particularly on projected capacitive (PCAP) touchscreens.
For equipment used outdoors or in high-ambient-light environments, optical bonding often improves readability, durability, and long-term reliability enough to justify the additional investment.
Reducing reflection is about more than increasing display brightness. Anti-glare, anti-reflective coatings, and optical bonding each address different optical challenges, and the most effective solution depends on the operating environment.
For indoor equipment, anti-glare is often sufficient. Applications that demand higher image clarity may benefit from anti-reflective coatings, while outdoor or mission-critical systems typically achieve the best results with optical bonding combined with a high-brightness TFT display.
By understanding the strengths and limitations of each technology, OEMs can select a display that delivers better visibility, improved user experience, and reliable performance throughout the product's lifecycle.
