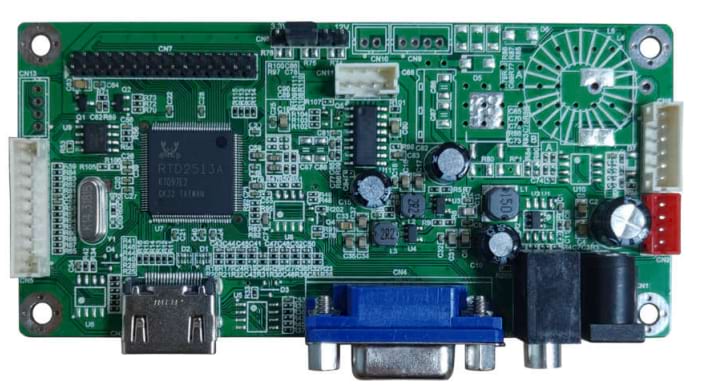

The JLS-D2513-01 Display Driver Board is a high-performance solution designed for industrial monitors, control systems, and commercial display applications. With support for HDMI 1.4 and VGA inputs, dual LVDS output up to 186MHz, and integrated audio amplification, this board ensures stable performance and easy integration for manufacturers and OEMs.
For B2B buyers and bulk procurement, the board offers flexibility, reliability, and scalability, making it an ideal choice for display equipment suppliers, system integrators, and electronic product manufacturers.
| Item | Specification |
|---|---|
| Model | JLS-D2513-01 |
| Power Input | 12V |
| HDMI Input | HDMI 1.4 |
| VGA Input | VGA |
| Audio Output | 3.5mm headphone & 3W speaker |
| LVDS Output | Dual-channel, up to 186MHz |
| Integrated Backlight Driver | Supports up to 15W (optional) |
| Max Ratings – Storage Temp. | -20°C ~ 70°C |
| Max Ratings – Operating Temp. | 0°C ~ 50°C |
No. | Item |
CN1/CN2 | Power input |
CN4 | VGA input/VGA |
CN3 | HDMI input/HDMI |
CN7 | LVDS output/LVDS |
CN11 | 3W speaker output |
CN8 | Backlight control interface |
CN9/CN10 | Backlight output |
CN13 | I²C interface/I²C |
CN6 | Panel power interface |
CN12 | 3.5mm headphone output/3.5mm |
CN5 | Keypad interface |
The industrial display driver board is widely used in:
Industrial control panels and monitoring systems
Commercial digital signage and advertising displays
Medical equipment displays
Transportation and automotive displays
Custom OEM projects requiring stable driver solutions
B2B Procurement Friendly: Flexible order quantities, bulk pricing, and fast delivery.
Customization Options: Support for tailored solutions based on specific project needs.
Reliable Quality Control: All boards tested to meet international standards.
Dedicated Technical Support: Engineering team available for integration guidance.
Looking for a trusted display driver board supplier?
Contact us today for bulk orders, custom display driver board solutions, or to request a detailed quotation.
