VL097VID10
Toroson

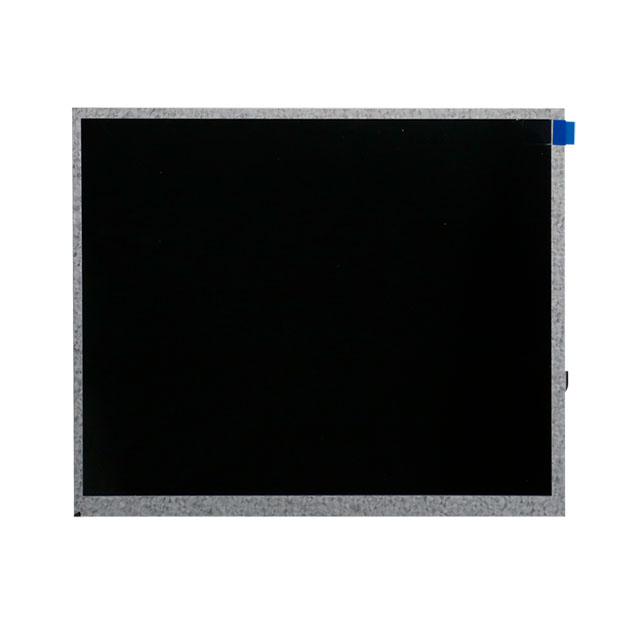

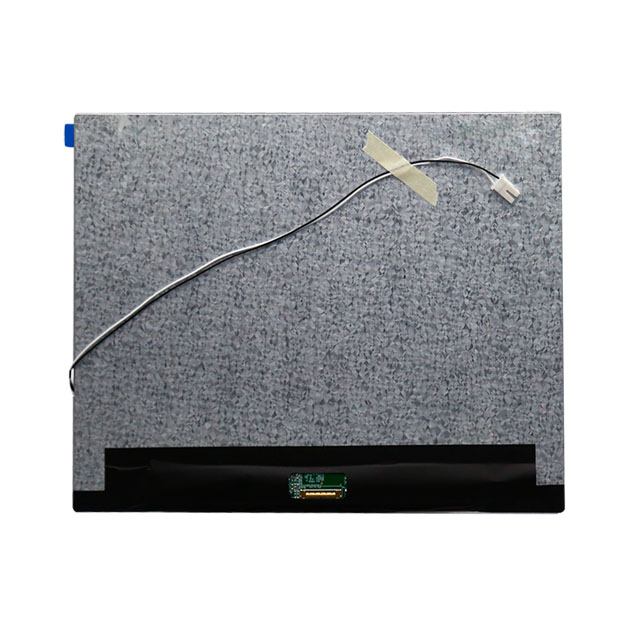

The Toroson VL097VID10 Display Module is a high-performance, low-power, and durable LVDS display panel designed for industrial and commercial applications.
With a typical brightness of 1300 cd/m², a 1024×768 resolution, and a 30-pin LVDS interface, this module provides excellent image clarity and integration flexibility.
As a professional high brightness LVDS display module supplier, we support OEM and B2B clients with sampling, bulk purchasing, and customized display solutions to meet specific project requirements.
No. | Item | Specification | Remark |
1 | LCD size | 9.7 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 1024X3(RGB)X768 | |
4 | Display mode | Normally Black, Trans-missive | |
5 | Dot pitch | 0.192(W)x0.192(H) mm | |
6 | Active area | 196.608(W)x147.456(H) mm | |
7 | Module size | 210.16(W)x164.25(H)x5.0(D)mm | Note 1 |
8 | Surface treatment | Plain | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | Free | |
11 | Interface | LVDS | |
12 | Backlight power consumption | 6.48W (Typ.) | |
13 | Panel power consumption | 0.7W(Typ.) | |
14 | Weight | 560g (Typ.) | |
Note 1:Refer to Mechanical Drawing | |||
High Brightness Display: Typical brightness of 1300 cd/m², ideal for outdoor or high ambient light environments.
Stable LVDS Interface: 30-pin FPC connection compatible with mainstream driver boards and controllers.
Low Power Consumption: Typical backlight power 6.48 W, panel power 0.7 W for energy-efficient operation.
Slim & Lightweight Design: 5.0 mm thickness allows easy integration into compact enclosures.
Wide Temperature Range: Operating temperature –10°C to +50°C, storage –20°C to +60°C.
Fine Pixel Pitch: 0.192 mm dot pitch for sharp and vivid image display.
Optimized for Industrial Use: High reliability and long lifespan for professional-grade devices.
These advantages make the VL097VID10 the preferred choice for industrial displays, instrumentation, POS systems, and OEM integration.
The 9.7-inch LVDS display module is widely used in:
Industrial control panels and monitoring systems
Measuring instruments and testing equipment
POS terminals, vending machines, and retail kiosks
Medical display devices
Smart hardware and customized embedded display projects
Professional indoor display systems
We also provide complete system integration support — including display driver boards, backlight power modules, and interface customization — to help B2B buyers streamline their display development process.
Looking for a reliable LVDS display supplier for your next project?
✅ Request a Sample – Evaluate the VL097VID10 module in your system
✅ Get a Custom Solution – Tell us your brightness, interface, or integration requirements
✅ Request a Bulk Quotation – Share your order volume and target pricing
[Download Technical Datasheet PDF] | [Request a Quote] | [Contact Our Engineering Team]
