TI070IP400
Toroson

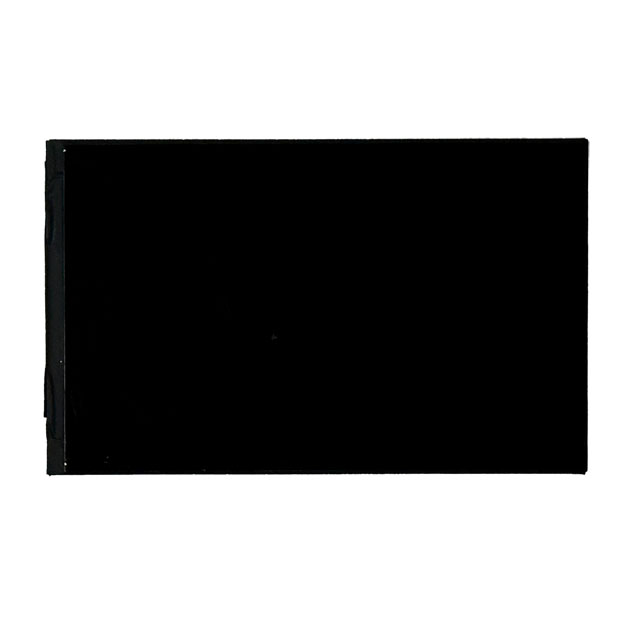

This 7 inch TFT LCD module from Toroson is a high-definition, high-integration display solution targeted at industrial, embedded, and commercial applications. With a 1200 × 1920 resolution (portrait orientation), 40-pin MIPI interface, and optional projected capacitive (PCAP) touch panel, this module provides a turnkey display solution for OEMs, system integrators, and B2B procurement.
Designed for modern devices, the module combines high resolution, compact size, efficient interface, and touch capability, enabling deployment in devices such as rugged tablets, industrial controllers, kiosks, outdoor terminals, vehicle displays, and more.
High-Resolution Portrait Display: 1200 × 1920 resolution gives crisp, detailed visuals — ideal for UI-rich applications, text, graphics, and high-definition content.
MIPI 40-Pin Interface: Provides efficient data transmission, minimized pin/space usage, and good compatibility with embedded boards supporting MIPI-DSI/DSI-compatible signals. MIPI is widely used for mobile and embedded displays.
IPS / TFT Technology: Wide viewing angles, stable color and contrast, suitable for devices requiring reliable display performance under varying viewing conditions.
Optional PCAP Touch Panel Integration: Facilitates touch interaction, reducing BOM and integration complexity — advantageous for devices like kiosks, tablets, HMI panels, handheld equipment.
Compact & Industrial-Friendly Module: As a 7″ vertical (portrait) module, it fits devices needing compact form factors. Many 7″ MIPI 1200×1920 modules on market have module dimensions and active areas optimized for embedded solutions.
B2B / OEM Procurement Ready: Suitable for sample testing, small batch production, and large volume orders; supports customization (touch / non-touch, brightness/backlight / LED settings / FPC length / mechanical adaptation) depending on project needs.
No. | Item | Specification | Remark |
1 | LCD size | 7(digital) | |
2 | Pixel pitch | 26.25(H)X 78.75(V) | |
3 | Resolution | 1200 RGB(H)X 1920 (V) | |
4 | Display Mode | Normally Black | |
5 | Viewing Direction | 80/80/80/80 | |
6 | Active area | 94.5 (H) x 151.2 (V) | |
7 | Module size | 98.76(H)X161.06(V)X 2.76(T) | |
8 | Luminance | 400cd/m2 | |
9 | Pixel arrangement | RGB Vertical stripe | |
10 | Interface | MIPI | |
11 | NTSC | 77% | |
12 | Operating Temperature | -20~70 | |
13 | Storage Temperature | -30~80 |
Rugged tablets / handheld terminals requiring portrait UI and touch interaction
Industrial HMI / control panels for machinery, instrumentation, automation systems
Outdoor or semi-outdoor kiosks / terminals where compact vertical display + optional touch is beneficial
Vehicle-mounted displays / infotainment / instrumentation (portrait dashboard, rear-seat screens)
Medical devices, retail POS, vending machines, custom embedded systems needing compact vertical screen + reliable display + touch
OEM/ODM projects requiring stable supply and customizable display modules
Integration Friendly — MIPI interface and PCAP touch reduce BOM complexity and ease integration into modern embedded platforms (SoC, ARM boards, single-board computers, industrial controllers).
Scalable for B2B — From small sample evaluation to large volume procurement; suitable for OEM/ODM projects with long product lifecycles.
Flexibility — Depending on project needs, you can request touch or non-touch version, different backlight / brightness levels, mechanical / FPC customizations.
Cost-Effectiveness — Compared to custom panel development, using standard 7″ 1200×1920 MIPI modules saves time and cost, while still offering high resolution and industrial-grade reliability.
Full Support — Supplier can offer datasheet, mechanical drawing, interface pinout, driver support, and long-term supply stability (as typical for MIPI IPS TFT modules).
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
Buy Now — Click the button to purchase this 7-inch 1200×1920 MIPI TFT LCD module with PCAP touch for rapid prototyping, small-scale production, or engineering validation. Fast handling and reliable shipping ensure your display arrives quickly so you can start testing immediately.
Fast Shipping & Delivery — Ideal for both developers and industrial teams that require quick turnaround for pilot builds or urgent projects.
Whether your application involves industrial HMI panels, handheld terminals, outdoor kiosks, rugged tablets, vehicle-mounted systems, or embedded devices, we deliver scalable B2B solutions tailored to your needs:
Request a Bulk Quotation — Tell us your target volume, required features, and delivery timeline to receive competitive pricing for mass production.
Explore OEM/ODM Options — Customize brightness (standard or high brightness), PCAP touch integration, interface, mechanical structure, FPC length, or driver board compatibility to match your device roadmap.
Dedicated Technical Support — Gain access to datasheets, mechanical drawings, integration guides, and engineering assistance for MIPI timing and system matching.
Start with a single sample for evaluation — or move straight to bulk procurement for your next-generation product.
Buy Now for immediate delivery, or contact us to discuss OEM/ODM customization and volume orders.
[Download Datasheet]
Toroson TI070IP400 V02-2024.07.26.pdf
