TI035AI300
Toroson

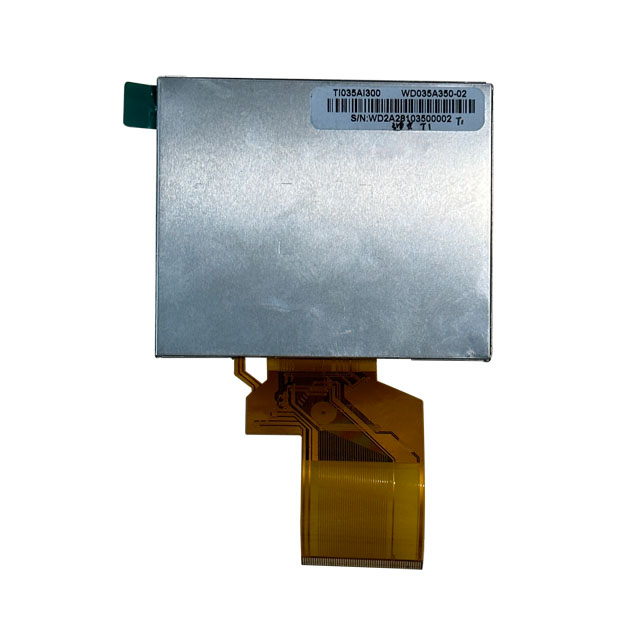

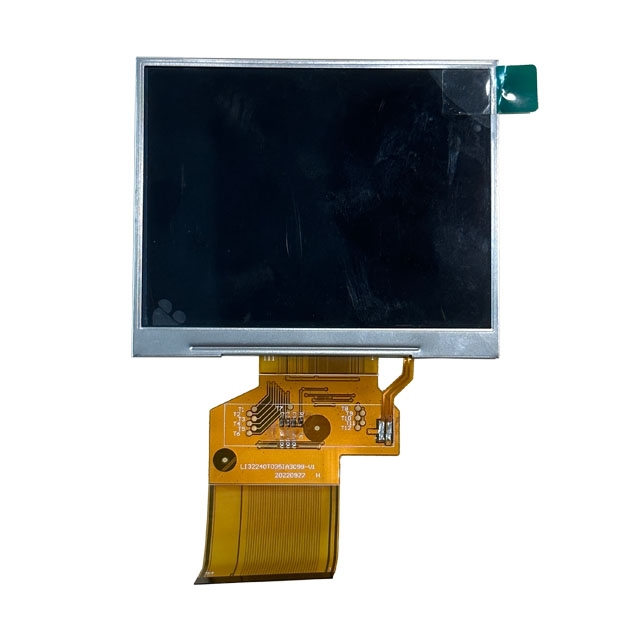

The Toroson TI035AI300 3.5-inch IPS TFT LCD module delivers vivid display performance with 320×240 (QVGA) resolution, 350 cd/m² typical brightness, and a 54-pin TTL RGB interface. Designed for versatile industrial, embedded and OEM display applications, this compact display module combines wide viewing angles, stable TTL connectivity, and reliable visual quality.
As a professional industrial TFT display supplier and 3.5-inch LCD module source, we support bulk orders, sample evaluation, and customized display solutions tailored to your project needs.
Compact 3.5-inch Display — Ideal for embedded systems, handheld devices, and compact instruments requiring robust, crisp graphic displays.
Standard 320×240 (QVGA) Resolution — Provides clear visual support for industrial UI, icons, and text interfaces.
54-Pin TTL RGB Interface — Simplifies connection and system integration with microcontrollers and driver boards.
IPS Panel Technology — Offers wide viewing angles and consistent color performance across multiple viewing directions. (Typical IPS characteristic)
400 cd/m² Brightness Class — Ensures good readability in indoor and moderate ambient light environments. (350 cd/m² typical)
B2B Procurement Friendly — Supports volume pricing, long-term collaboration, and customization of mechanical, brightness, and interface specifications.
No. | Item | Specification | Remark |
1 | Screen Size | 3.5(Diagonal) | |
2 | Pixel pitch | 0.073(H)X 0.219(V) mm | |
3 | Active area | 70.08(H) x 52.56(V) mm | |
4 | Module Size | 76.9 (H)X 63.9(V)X 3.3(T) mm | |
5 | Resolution | 320 RGB(H)X 240 (V) pixel | |
6 | Outline dimension | 76.9(W) x 63.9(H) x 3.26(D) | |
7 | Color | 16.7M colors | |
8 | Interface | RGB | |
9 | Display Mode | Normally Black | |
10 | Pixel arrangement | RGB Vertical stripe | |
11 | Surface Treatment | Anti-glare | |
12 | NTSC | 60 % | |
13 | Brightness | 350 cd/m2 | |
14 | Backlight power consumption | 375 mW |
This 3.5-inch 320×240 IPS TFT LCD module is well suited for a wide range of B2B applications:
Industrial automation and control panels
Embedded devices and handheld instruments
Medical equipment user interfaces
IoT and smart device displays
OEM/ODM platform integration requiring compact display modules
Supply chain procurement for rugged display needs
We provide comprehensive support — including driver board recommendations, optional touch panels, mounting hardware, and custom solution support — to help engineering and procurement teams reduce development cycles and procurement risks.
| Procurement Item | Benefit |
|---|---|
| Order Flexibility | Sample, small batch, and large volume orders accepted |
| Customization Options | Brightness level, interface pinouts, mechanical mounting can be tailored |
| Sample Evaluation | Test module before mass procurement |
| Quality Assurance | Modules undergo pre-shipment verification and documentation |
| Technical Support | Guidance for integration, driver usage, and debugging |
| Stable Supply Network | Reliable production capacity for ongoing B2B supply |
We strive to be your trusted 3.5-inch TFT LCD display supplier, with reliable procurement support and display expertise from specification to delivery.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
Are you looking for a reliable 3.5-inch industrial TFT display module?
Please Order Now!
If you require an OEM quote, please provide your order quantity and specifications.
Inquire Custom Solutions — Share your brightness, interface, or mechanical requirements
[Download Full Datasheet] |
3.5inch TI035AI300 V02 Spec. Toroson 20250528.pdf
