VI101EI342
Toroson

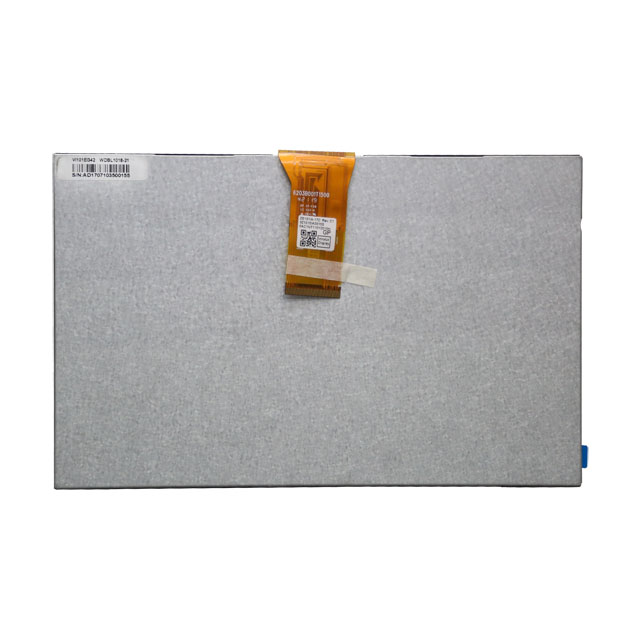

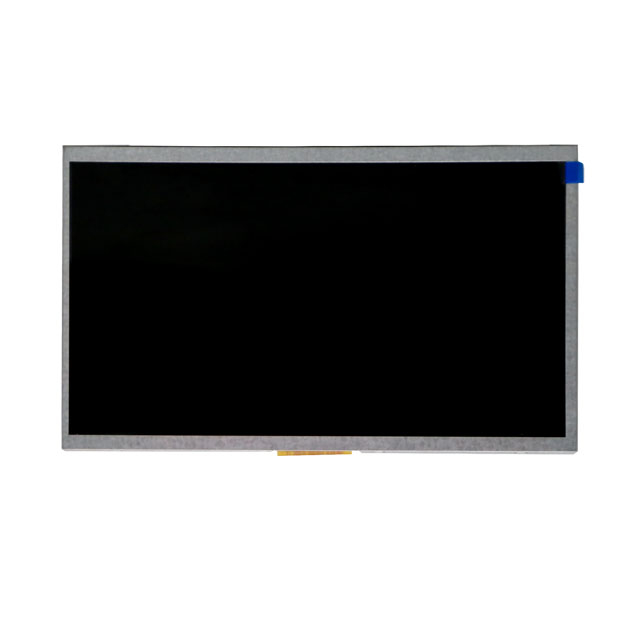

The Toroson 10.1-inch 1024×600 TTL TFT LCD display screen provides a reliable solution for industrial, embedded, automation, and OEM display applications. Featuring a 1024×600 WSVGA resolution with clear visual fidelity and a 350 cd/m² typical brightness level, this display module delivers solid performance in a wide range of environmental conditions.
The 50-pin TTL RGB interface ensures easy integration with controller boards and microcontroller systems, making this screen an excellent choice for engineering teams and B2B procurement managers seeking dependable display modules for volume production or system upgrades.
Wide SVGA Resolution (1024×600): Offers crisp and detailed visuals for graphical user interfaces, dashboards, and embedded systems.
Balanced Brightness (350 cd/m²): Typical luminance supports clear display readability in indoor and moderate light conditions.
Standard 50-Pin TTL RGB Interface: Simplifies integration with controllers and driver boards commonly used in embedded hardware.
Reliable Industrial Display Performance: Designed to support long lifecycle products and consistent visual quality.
B2B Procurement Friendly: Ideal for sample testing, small batch orders, and large volume contracts with volume pricing.
OEM & Customization Options: Tailored brightness, interface adaptation, mechanical specifications, and touch panel integration available on request.
No. | Item | Specification | Remark |
1 | LCD size | 10.1 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 1024X3(RGB)X600 | |
4 | Color Arrangement | RGB Stripe | |
5 | Dot pitch | 0.2175 x 0.2088 mm | |
6 | Active area | 222.72 (H) x 125.28 (V) | |
7 | Module size | 235(H) x 143(V)x5.0(D) | Note 1 |
8 | Surface treatment | HC | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | Free | |
11 | Interface | RGB(TTL) | |
12 | Contrast Ratio (Light On) | 800:1 (Typ) | |
13 | IC | ILI6150 &ILI5120 | |
14 | Weight | 85.4g (Typ.) | |
Note 1:Refer to Mechanical Drawing | |||
This 10.1-inch 1024×600 industrial TFT display screen is ideal for a variety of B2B display applications:
Industrial control panels and operator interfaces
Embedded systems and custom hardware consoles
Automation and machine monitoring dashboards
Automotive and vehicle infotainment systems (non-sunlight)
OEM workstations and diagnostic instruments
Kiosks, POS/POC terminals, and self-service displays
The 10.1″ form factor combined with WSVGA resolution and TTL interface makes it an excellent choice for engineers designing rugged and reliable visual systems.
| Procurement Feature | Benefit |
|---|---|
| Flexible Minimum Orders | Supports sample evaluation and scalable volume orders |
| Customization Options | Brightness, interface, mechanical form factor can be tailored |
| Bulk Volume Pricing | Competitive pricing for volume contracts |
| Quality Verification | Pre-shipment functional and visual test reports |
| Technical Integration Support | Assistance with system wiring, timing, and drivers |
| Supply Continuity | Stable manufacturing capacity aligned with industrial lifecycle needs |
We support engineering and procurement professionals throughout the purchasing lifecycle to streamline evaluation, integration, and volume deployment.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
10.1inch VI101EI342 Spec. Toroson.pdf
