VI156FIC00
Toroson

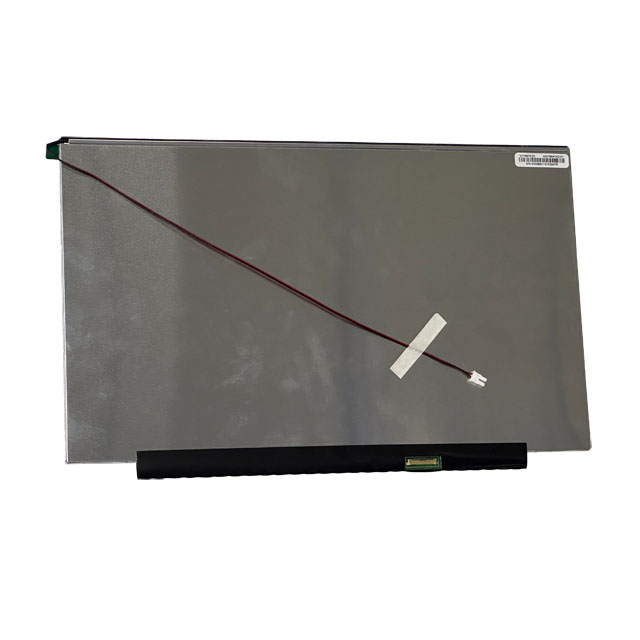

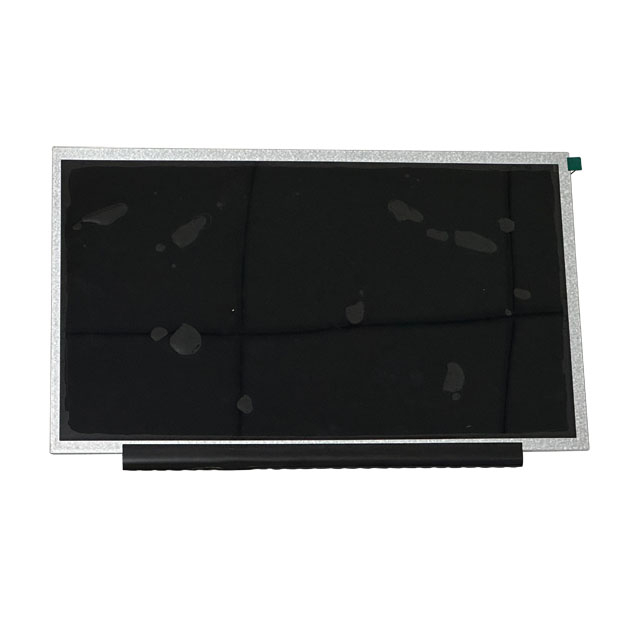

The Toroson 15.6-inch TFT LCD display module combines Full HD 1920×1080 resolution, 1200 cd/m² high brightness, and a 30-pin eDP interface for unrivaled visual performance in demanding environments. With an IPS panel delivering broad viewing angles and vivid color reproduction, this display module is engineered for industrial automation, outdoor digital signage, embedded systems, machine vision displays, and high-end OEM products.
As a trusted high brightness industrial LCD display module supplier, we support bulk orders, sample evaluation, OEM/ODM customization, and long-term procurement contracts tailored to B2B requirements.
Full HD Resolution (1920×1080) — Provides sharp, detailed images and crisp text readability, enhancing the user experience in GUIs and dashboards.
High Brightness (1200 cd/m²) — Excellent performance in high ambient light conditions such as outdoor kiosks, factory floors, automotive cockpits, and control rooms.
30-Pin eDP Interface — Offers high-speed digital communication and reliable signal transmission with industrial PCs and embedded graphics controllers.
IPS Panel Technology — Wide viewing angles and consistent color fidelity across multiple viewing directions.
Industrial-Grade Reliability — Designed for robust operation in factory, transportation, and outdoor systems where display clarity and uptime matter.
No-Frame / Integratable Form Factor — Flexible for integration into custom bezels, machine housing, kiosks, and display enclosures.
B2B Procurement Support — Volume pricing, customization (brightness, mechanical, interface), and structured supply chain support for enterprise buyers.
No. | Item | Specification | Remark |
1 | LCD size | 15.6 inch(Diagonal) | |
2 | Pixel pitch | 0.17925 (H) x 0.17925 (V) | |
3 | Resolution | 1920 RGB(H)X 1080 (V)mm | |
4 | Display mode | Normally Black | |
5 | Surface Treatment | Hard coating (3H), Anti-Glare | |
6 | Active area | 344.16*193.59 mm | |
7 | Module size | 360*222.24*6.4 mm | Note 1 |
8 | Brightness | 1200cd/m2(type) | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | Free | |
11 | Interface | eDP | |
Note 1:Refer to Mechanical Drawing | |||
This 15.6″ high brightness LCD display module is ideal for a broad spectrum of B2B display applications:
Industrial automation dashboards and HMI control panels
Outdoor self-service kiosks and digital signage
Embedded computers and operator terminals
Automotive infotainment and instrument interfaces
Medical equipment monitoring displays
Custom OEM touch interfaces and rugged embedded solutions
Its combination of resolution, brightness, robust interface and color performance positions it as a premium choice for engineering managers and procurement teams dealing with complex display requirements.
| Procurement Feature | Benefit |
|---|---|
| MOQ Flexibility | Sample orders to full production runs supported |
| Competitive Bulk Pricing | Economical for mid- to high-volume contracts |
| Customization Services | Brightness, interface, mechanical and mounting options available |
| Quality Verification | Comprehensive tests and documentation prior to shipment |
| Technical Integration Support | Guidance on driver boards, eDP timing, and system integration |
| Long-Term Supply Assurance | Stable production for enterprise lifecycle planning |
We work directly with engineering and procurement teams to ensure alignment in performance, availability, and documentation required for enterprise deployments.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
15.6inch VI156FIC00 V02 Spec. Toroson 2021.06.18.pdf
