TI080DT220
Toroson

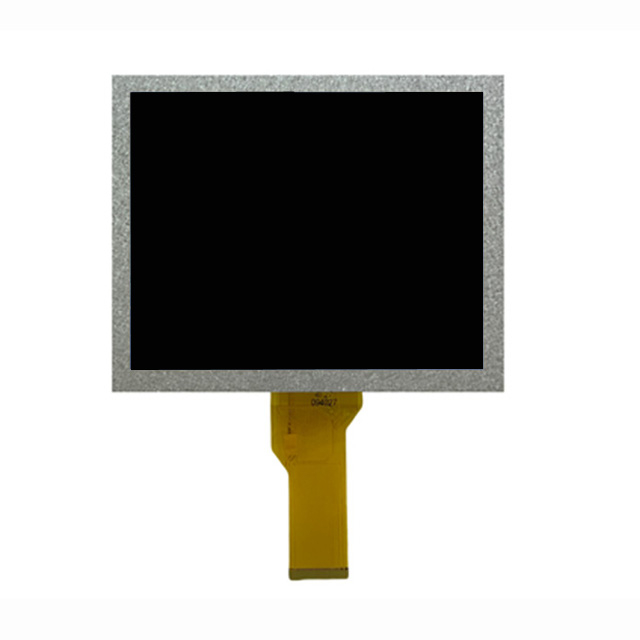

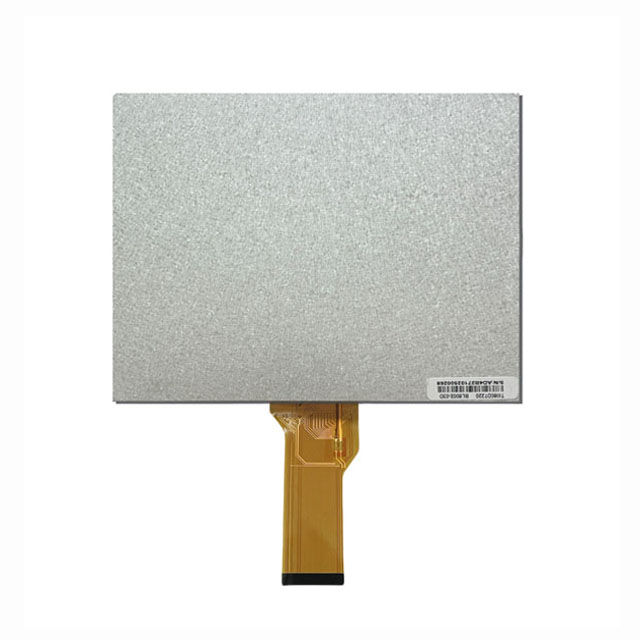

The Toroson EJ080NA-05B replacement 8-inch LCD display module is designed for industrial and embedded applications requiring reliable performance, clear visuals, and stable connectivity. Featuring an 800×600 (SVGA) resolution and a 50-pin TTL RGB interface, this display module delivers crisp graphics and robust operation in a variety of system environments.
Optimized for industrial HMI, control panels, embedded devices, and OEM applications, this 8-inch module offers a balance of performance, visibility, and cost-effectiveness. As a trusted industrial display module supplier, we support bulk procurement, sample orders, OEM/ODM customization, and technical integration guidance to engineering and sourcing teams.
8-Inch SVGA Display — 800×600 resolution provides clear, high-density visuals suitable for industrial UI, graphical interfaces, and embedded systems.
Standard 50-Pin TTL RGB Interface — Ensures simple and reliable integration with controller boards and microcontrollers.
Balanced Brightness — Typical luminance ~250 cd/m² offers solid readability in indoor and moderate lighting environments.
Industrial Grade Panel — Stable operation for industrial machines, control systems, kiosks, and embedded electronics.
Replacement Compatible — Can serve as an alternate to EJ080NA-05B for system upgrades or production refresh.
B2B Procurement Focused — Supports sample evaluation, volume supply, and customization tailored to project requirements.
No. | Item | Specification | Remark |
1 | LCD size | 8.0 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 800X3(RGB)X600 | |
4 | Display mode | Normally white, Trans-missive | |
5 | Dot pitch | 0.0675(W) × 0.2025(H) mm | |
6 | Active area | 162.0(W) × 121.5(H) mm | |
7 | Module size | 183.0(W) × 141.0(H) × 5.6(D) mm | Note 1 |
8 | Surface treatment | Anti-Glare | |
9 | Color arrangement | RGB-stripe | |
10 | View direction(Gray Inversion) | 50/70/70/70 | |
11 | Interface | Digital (TTL) | |
12 | Backlight power consumption | 1.674W (Typ.) | |
13 | Panel power consumption | 0.356W(Typ.) | |
14 | Weight | 241g (Typ.) | |
Note 1:Refer to Mechanical Drawing | |||
This 8-inch 800×600 LCD display module is well suited for:
Industrial automation panels and operator interfaces
Embedded systems and custom display devices
Kiosk displays, POI/POC terminals
Medical equipment and handheld measurement tools
Replacement screens for legacy systems and OEM devices
Engineering prototypes and proof-of-concept hardware
We provide comprehensive support, including driver board suggestions, interface guidance, and integration documentation to help reduce development time and procurement bottlenecks.
| Aspect | Benefit |
|---|---|
| MOQ Flexibility | Direct ordering available, supporting everything from samples to large-volume orders. |
| Bulk Pricing | Competitive pricing for high-volume procurement |
| Customization Options | Optional interface, mechanical, or optical enhancements |
| Sample Support | Evaluate displays before mass order |
| Quality Assurance | Pre-shipment testing and documentation |
| Technical Support | Integration & driver configuration assistance |
| Supply Continuity | Stable production for long-term B2B use |
As an experienced industrial LCD module supplier, we help sourcing and engineering teams secure reliable display components with documentation and delivery timelines aligned to project needs.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
8 inch TI080DT220（V01）Spec. Toroson 2022.11.30.pdf
