A TFT LCD module is more than just a screen — it’s a combination of several key components that determine brightness, durability, power consumption, interface compatibility, and overall performance. Understanding these components helps buyers choose the right display for their device and communicate requirements clearly with manufacturers.
When selecting a TFT LCD for an industrial product, most buyers focus on size and resolution.
But behind every display is a complex module structure made up of essential parts like the LCD cell, backlight, driver IC, polarizers, touch panel, and FPC.
Knowing how each part works — and what specifications affect performance — ensures you avoid mismatches, delays, and unnecessary costs.
This guide breaks down the critical components inside a TFT LCD module and what buyers need to understand before placing an order.

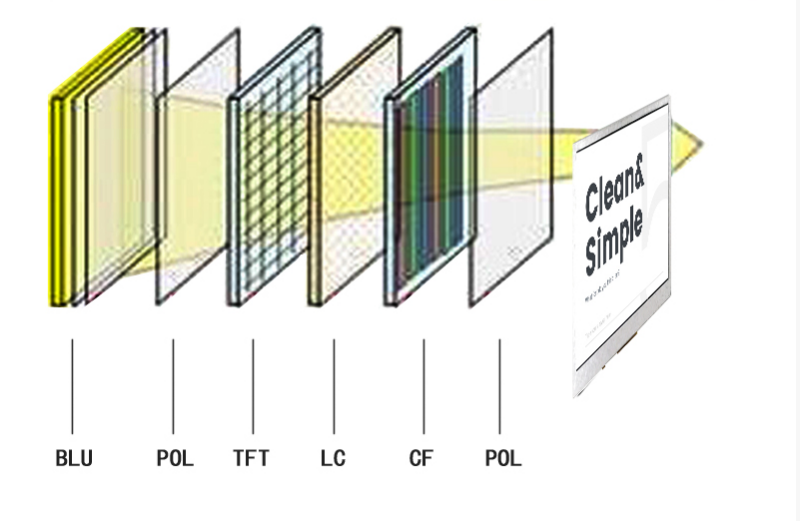

The LCD cell is the core of the display. It includes:
TFT glass substrate (transistors controlling each pixel)
Color filter glass
Liquid crystal layer between the two
Resolution (e.g., 800×480, 1024×600, 1920×1080)
Viewing angle technology (TN / IPS / VA)
Contrast ratio
Transmittance, which affects brightness
Active area and outline size
The LCD cell determines color reproduction, graphic sharpness, and general image quality.
A TFT LCD cannot produce light by itself, so it relies on the backlight.
LED light sources
Light guide plate
Diffusion films
Brightness enhancement films
Brightness (nits) — standard 300–500 nits; sunlight-readable above 1000 nits
LED lifetime (e.g., 20,000–50,000 hours)
Backlight voltage & current
Power consumption
Uniformity across the display
Backlights significantly affect outdoor visibility and power usage — critical for medical devices, handheld terminals, or automotive screens.
The driver IC converts image data into signals for the TFT matrix.
Popular IC brands: Himax, Sitronix, ILI Technology, Raydium, Novatek.
Determines interface type (RGB, MIPI DSI, LVDS, SPI, eDP)
Affects refresh speed and color depth
Controls power consumption
Impacts compatibility with your motherboard or CPU
For custom projects, confirming driver IC compatibility early prevents costly redesigns.
The FPC cable connects the TFT module to your main board.
Pin definition and pin count
Pitch (0.3mm / 0.5mm)
Connector type
Whether it includes touch panel signals
Whether a customized layout is needed
A well-designed FPC ensures stable signal transmission and simplifies installation.
A TFT LCD uses front and rear polarizers to control how light passes through.
Surface finish (glossy / matte)
Haze level
Anti-glare or anti-reflection requirements
Temperature resistance
Matte polarizers are preferred for industrial devices to avoid reflections.
Many TFT LCD modules integrate a touch panel:
Resistive Touch (RTP) — cost-effective, works with gloves
Capacitive Touch (PCAP) — multi-touch, high sensitivity, modern UI experience
Glass thickness & cover lens customization
Hardness rating (6H / 7H)
IK impact resistance for outdoor/industrial devices
Touch IC brand and firmware tuning
Touch performance directly influences user interaction and long-term durability.
Some TFT modules include a metal frame or housing to strengthen the structure.
Frame material (iron, aluminum, stainless steel)
Mounting holes or tabs
Thickness and weight
Suitability for vibration or harsh environments
Industrial applications often require higher-strength frames.
The display interface determines how data is transferred.
RGB (24-bit) — simple, affordable, common in embedded systems
SPI — for small screens
MIPI DSI — used in smartphones, high-speed
LVDS — stable, long-distance, common in industrial displays
eDP — high resolution, modern computing devices
Choosing the wrong interface may require redesigning your mainboard.
For rugged devices, an additional cover glass may be laminated on top.
Anti-glare
Anti-fingerprint coating
UV protection
Chemical strengthening
Custom logo printing
Cover glass improves durability and provides branding opportunities.
Some projects require extra enhancements:
Optical bonding (strong sunlight visibility)
OCA / OCR lamination
Built-in heaters (for -40°C environments)
EMI shielding
Gorilla Glass upgrades
These options enhance performance in extreme or specialized environments.
A TFT LCD module is a carefully engineered system — not a simple component.
From the LCD cell and backlight to the driver IC, touch panel, and FPC, each part plays a crucial role in image quality, usability, and device reliability.
By understanding these components, B2B buyers can:
Communicate requirements more clearly
Avoid compatibility issues
Prevent unnecessary redesigns
Select the most cost-effective and high-performance solution
This technical knowledge leads to better display choices and smoother project development.
