Many OEMs and equipment manufacturers face the same question when selecting a display:

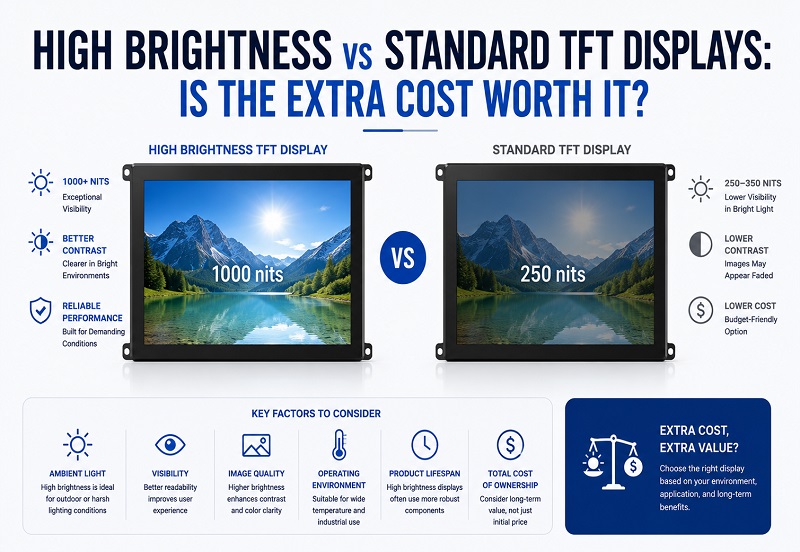

Should you choose a standard TFT display or invest in a high-brightness TFT display?
While high-brightness displays typically cost more, they can significantly improve readability, user experience, and operational reliability in challenging environments.
This guide compares both options from technical, operational, and commercial perspectives to help buyers determine whether the additional investment makes sense for their projects.
A standard TFT display is designed for indoor environments with controlled lighting.
Typical specifications include:
Brightness: 250–500 nits
LED backlight
Standard viewing performance
Lower power consumption
Lower initial cost
These displays are widely used in office equipment, indoor kiosks, household appliances, and laboratory instruments.
A high-brightness TFT display uses a more powerful LED backlight and often includes optical enhancements to maintain visibility in bright environments.
Typical specifications include:
Brightness: 800–1500+ nits
High-efficiency LED backlight
Improved thermal design
Optional optical bonding
Anti-glare (AG) and anti-reflective (AR) coatings
These displays are commonly used in outdoor equipment, transportation systems, marine electronics, and industrial machinery.
Feature | Standard TFT | High-Brightness TFT |
|---|---|---|
Brightness | 250–500 nits | 800–1500+ nits |
Outdoor Visibility | Limited | Excellent |
Power Consumption | Lower | Higher |
Heat Generation | Lower | Higher |
Initial Cost | Lower | Higher |
Typical Applications | Indoor | Indoor & Outdoor |
A standard display is usually sufficient when the equipment operates in controlled indoor environments.
Typical applications include:
Factory control rooms
Laboratory equipment
Office automation devices
Indoor medical equipment
POS terminals inside retail stores
For these applications, higher brightness may not provide a noticeable benefit.
High-brightness displays become valuable when visibility directly affects productivity, safety, or user experience.
Examples include:
Construction machinery
Agricultural equipment
EV charging stations
Outdoor kiosks
Marine navigation systems
Smart transportation terminals
In these environments, poor readability can increase operating errors and reduce efficiency.
Many buyers assume that simply increasing brightness solves outdoor visibility problems.
In reality, display readability depends on several factors working together.
Optical bonding removes the air gap between the LCD and cover glass, reducing internal reflections and improving contrast.
An AG coating diffuses reflected light, making the screen easier to read in bright conditions.
AR coatings reduce surface reflections while preserving image sharpness.
A well-designed 1000-nit display with optical bonding often performs better than a brighter display without these optical enhancements.
Higher brightness requires more energy.
OEMs developing battery-powered equipment should evaluate:
Battery capacity
Operating time
Thermal management
Charging cycles
In some portable devices, a medium-brightness display with automatic brightness adjustment may provide a better balance between visibility and battery life.
Increasing brightness also increases heat output.
Without adequate thermal management, excessive heat can:
Accelerate LED aging
Reduce backlight lifetime
Affect color stability
Increase the risk of component failure
When selecting a high-brightness display, review the supplier's recommendations for ventilation, heat dissipation, and operating temperature.
The purchase price is only one part of the overall cost.
Consider the following factors:
Cost Factor | Standard TFT | High-Brightness TFT |
|---|---|---|
Initial Purchase | Lower | Higher |
Outdoor Usability | Limited | Excellent |
Maintenance Risk | Moderate | Lower (for outdoor use) |
User Productivity | Standard | Improved |
Long-Term Value | Application dependent | Often higher in outdoor environments |
For equipment used outdoors every day, the higher initial investment may reduce downtime and improve usability over the product's lifetime.
Before selecting a display, consider:
Will the equipment be used outdoors?
What is the expected ambient light level?
Is the product battery-powered?
How long will the display operate each day?
Does the application require optical bonding?
Is readability a safety concern?
Answering these questions helps determine whether a high-brightness display is necessary.
❌ Choosing the brightest display without evaluating power consumption
❌ Ignoring optical bonding and anti-glare treatments
❌ Selecting an indoor display for outdoor equipment
❌ Comparing displays based only on brightness specifications
❌ Underestimating the impact of heat on long-term reliability
Not always. Direct sunlight, reflective cover glass, and installation angle all affect readability. Optical bonding and anti-reflective coatings are often just as important as brightness.
Generally, yes. Higher brightness requires a more powerful backlight, which increases energy consumption and heat generation.
Many industrial TFT displays support PWM or ambient light sensors, allowing automatic brightness adjustment to improve energy efficiency and extend backlight life.
In most indoor environments, a standard TFT display with 300–500 nits provides sufficient visibility. Higher brightness is usually only beneficial in areas with strong ambient lighting.
The decision between a standard TFT display and a high-brightness TFT display should be based on the operating environment rather than price alone.
For indoor applications with controlled lighting, a standard TFT display often provides the best balance of performance and cost. For outdoor or high-ambient-light environments, a high-brightness display—combined with optical bonding and anti-glare technologies—can significantly improve readability, reliability, and long-term value.
Evaluating the total cost of ownership, rather than just the initial purchase price, helps OEMs choose the most suitable display solution for their products.
