Quick Summary
TFT displays and IPS displays are both types of LCD technologies, but they serve different purposes. While standard TFT LCDs are cost-effective and reliable, IPS (In-Plane Switching) displays offer wider viewing angles and better color accuracy. In industrial environments, the choice depends on your priorities — performance, durability, or budget.
When designing an industrial control panel, test instrument, or vehicle dashboard, the display is one of the most critical components. It must perform flawlessly under extreme temperatures, vibration, and long operating hours.
Manufacturers often face a key decision:
Should you choose a TFT display or an IPS display?
Although both belong to the LCD family, their internal structures and visual performances differ significantly. Understanding these differences helps you select the best display for your industrial application.

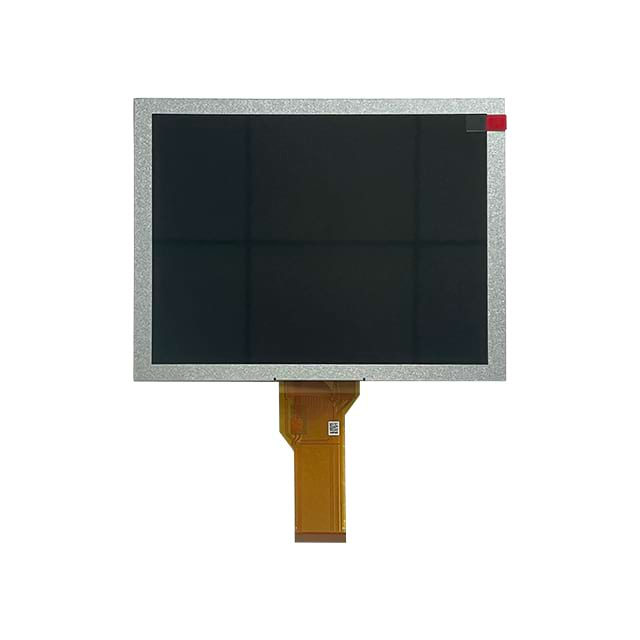

TFT (Thin Film Transistor) is the foundation of most modern LCDs.
Each pixel in a TFT LCD is controlled by a transistor that regulates light transmission through liquid crystals.
Advantages of TFT Displays:
Cost-effective and widely available
Sharp images and stable performance
Fast response times suitable for real-time monitoring
Long lifespan with low defect rate
Simple integration and flexible size options
However, standard TFT displays may have narrower viewing angles and less color uniformity when viewed from the side — which is where IPS comes in.
IPS (In-Plane Switching) is an improved version of TFT technology.
It rearranges the liquid crystal molecules to move horizontally instead of vertically, maintaining consistent color and brightness across wider angles.
Advantages of IPS Displays:
Wide Viewing Angle: Up to 178° without color distortion
Better Color Accuracy: Ideal for graphics or image-based interfaces
Stable Image under Pressure: No “shadow” effect when touched or pressed
Excellent Visual Experience: Consistent brightness and contrast in any direction
The tradeoff is higher cost and slightly higher power consumption compared to traditional TFT displays.
| Feature | Standard TFT Display | IPS TFT Display |
|---|---|---|
| Viewing Angle | 90–120° | Up to 178° |
| Color Reproduction | Good | Excellent |
| Response Time | Fast (10–20 ms) | Slightly slower |
| Contrast Ratio | Moderate | Higher |
| Power Consumption | Lower | Slightly higher |
| Operating Temperature | Wide range (-20°C to +70°C) | Similar or slightly narrower |
| Cost | Lower | Higher |
| Typical Use | Industrial, Automotive, Consumer | Medical, High-end Industrial, Automotive Premium |
When it comes to industrial applications, both technologies can perform well — the key is matching the display to the environment and user needs.
Your product focuses on cost efficiency
The display is viewed straight-on (e.g., fixed control panels)
You need long-term reliability with minimal power use
The device operates in rugged environments with wide temperature ranges
Example Applications:
Factory control systems, handheld meters, machine tools, POS terminals.
The display will be viewed from multiple angles
Color accuracy and contrast are critical (e.g., image or data analysis)
The device will be used in bright environments or public-facing screens
You want a modern user experience with better visuals
Example Applications:
Medical monitors, vehicle infotainment systems, industrial HMI panels, smart kiosks.
Both TFT and IPS displays can be customized for industrial use with features like:
High brightness (1000–1500 nits) for outdoor readability
Wide temperature range from -30°C to +85°C
Optical bonding to prevent moisture and improve sunlight performance
Anti-glare or anti-reflective coatings
Touch integration (capacitive or resistive)
When combined with these enhancements, even a standard TFT can deliver reliable performance in demanding environments.
| Factor | Recommended Option | Reason |
|---|---|---|
| Tight Budget | Standard TFT | More affordable and sufficient for basic UI |
| High-End User Experience | IPS TFT | Better viewing angles and color |
| Outdoor / Harsh Environment | High Brightness TFT | Sunlight readability and durability |
| Long Product Lifecycle | Industrial TFT / IPS | Stable supply chain and customization options |
For most industrial manufacturers, the decision is not about which one is better, but which one is fit for purpose.
Modern industrial displays are evolving toward hybrid solutions:
Wide-viewing TFT panels bridging the gap between TFT and IPS
Transflective TFT displays for ultra-low power outdoor visibility
High-durability coatings and long-lifespan LED backlights
These innovations allow companies to enjoy IPS-level performance with TFT-level costs — the best of both worlds.
When choosing between TFT and IPS displays for industrial use, there’s no one-size-fits-all answer.
TFT LCDs deliver unbeatable cost efficiency and reliability.
IPS panels excel in visual performance and multi-angle readability.
By assessing your project’s environmental conditions, viewing needs, and budget, you can select the most suitable display solution for your industrial product.
