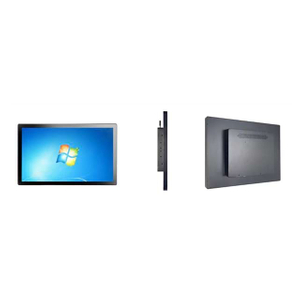

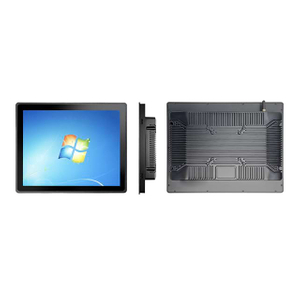

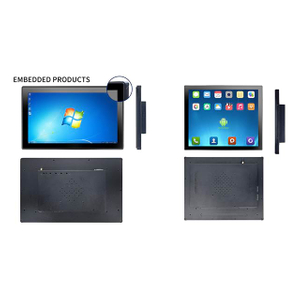

An embedded LCD structure kit is a high-precision, structural enclosure framework designed to secure, protect, and align liquid crystal display panels and their associated driver boards within industrial, commercial, or ruggedized kiosks. Serving as the primary monitor housing, these kits ensure mechanical stability, optimal electromagnetic interference (EMI) shielding, and precise spatial tolerances (within ±0.1mm). Correct installation balances material selection (Sheet Metal vs. Polycarbonate/ABS), thermal dissipation airflow design, and fast-assembly mounting protocols to protect the display module from mechanical deflection, vibration, and thermal stress.
The choice of structural material for the monitor housing directly impacts the structural rigidity, weight (gsm equivalents in component density), and environmental resistance of the display system.
Sheet Metal (SECC / AL 5052): Offers maximum tensile strength, inherent grounding paths for EMI reduction, and superior thermal conductivity. It is required for high-vibration industrial machinery interfaces.
Engineering Plastics (PC / ABS Blends): Deployed when weight reduction and complex, injection-molded geometries are prioritized. These must feature flame retardant ratings meeting UL94-V0 parameters.
The following parameters guide materials selection based on operational environment stress factors:
Engineering Parameter | SECC (Galvanized Steel) | Aluminum 5052 | PC/ABS Alloy (UL94-V0) | Testing Standard |
Material Thickness | 1.0mm- 2.0mm | 1.2mm- 2.5mm | 2.5mm- 4.0mm | Caliper Verification |
Tensile Strength | ≥ 270MPa | ≥ 190MPa | ≥ 50MPa | ASTM D638 / E8 |
Thermal Conductivity | 50 W/m·K | 138 W/m·K | 0.22 W/m·K | ASTM E1461 |
Weight Contribution | High (7.85 g/cm³) | Medium (2.68 g/cm³) | Low (1.15 g/cm³) | Density Gradient |
EMI Shielding | ≥ 60dB | ≥ 55dB | Requires conductive coating | ASTM D4935 |
High-brightness LCD panels (exceeding 1000nits) generate substantial thermal loads from the LED backlight units (BLU), often driving internal housing temperatures past 65℃ without adequate ventilation. Prolonged thermal stagnation accelerates liquid crystal degradation and leads to isotropic blackening spots.
To optimize heat dissipation within the enclosure structure:
Convection Intakes: Position air intake vents at the lowest structural baseline of the chassis.
Exhaust Pathing: Position active cooling fans or passive exhaust slots at the top boundary to exploit natural buoyancy loops.
Thermal Interfacing: Maintain a minimum 15mm clearance gap between the driver board components and the rear surface of the panel, backed by sil-pads or thermal gap fillers with a minimum performance rating of 3.0 W/m·K.
To lower production costs and increase throughput in high-volume assembly lines, modern display kits utilize tool-less or reduced-fastener integration configurations.
Incorporating a standardized Structure Kit allows integration teams to drop panels directly into pre-aligned retention clips. By replacing traditional 8-screw arrays with a 4-point snap-lock or slide-in guide rail system, assembly cycle times drop from an average of 240 seconds per unit to under 45 seconds. Additionally, integrated perimeter gasket tracks allow for rapid compression-fit placement of silicon or EPDM gaskets, yielding an instant IP65 dust and water seal along the front bezel boundary under a uniform hot-press bonding or mechanical clamping force of 1.5 N/cm².
Q1: What is the factory MOQ for custom modifications on sheet metal monitor housing designs?
Our standard minimum order quantity (MOQ) for stock structural configurations is 50 units. For custom CNC laser cutting, bespoke powder coating color matching, or specific mounting hole placement, the production line setup requires an MOQ of 200 units per batch.
Q2: How do your plastic composite structure kits perform during UL94 flammability audits?
All non-metallic components extruded or molded for WithTech structural display housings utilize premium polymer resins pre-certified to meet UL94-V0 flammability ratings, guaranteeing that vertical flaming ceases within 10 seconds with zero flaming drops.
Q3: Can these structure kits support heavy-duty open-frame displays in outdoor kiosks?
Yes. Our SECC and AL5052 configurations are engineered to withstand structural loads up to 45 kg and pass salt spray corrosion testing under ISO 9227 for 500 hours, making them fully compliant with ruggedized outdoor specifications.
