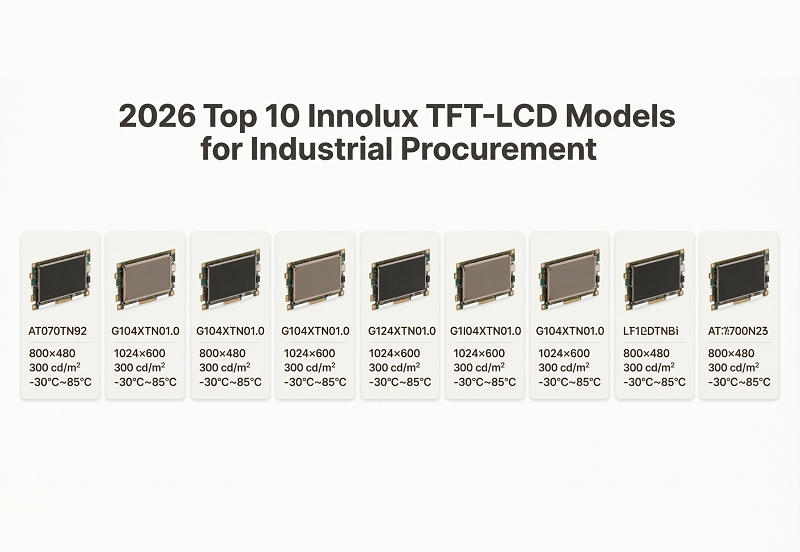

Standardizing on high-availability Innolux modules minimizes supply chain risk for R&D projects requiring long-term lifecycle support. The models listed below, including the AT070TN92 and AT056TN53, represent the most requested units for industrial automation, medical instrumentation, and automotive HMI systems, characterized by stable 50,000-hour Backlight life and wide operating temperature ranges.
Procurement managers should prioritize modules with documented PCN history and sustained manufacturing volume. These 10 models represent the balance of cost-efficiency and mechanical consistency required for Tier-1 industrial integration.
Model Number | Active Area (Diagonal) | Resolution | Interface | Typical Brightness |
AT070TN92 | 7.0 inch | 800 x 480 | TTL | 250 nits |
AT056TN53 | 5.6 inch | 640 x 480 | TTL | 350 nits |
G104X1-L04 | 10.4 inch | 1024 x 768 | LVDS | 400 nits |
G121X1-L03 | 12.1 inch | 1024 x 768 | LVDS | 500 nits |
G150XG03 V3 | 15.0 inch | 1024 x 768 | LVDS | 350 nits |
EJ070NA-01J | 7.0 inch | 1024 x 600 | LVDS | 400 nits |
G101ICE-L01 | 10.1 inch | 1280 x 800 | LVDS | 400 nits |
M150GNN2 R1 | 15.0 inch | 1024 x 768 | LVDS | 400 nits |
G070Y2-L01 | 7.0 inch | 800 x 480 | LVDS | 450 nits |
G170EG01 V1 | 17.0 inch | 1280 x 1024 | LVDS | 350 nits |
Selection of the correct a-Si TFT-LCD module depends on the specific environmental constraints of the end product.
Industrial Automation: Models like the G104X1-L04 are selected for their LVDS signal stability in high-EMI environments. These panels maintain a 1000:1 contrast ratio, critical for reading diagnostic data in factory settings.
Medical Devices: Precision is required. Models with high NTSC color gamut coverage are necessary for displaying color-coded alerts and imaging.
Portable Instrumentation: The AT070TN92 and AT056TN53 are optimized for low-power consumption, making them standard for battery-powered diagnostic tools where heat dissipation is limited.
As of Q2 2026, Xiamen Toroson maintains regional buffer stock for these 10 models to mitigate volatility in semiconductor production.
High-Volume Availability: Standard modules such as the G070Y2-L01 are held in quantities exceeding 5,000 units to support immediate line-down requirements.
EOL Protection: For models nearing EOL, we offer specific LTB (Last Time Buy) management services to secure 12-24 months of production inventory.
Technical Support: Every unit shipped is accompanied by official factory-certified QC reports and [Innolux Product List] documentation to ensure electrical parameter verification.
Q1: What are the primary differences between the AT070TN92 and G070Y2-L01?
The AT070TN92 utilizes a parallel TTL interface and is common in legacy systems. The G070Y2-L01 uses an LVDS interface, offering better signal integrity and higher brightness (450 nits vs 250 nits) for modern industrial designs.
Q2: Are these models compatible with custom touch integration?
Yes. All listed models can be paired with 4-wire resistive or projected capacitive (PCAP) touch sensors. We provide optical bonding to ensure the touch module meets the specific IK-rating requirements of your enclosure.
Q3: How often are these models updated by Innolux?
Industrial-grade Innolux models are designed for long-term consistency. Significant hardware revisions are tracked via PCN (Product Change Notifications). We provide full transparency on any manufacturing changes for units purchased through our Products page.
