How to Choose the Right TFT Display Size and Resolution?

Why Display Size and Resolution Matter

The TFT display is the main human–machine interface. A mismatch in size or resolution can cause:

• Poor readability

• Unnecessary processing load

• Higher BOM cost

• Mechanical redesigns

• Shorter battery life

Making the right choice early avoids these issues.

Step 1: Define the Viewing Distance

Viewing distance determines how much resolution is actually useful.

Typical Viewing Distances

Rule of Thumb:
If users can’t see individual pixels at normal distance, higher resolution adds little value.

Step 2: Match Display Size to Enclosure Space

The display must fit naturally within the product housing.

Key Considerations

• Maximum cutout size

• Bezel width

• Mounting clearance

• Cable routing and connector space

OEM Tip:
Leave enough space for backlight heat dissipation, especially for high-brightness TFT displays.

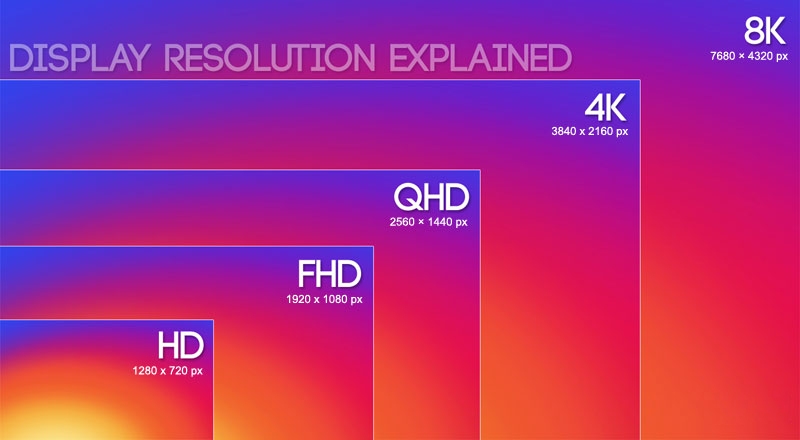

Step 3: Choose an Appropriate Resolution

Resolution affects clarity, processing load, and interface complexity.

Common TFT Size–Resolution Combinations

Higher resolution means:

• More GPU/MCU processing

• Higher power consumption

• Higher interface bandwidth

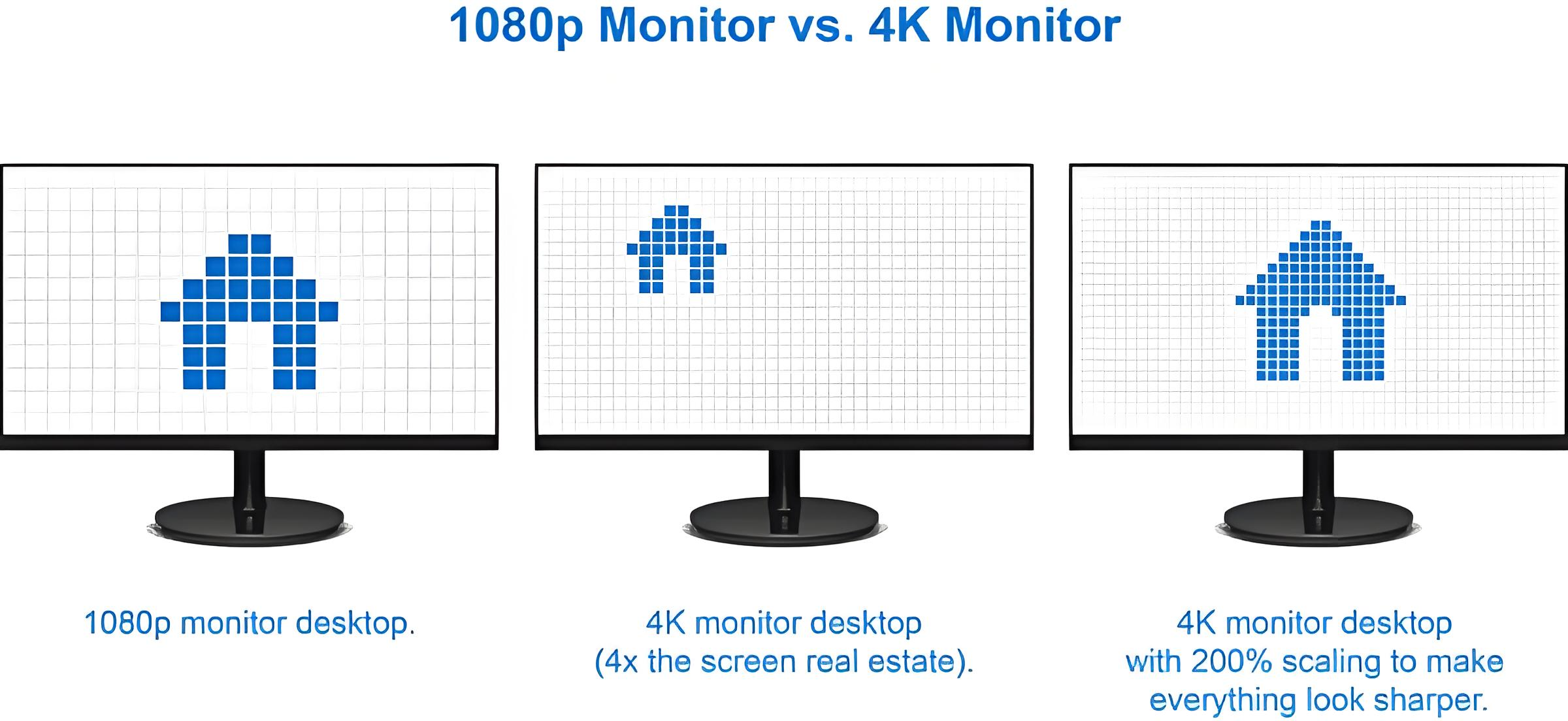

Step 4: Understand Pixel Density (PPI)

Pixel density (PPI) affects perceived sharpness.

Recommended PPI Ranges

• Industrial HMI: 100–150 PPI

• Handheld devices: 150–250 PPI

• High-end UI: 250+ PPI

OEM Insight:
Beyond a certain PPI, the improvement is negligible for industrial users.

Step 5: Consider Interface Limitations

The interface may limit usable resolution.

Interface vs Resolution Capability

• SPI: Low resolution only

• RGB: Moderate resolution

• LVDS: Suitable for mid to high resolution

• MIPI DSI: High resolution, compact design

• eDP: High resolution with long cable support

Choosing too high a resolution for the interface can cause signal instability.

Step 6: Balance Brightness, Power, and Resolution

Higher resolution panels often require stronger backlights.

Trade-Offs to Consider

• High resolution → higher brightness needed

• Higher brightness → higher power and heat

• More heat → shorter backlight lifespan

OEM Tip:
For outdoor devices, prioritize brightness and contrast over ultra-high resolution.

Step 7: UI Design and Content Layout

UI design impacts how much resolution is truly necessary.

Questions to Ask

• Text-heavy or icon-based UI?

• Large buttons or fine graphics?

• Static information or animations?

Well-designed UI can perform perfectly on moderate resolution displays.

Step 8: Cost and Supply Chain Impact

Uncommon size or resolution increases risk.

Potential Issues

• Higher MOQ

• Longer lead time

• Limited panel suppliers

• Higher EOL risk

Standard sizes offer better long-term availability.

Common Mistakes OEMs Make

❌ Choosing resolution based on consumer devices
❌ Ignoring interface bandwidth
❌ Oversizing the display for marketing reasons
❌ Underestimating power consumption
❌ Forgetting long-term supply availability

Quick Decision Checklist

✔ Define viewing distance
✔ Confirm enclosure limits
✔ Match resolution to interface
✔ Evaluate processing capability
✔ Balance clarity with power
✔ Prefer standard panel sizes

Choosing the right TFT display size and resolution is a strategic decision, not a cosmetic one.

OEMs who balance usability, system capability, and long-term supply achieve better product performance with lower total cost.

Making this choice correctly from the beginning prevents redesigns and ensures a smoother path to mass production.
