Outdoor readability requires a minimum luminance of 1000 cd/m² (nits) and a high contrast ratio to overcome ambient solar reflection. Implementing high-brightness TFT-LCDs involves optimizing the LED backlight array, improving the transparency of the a-Si TFT-LCD substrate, and managing the resulting thermal load to prevent isotropic liquid crystal failure. For industrial and automotive applications, these modules must maintain a Backlight life of 50,000 hours while operating in environments exceeding 10,000 lux.
In industrial display engineering, "Nits" is the standard unit for luminance, equivalent to one candela per square meter (1 nit = 1 cd/m²). Standard office monitors operate between 200 and 300 nits, which is insufficient for outdoor environments where sunlight intensity can reach 30,000 to 100,000 lux. To achieve "Sunlight Readability," a panel must provide enough output to maintain a contrast ratio of at least 5:1 under direct illumination.
Luminance Requirements by Environment:
Indoor Industrial: 350 - 450 nits.
Outdoor Shaded/Semi-Outdoor: 500 - 800 nits.
Direct Sunlight (Automotive/Marine): 1000 - 2500+ nits.

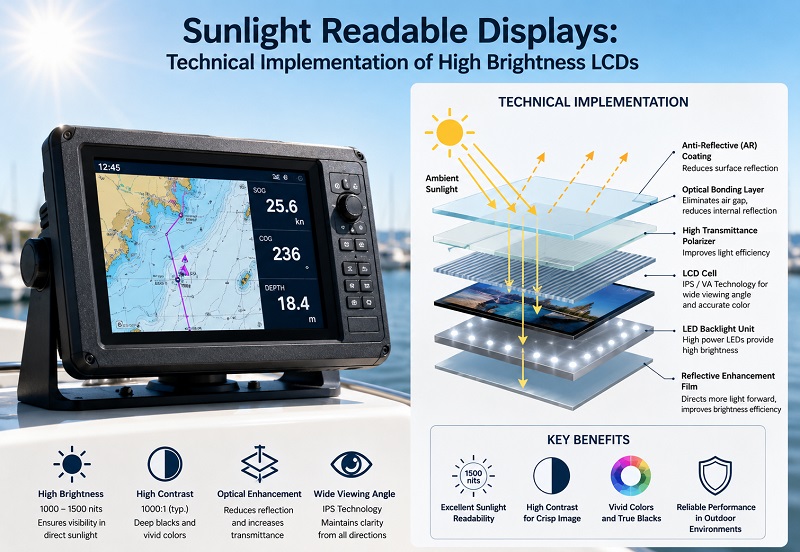

To reach high-brightness thresholds, manufacturers modify the backlight unit (BLU) and the optical stack. This involves moving from edge-lit configurations to high-density direct-lit LED arrays and utilizing specialized optical films.
Technical Parameter | Standard Industrial Panel | High Brightness Module |
Typical Luminance | 350 nits | 1000 - 1500 nits |
LED Backlight Array | Edge-lit (Single/Dual) | Direct-lit / High-density LED |
Operating Temp Range | -20°C to +70°C | -30°C to +85°C |
Power Consumption | 5W - 8W (typical 10.1") | 15W - 25W (typical 10.1") |
Contrast Ratio | 800:1 | 1000:1+ |
Optical Enhancement Techniques:
High-Efficiency LED Selection: Using LEDs with higher lumen-per-watt ratings to minimize heat.
Brightness Enhancement Film (BEF): Utilizing prismatic films to refract light toward the viewer's Active Area.
Optical Bonding: Eliminating the air gap between the LCD and the cover glass to reduce internal reflection by up to 400%.
Increasing luminance to 1500 nits generates significant heat, which can lead to "Blackening Effect" if the liquid crystals reach their clearing point. Sustaining a 50,000-hour MTBF requires active or passive cooling strategies to ensure the internal temperature does not exceed the operating temp -30°C to +85°C limit.
Thermal Mitigation Strategies:
Aluminum Heat Sinks: Integrated into the rear chassis to conduct heat away from the LED bar.
Constant Current Drivers: Precise LED driving to prevent over-voltage, which accelerates LED decay and shifts the NTSC color gamut.
Automatic Dimming: Utilizing ambient light sensors to reduce brightness at night, extending the total Backlight life and reducing power consumption.
Implementing these displays through a [Custom Series] ensures that the mechanical dimensions and LVDS interface remain compatible with existing enclosures while providing the necessary optical performance for outdoor deployment.
Q1: Will high-brightness LCDs consume significantly more power?
Yes. A 1000-nit panel typically requires 2x to 3x the power of a standard 300-nit panel. For battery-operated devices, we recommend integrating PWM dimming to adjust brightness based on real-time ambient light levels.
Q2: How does optical bonding improve sunlight readability?
Optical bonding fills the air gap between the LCD and touch glass with index-matching resin. This reduces the reflection of external light, significantly improving the effective contrast ratio without requiring excessive power increases for the backlight.
Q3: What is the lead time for custom high-brightness Innolux modules?
Standard high-brightness modifications for Innolux panels typically have a 6–8 week lead time. For existing stock in our [Custom Series], shipping can be arranged within 5–10 business days for bulk evaluation samples.
