Utilizing customized Flexible Printed Circuit (FPC) cables is mandatory for integrating industrial a-Si TFT-LCD modules into non-standard mechanical enclosures or electrically noisy environments. Standardized display cables lack the specific trace geometry and shielding configurations required to guarantee EMI (Electromagnetic Interference) margins and signal integrity for high-bandwidth interfaces like dual-channel LVDS or MIPI DSI. Specifying tailored display cables through a Custom Series ensures that the liquid crystal panel maintains stable timing parameters and meets the target NTSC color gamut specification without chromatic artifacts caused by data loss.
The geometry of industrial and automotive HMI (Human-Machine Interface) units often dictates complex, multi-fold FPC routing to connect the display Active Area to the main controller board. Standard polyimide cables exhibit limited bend radii and cannot accommodate customized connection angles without introducing delamination risks.
Parameter / Metric | Standard 30-pin LVDS FPC | Tailored FPC Display Cable |
Material Thickness | 0.12mm ±0.03mm (Uniform) | 0.08mm - 0.15mm (Tailored per segment) |
Minimum Bend Radius | > 1.5mm | Custom (Multi-fold configurations) |
Trace Geometry | Fixed 0.3mm / 0.5mm pitch | 0.2mm to 1.0mm pitch (Customizable) |
ZIF Connector Type | Standard Top/Bottom Contact | Any (Side-contact, customized locks) |

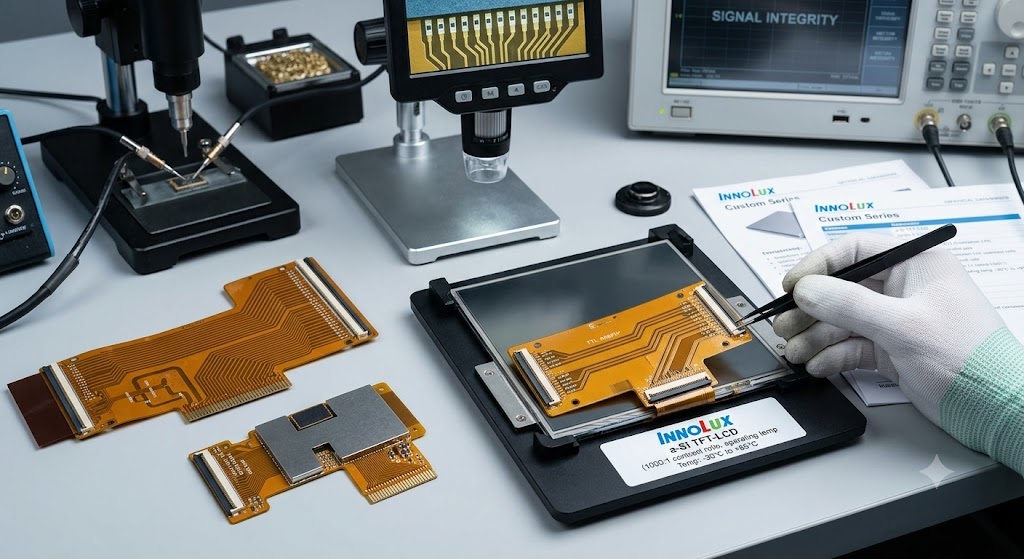

By utilizing tailored FPC design, engineers can specify Z-folds, L-folds, and localized stiffeners (Fr4 or polyimide) to reinforce connection points near the panel interface. This ensures that the module remains mechanically robust during wide-range operating temp -30°C to +85°C cycling.
Operating high-speed video interfaces near sources of high EMI, such as servo motor drivers or wireless transceivers, requires precise control over differential impedance.
The transition of the video data—whether LVDS interface, eDP, or MIPI—requires exact impedance matching to prevent signal reflections and data errors. Standard cables provide generic cross-hatching, which is often insufficient.
Controlled Impedance (100Ω ±10%): Customized FPC layers utilize localized solid ground planes and optimized trace widths to maintain differential impedance, crucial for sustaining the panel's rated 1000:1 contrast ratio.
Shielding Configurations: For medical instrumentation and automotive clusters, tailored cables incorporate conductive aluminum or copper foil shielding (with localized grounding points) to minimize EMI susceptibility and prevent color depth degradation.
Cross-talk Mitigation: Customized trace routing ensures adequate separation between high-speed differential pairs and lower-speed backlight or I2C control signals, critical for ensuring stable Backlight life dimming.
Specifying customized connectivity requires synchronization with the LCD manufacturer and a validated authorized distributor to manage the NRE (Non-Recurring Engineering) costs and lead times.
The Tailored FPC Procurement Workflow:
Technical Consultation (Weeks 1-2): We analyze the target chassis layout, interface requirements (e.g., specific FPC length and connector type), and environmental conditions (shock/vibration).
NRE and Prototyping (Weeks 3-6): Development of specific FPC artwork, mask tooling, and localized stiffener manufacturing. 10-25 prototype units are produced for verification.
Verification and Approval (Weeks 7-8): Signal integrity, mechanical fit, and environmental chamber testing are performed against the target industrial specifications.
Choosing this customization path via our Custom Series program ensures that your final display assembly adheres to strict 8D-methodology quality reports and long-term supply stability.
Q1: How much NRE (Non-Recurring Engineering) cost is associated with a customized FPC design? NRE for a standard 1-layer or 2-layer custom FPC typically ranges from $1,500 to $3,000. This fee covers mask development, customized stiffeners, and a set of prototypes (10-25 units) for validation. For mass-production orders through our [Custom Series], this NRE can often be amortized over the total volume.
Q2: What is the typical lead time for modified FPC samples? Standard catalog modifications generally have a 4 to 6-week lead time from artwork approval to physical samples. This includes the manufacturing and lamination of the specialized polyimide material.
Q3: Can customized FPC cables improve LCD resistance to thermal shock? Yes. Tailored designs utilize localized polyimide stiffeners to reinforce high-stress connection points. This prevents trace fractures and FPC delamination during extreme temperature cycling within the module's rated operating temp -30°C to +85°C specification.
