Selecting between IPS (In-Plane Switching) and TN (Twisted Nematic) structures determines the optimal LCD viewing angle, chromatic stability, and BOM (Bill of Materials) budgeting for an embedded system. While TN modules provide an advantage in unit cost and pixel response times, IPS technology prevents the grayscale inversion that degrades legibility on vertically or horizontally tilted displays. For R&D engineers, this choice dictates whether a product can maintain a uniform contrast ratio across its entire Active Area under off-axis observation.
The core differentiator between TN and IPS technologies is the physical alignment and rotation of the liquid crystal molecules relative to the substrate glass.

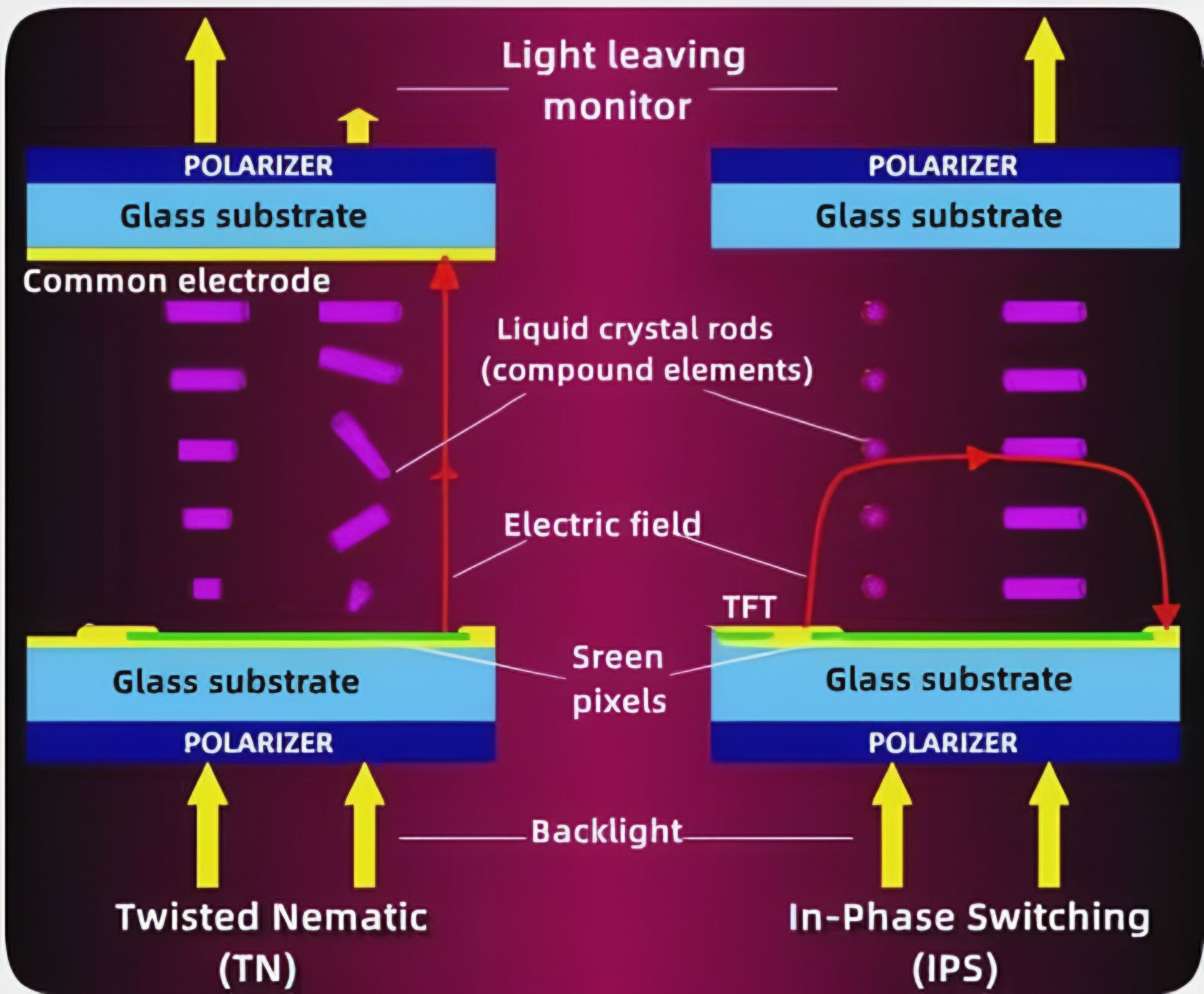

Physical alignment differences of liquid crystal molecules under an electric field
In a standard a-Si TFT-LCD with a TN matrix, the liquid crystals twist helically perpendicular to the glass substrate when no voltage is applied. This vertical movement causes asymmetrical light refraction, leading to extreme color shifts and image inversion at steep viewing angles, particularly in the 6 o'clock or 12 o'clock direction.
Conversely, IPS architectures feature liquid crystals oriented parallel to the panel plane. When an electrical field is introduced via horizontal electrodes, the molecules rotate within the same plane, keeping light transmittance uniform from almost any position.
Parameter / Metric | Twisted Nematic (TN) Matrix | In-Plane Switching (IPS) Matrix |
Typical Viewing Angle (L/R/U/D) | 70° / 70° / 60° / 60° (Asymmetric) | 85° / 85° / 85° / 85° (Symmetric) |
Grayscale Inversion Artifacts | Present at off-axis vertical views | Absent |
Average Contrast Ratio | 500:1 to 700:1 | 1000:1 to 1300:1 |
Response Time (Tr + Tf) | 5ms to 10ms (Fastest) | 15ms to 25ms (Moderate) |
NTSC Color Gamut Coverage | 45% to 60% | 70% to 72%+ (High Precision) |
Backlight Power Consumption (Typical) | Baseline (Lower) | +15% to 20% higher for equivalent nits |
Integrating an industrial display requires matching performance requirements with long-term cost viability. TN displays involve fewer mask layers during fabrication, resulting in lower structural cost metrics.
BOM Cost Reductions: TN panels are generally 15% to 25% less expensive than equivalent sizing in IPS. For high-volume consumer-industrial crossovers or simpler text-based HMIs, TN provides an optimal financial return.
Backlight Driving Requirements: IPS panels have a lower native aperture ratio because the internal transistor electrodes block more light. To achieve an identical luminance specification (e.g., 500 nits), an IPS panel requires a higher-density LED backlight matrix, which slightly elevates power draw and thermal dissipation requirements.
Signaling Compatibility: Both architectures scale across standard interfaces. Low-resolution TN panels frequently run on parallel TTL lines, while high-density options utilize a single or dual-channel LVDS interface.
Environmental layouts determine whether the optical profile of an IPS panel justifies its premium cost structure.
For standard factory control racks positioned at eye level, TN panels are functional and cost-effective. However, if the control interface is mounted on mobile robotic units or placed at low machine bases where operators look down at the display, an IPS panel is necessary to prevent text obscurity caused by vertical grayscale inversion.
Medical monitors demand high spatial visibility. Systems used in patient monitoring, surgical assistance, or laboratory instrumentation require an IPS panel to ensure that multi-parameter color scales, vital signs, and graphical wave sweeps are legible to clinical personnel standing anywhere in the operating room. To explore high-reliability medical selections, review our 10.1" IPS Product options.
Outdoor vehicles experience changing sunlight tracking and off-axis user positioning. Instrument clusters must remain readable under wide environmental conditions. IPS displays paired with high-brightness backlights ensure that critical warning signals remain visible from -30°C to +85°C.
Q1: Does switching from a TN to an IPS panel require a redesigned enclosure?
No, provided you select an exact form-factor replacement from Innolux. Many industrial modules share identical active areas, outer frame dimensions, screw-hole patterns, and 30-pin or 40-pin LVDS pinouts across both TN and IPS variants.
Q2: How does panel matrix type affect total Backlight life?
The matrix architecture does not directly alter the LEDs. However, because IPS panels require more backlight power to match TN brightness, the LEDs run slightly hotter. Proper thermal design is needed to maintain the standard 50,000-hour MTBF rating.
Q3: Are there intermediate technologies between standard TN and IPS?
Yes. MVA (Multi-domain Vertical Alignment) and EWV (Extended Wide View) film-enhanced TN panels exist. They improve the horizontal viewing angle up to 80°, but they still do not match the complete 85°+ symmetric visual hemisphere of native IPS glass.
