Smart Home Control Panel Layouts: Mechanical and Electrical Specifications for Home Automation LCD Units

Integrating display modules into residential wall housings requires balancing slim mechanical framing with low power metrics. Smart home control panels demand specialized a-Si TFT-LCD matrices that operate on low standby currents while maintaining constant interface readiness. Sourcing components with strict dimensional and electrical tolerances prevents premature panel degradation and thermal accumulation within sealed wall cavities.

1. Mechanical Optimization: Ultra-Narrow Bezel Engineering (<2.5mm Dimensions)

Wall-mounted automation panels require minimized outer frame dimensions to maximize the visible Active Area within standardized mechanical junction box limitations. Standard industrial displays feature thick metal frames for structural anchoring, whereas smart home variants utilize customized slim-bezel assemblies.

• Bezel Reduction: Premium smart home glass modules feature a physical border (bezel-to-active-area) measuring less than 2.5mm, enabling flat glass-on-glass encapsulation.

• Structural Integration: To compensate for the thin outer bezel, panels incorporate a hardened glass cover plate using OCA (Optically Clear Adhesive) bonding. This increases impact resistance to IK07 standards without introducing optical distortion or air gaps.

• COF Assembly: Utilizing Chip-on-Film (COF) driver IC placement instead of traditional Chip-on-Glass (COG) reduces the bottom border profile by up to 40%, producing symmetrical display modules.

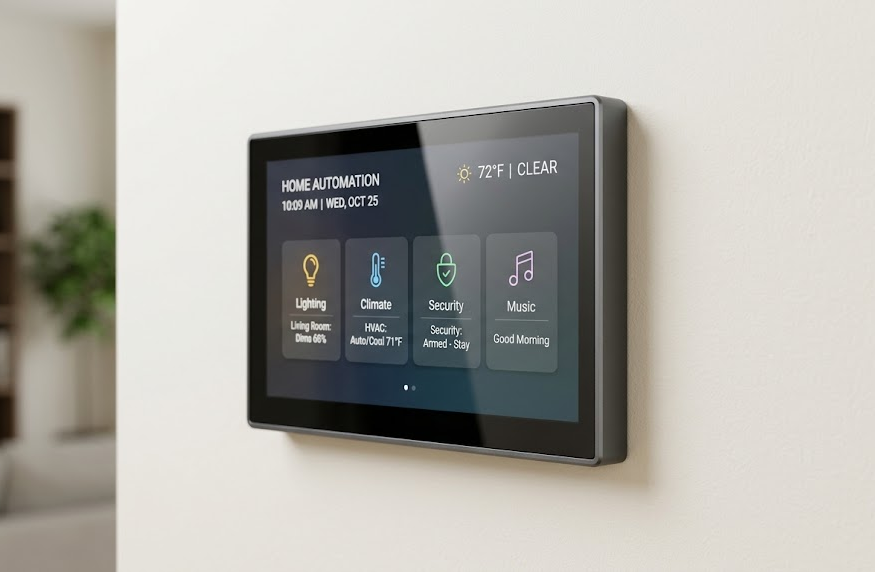

Smart home HMI control panel display module with ultra-narrow bezel and bonded capacitive touch screen glass frame.

2. Electrical Constraints: Managing Standby Power Dissipation under 150mW

Smart home displays operate continuously, but they remain in an idle or sleep state for over 90% of their operational cycle. Because these units are often powered via low-wattage integrated AC-DC wall transformers or Power over Ethernet (PoE), static power draw must be minimized.

Power and Optical Metric Comparison

To sustain a Backlight life of 30,000 hours, smart home controllers must implement dynamic backlight scaling. By dropping the LED string current down to single-digit milliamps during inactivity, the panel's ambient thermal footprint drops, protecting surrounding wireless transceivers (Zigbee/Matter) from heat-induced frequency drift.

3. Optical Interface Quality and Color Precision Selection

The display matrix must ensure legible viewing angles for residents of varying heights, preventing the chromatic inversion common in legacy TN screens. Selecting a symmetric matrix architecture guarantees that text instructions remain clear from any entry path.

• Symmetric Viewing Planes: IPS and MVA technologies provide 85°/85°/85°/85° viewing angles. This removes the contrast drop-off when the controller is viewed from below or from sharp angles.

• Color Saturation Accuracy: Maintaining a stable 50% to 70% NTSC color gamut prevents custom user interface themes and status icons from appearing washed out under standard interior lighting conditions.

• Touch Panel Integration: Interfacing a capacitive touch sensor over the display requires low-impedance ITO (Indium Tin Oxide) trace layouts to ensure responsive touch registration when driving thin 2-lane or 4-lane MIPI interfaces.

For high-volume residential projects, selecting panels optimized for the Consumer Electronics market segment provides a balance of visual accuracy and mass-production availability.

Semantic FAQ

Q1: Can an LVDS interface panel be used for compact smart home touch controllers?

While possible, an LVDS interface requires more PCB traces and larger connectors. For units under 5 inches, a MIPI DSI or SPI interface is preferred because it reduces pin counts and lowers EMI emissions near internal Wi-Fi antennas.

Q2: What is the typical lead time for custom cover-glass touch integrations?

Modifying the cover glass shape, thickness, or logo printing requires a 3 to 4-week tooling validation cycle. Bulk manufacturing for customized touch-and-display assemblies generally ranges from 6 to 8 weeks.

Q3: How do we prevent display burn-in on home automation panels that display static text?

Implement firmware-level pixel-shifting routines and ensure the scalar board adjusts the Vcom voltage precisely. Sourcing panels through our Consumer Electronics matrix ensures the liquid crystal properties minimize residual charge accumulation.
